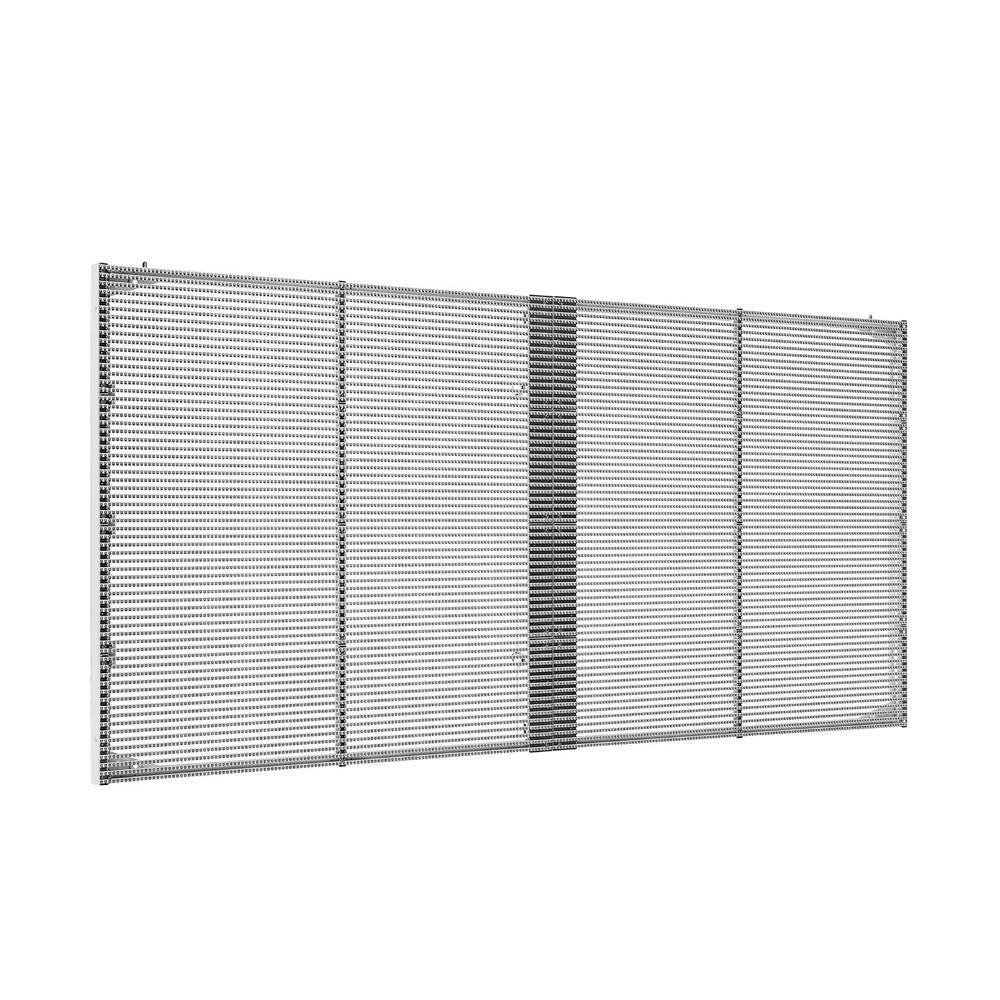

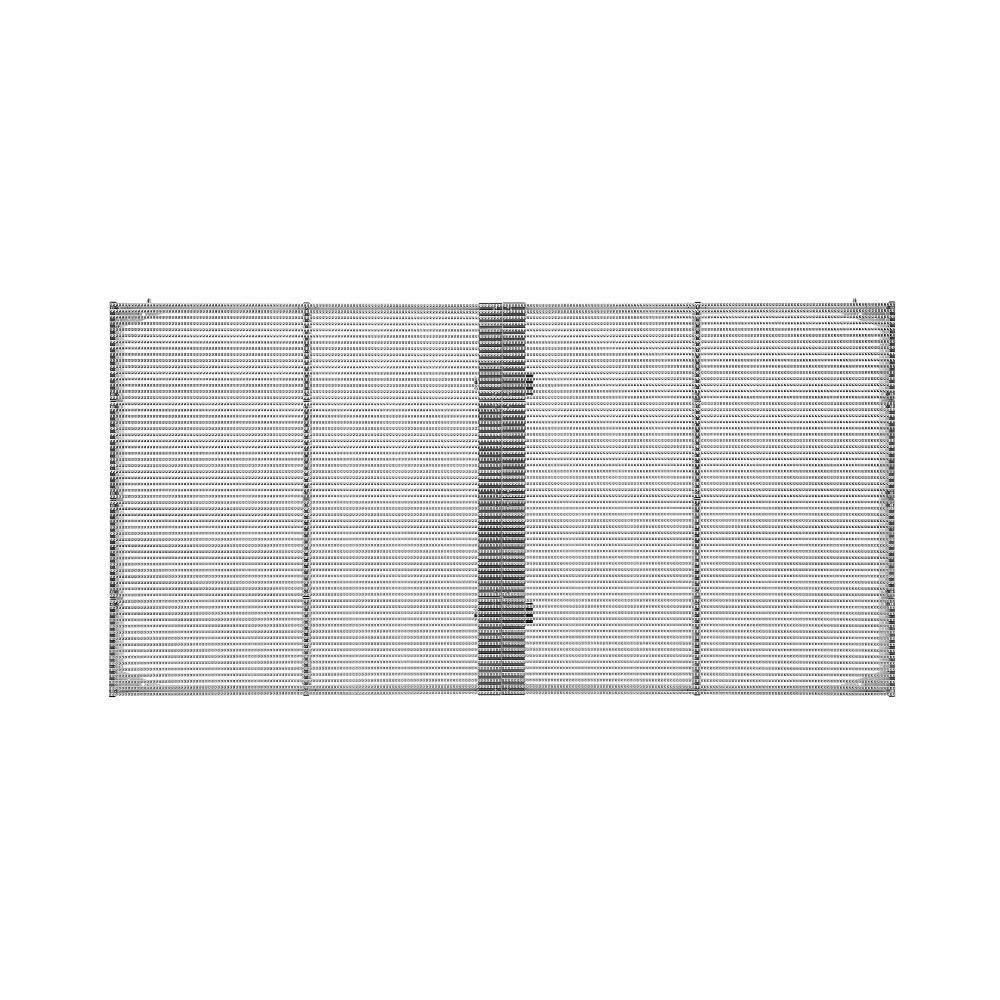

Indoor Fixed Transparent Screen

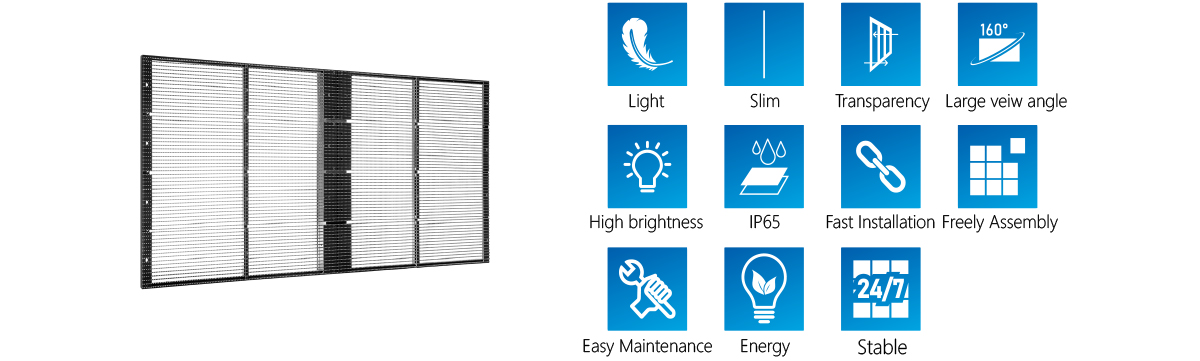

Product Feature:
● Supported customized cabinet.
● Optional color: black ｏｒ white.
● High transparent rate, the highest can reach 80%.
● Slim cabinet, space saving; light weight, no need to change architectural structure，adapt to different installation place.
● Environmental Projection: no need air-con.

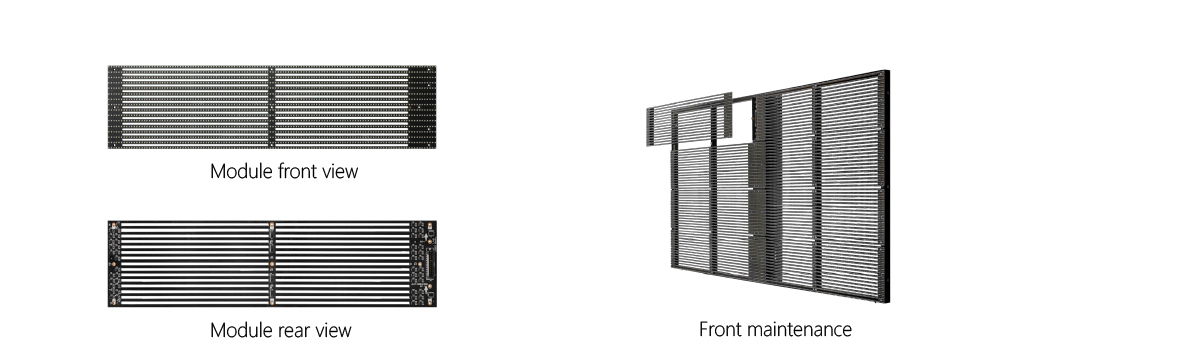

● Easy maintenance: fast replaced module, support front and rear service.
● Stacking, hanging and fixed installation are supported.
● GOB surface is for option, what can reach IP43 and lamp protected.
These transparent screens are specifically used in mobile shops, shopping mall and retail chain store. Such screen is an ideal selection if you want light to come inside of building while LED advertising. Let’s take a look on some of the prominent features of this screen:
1. Additionally, excellent Translucency and Infinite Probabilities
Indoor LED screen is established on optimistic lighting technology, its lofty translucency is able to attain 80%
2. High brightness
Maximum brightness up to 4500-5500nits, even if inaugurated in a mirror window uncovered to direct sunshine, can be glimpsed clearly.
3. Considerable specifications to harmonize to several installation environments
The indoor LED screen display proposes the flexibility of the structure, and shape to deliver a genuinely available and inspirational inauguration.

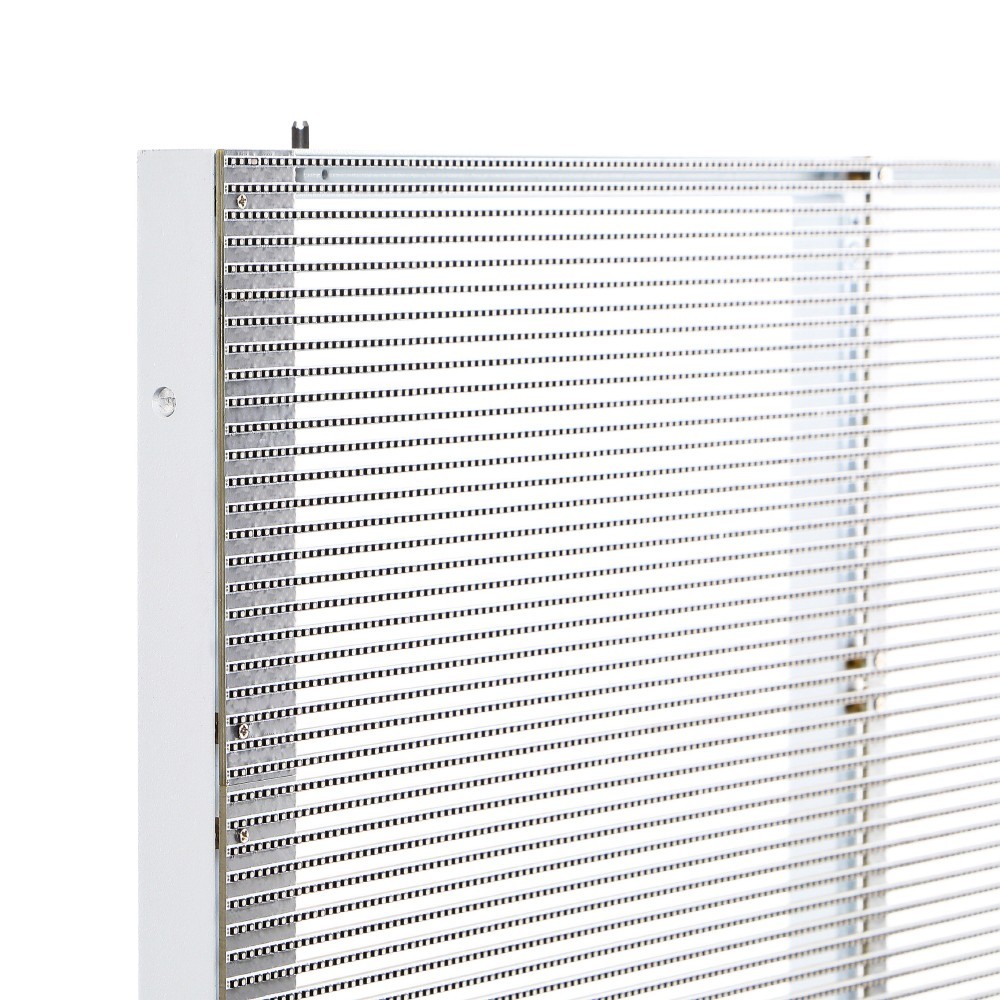

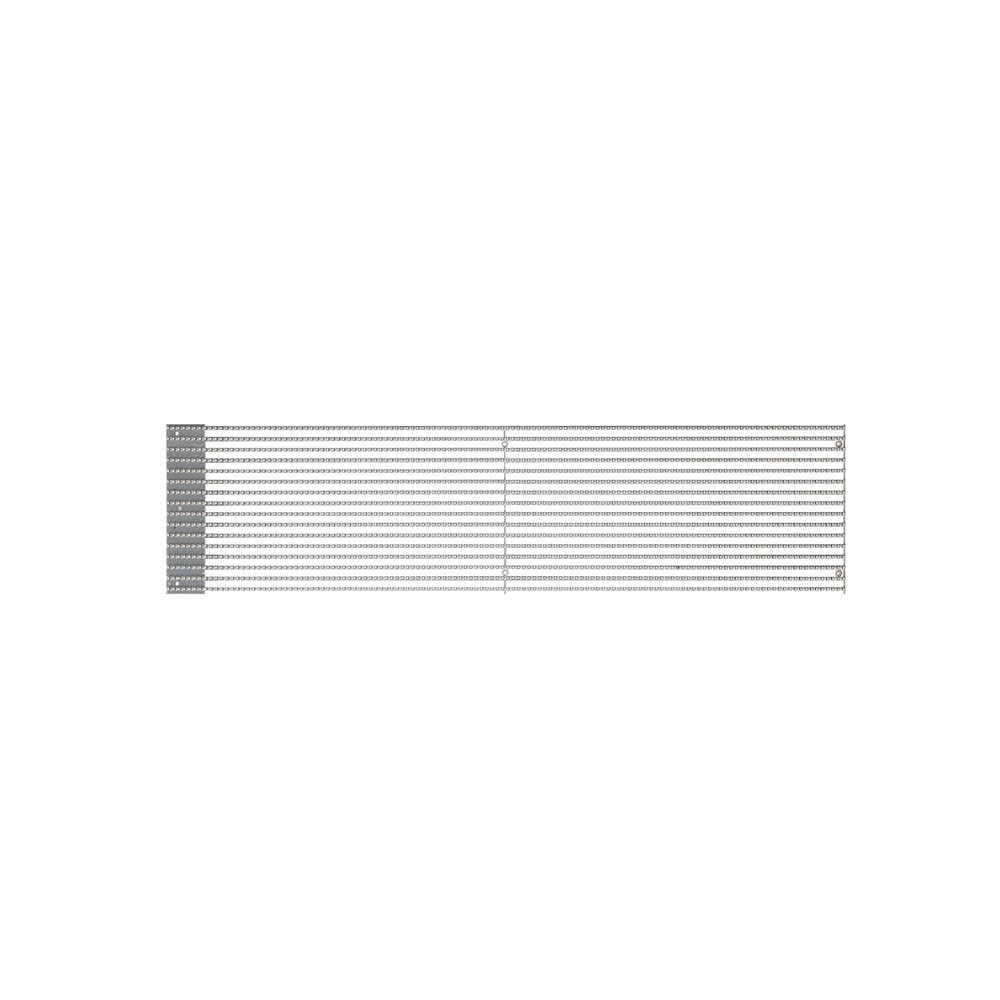

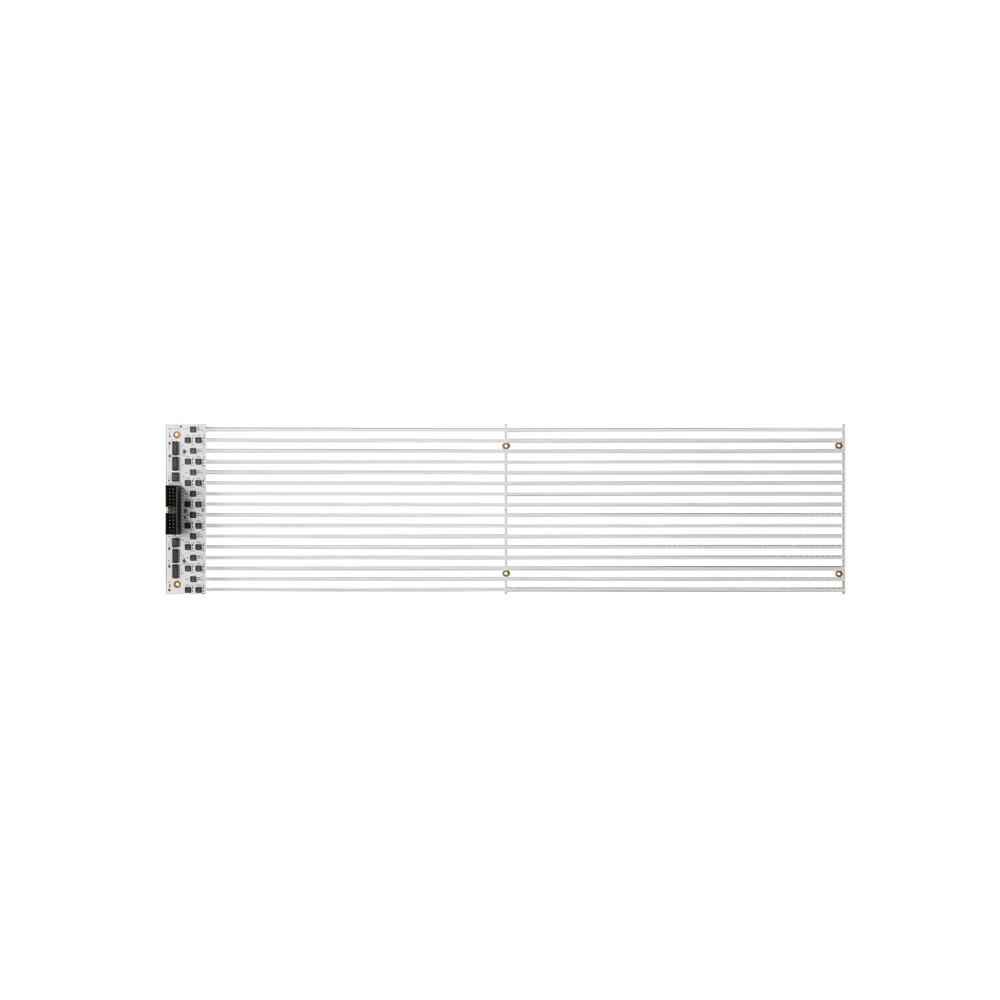

4. Modular design
Susceptible for maintenance, modules can be individually replaced to reduce supervision expenses.

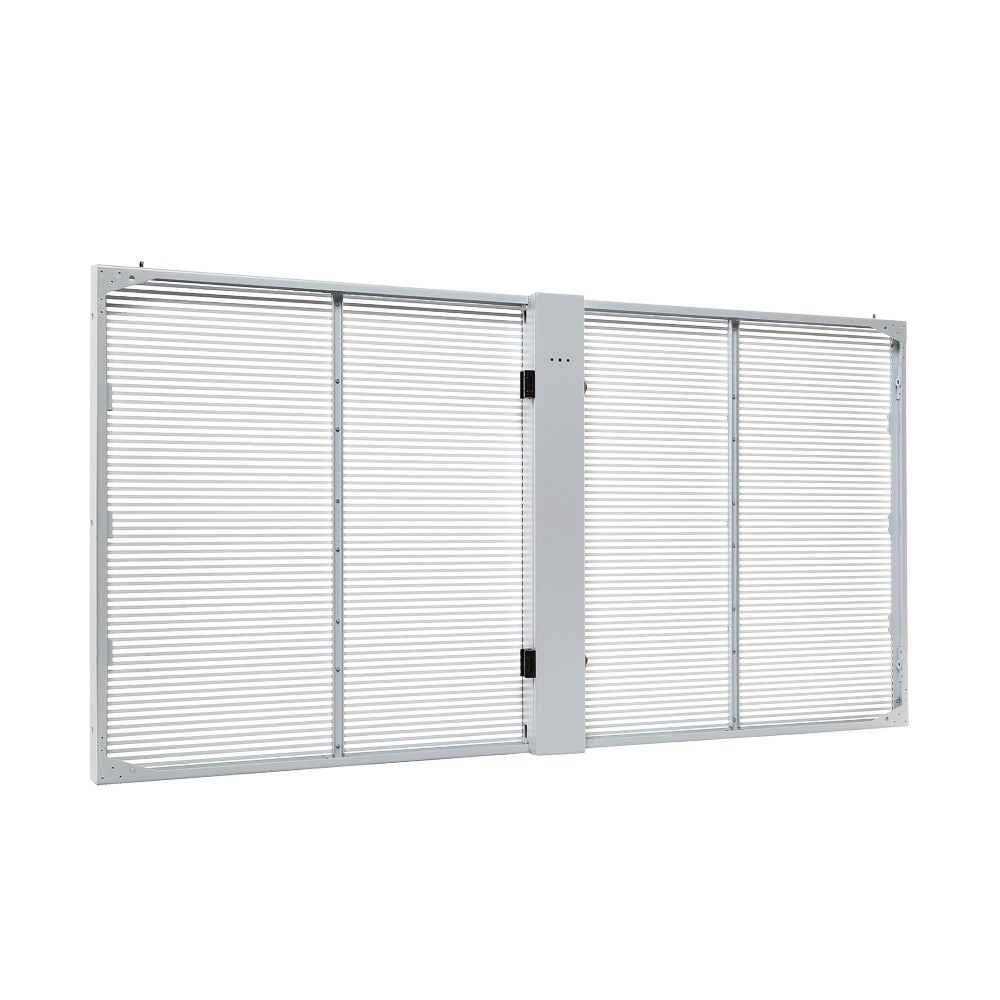

5. Light And Durable Aluminum Architecture
Aluminum cabinet architecture affects heat lavishness, surveillance and longevity. Vitality is barely 11 kg per square meter, and fixtures on the cabinet are consolidated to boost readability and conserve the cabinet from deterioration.
6. Flexible Frame Design
It consents curled installation to fit the project prerequisites at the installation site.
7. Simple sustain installation
Quick-lock disassembling, merely one individual can maintain if unassisted without needing help.
8. Conserves labor expenses
One can rapidly unlock and shut the power box with a single hand.
Parameter:
Model | WLT-2.6 | WLT-3.9 | WLT-5.2 | WLT-10.4 | WLT-15.6 |
Pixel Pitch(mm) | H:2.6 V:5.2 | H:3.9 V:7.8 | H:5.2 V:10.4 | H:10.4 V:10.4 | H:15.6 V:15.6 |
Transparency Rate | 55% | 75% | 65% | 65% | 80% |
Resolution(dot/ m²) | 73728 | 32768 | 18432 | 9216 | 4096 |
Cabinet Resolution | 384x192 | 256x128 | 192x96 | 96x96 | 64x64 |
Weight(Kg/ m²) | 4.5 | 5.5 | 5.5 | 5.5 | 6.5 |
Refresh(Hz) | 5120 | 5120 | 3840 | 3840 | 3840 |
Driving IC | ICN2153 | ICN2153 | MY9866 | MY9866 | ICN2038S |
Scan Mode | 1/12 | 1/8 | 1/4 | 1/4 | 1/2 |
LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
Brightness(cd/ m²) | ≥ 4500 |
Lamp Life Span | ≥ 100 000 hours |
Pixel Compose | RGB all in one |
Grey Scale | 14bit |
Max Power Consumption(W/ m²) | 800 |
Ave. Power Consumption(W/ m²) | 260 |
LED Control System | Mooncell T120/NOVA |
Connection & Control | WiFi / DVI / HDMI / DP / USB/RJ45 / Remote Internet control |
IP Level | IP30 |
Clean Ghosting | Yes |
Input Power | AC100~240V 50/60Hz |
Module Input Power | DC4.7~5V ±0.2V |
Cabinet Size(mm) | 1000x500x80 |
Cabinet Material | Aluminum Profile |
Maintenance | Front Maintenance |
Working Tempareture and humidity | Temperature : -10~40℃ ; Humidity: 10%-90%, non-condensing |
Installation | Hanging （vertical 20pcs cabinet) 10 ）/ Stacking / Fixed installation ) |

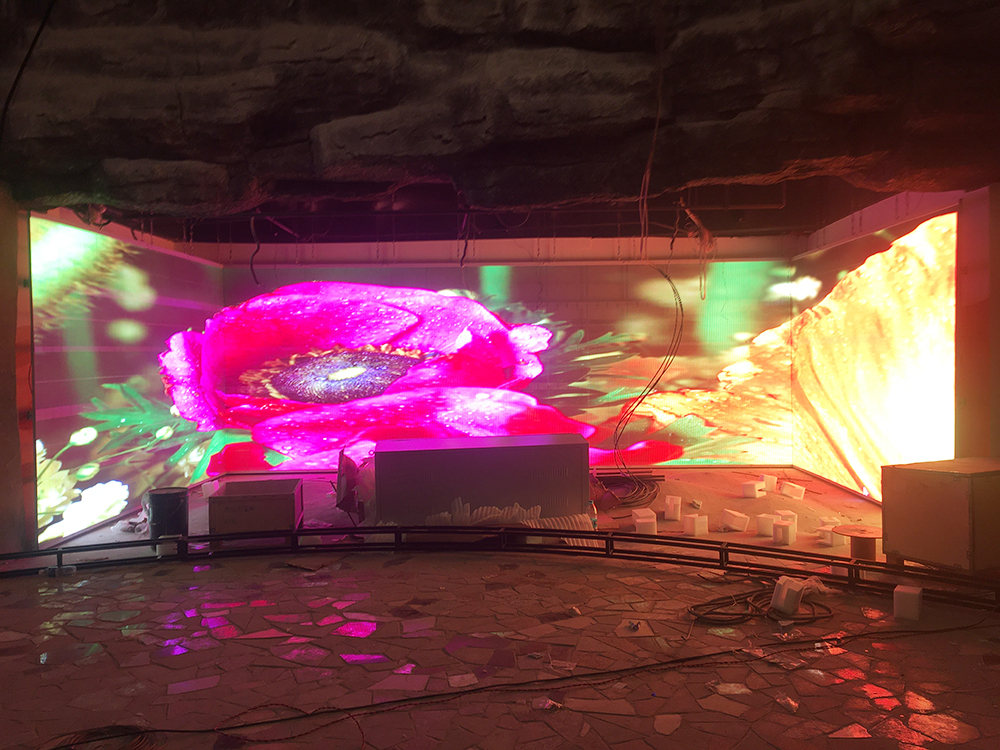

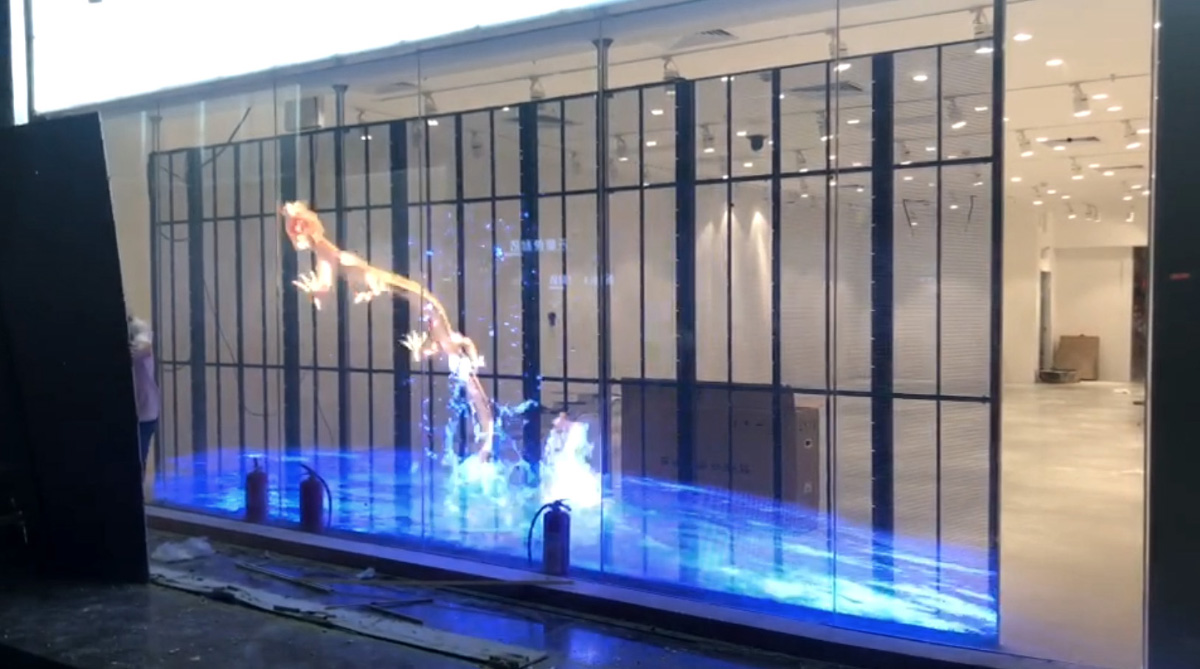

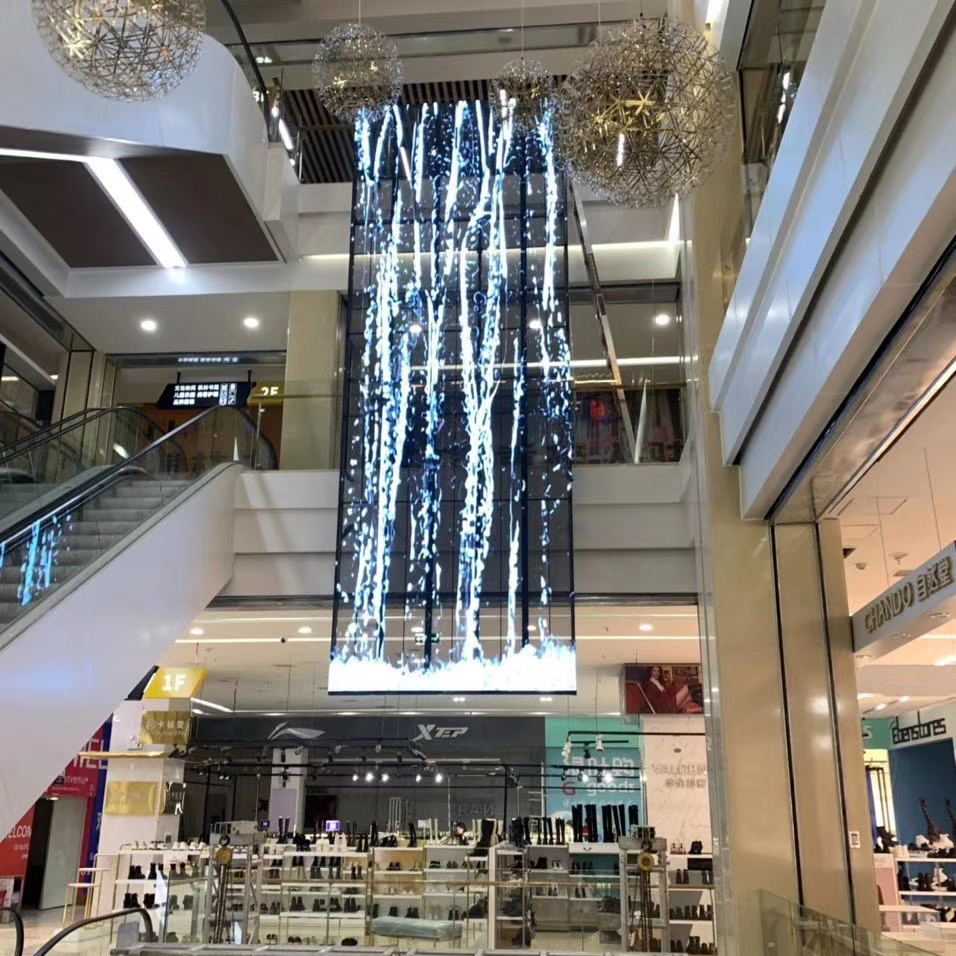

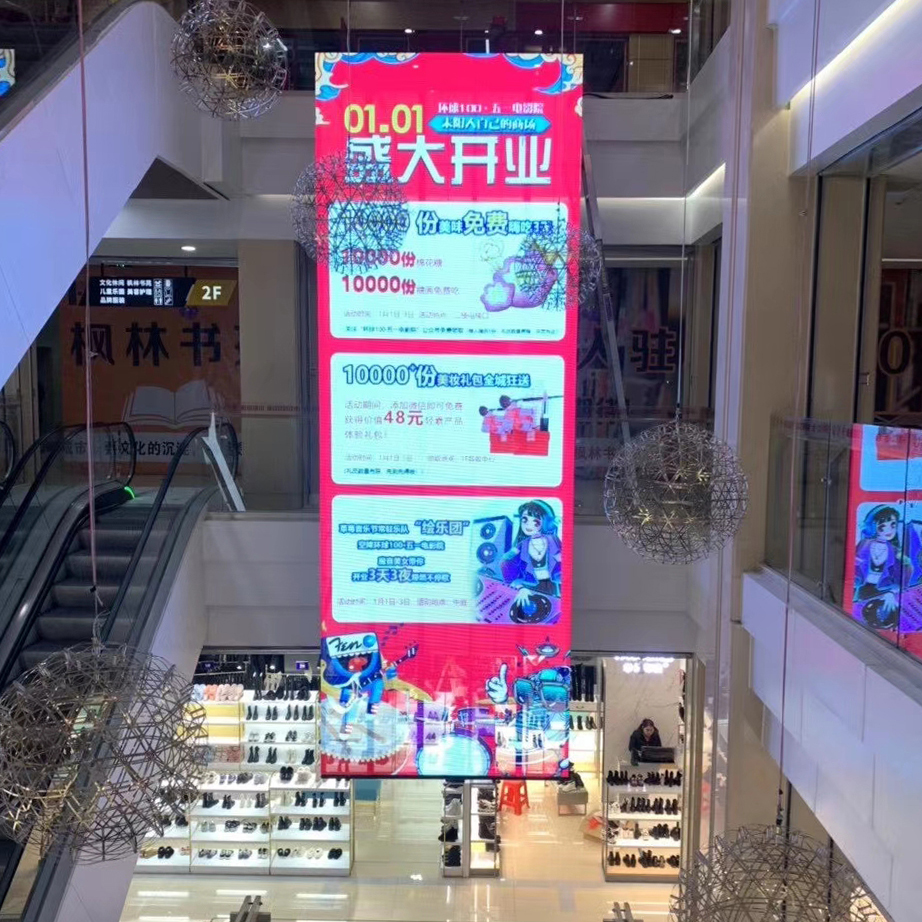

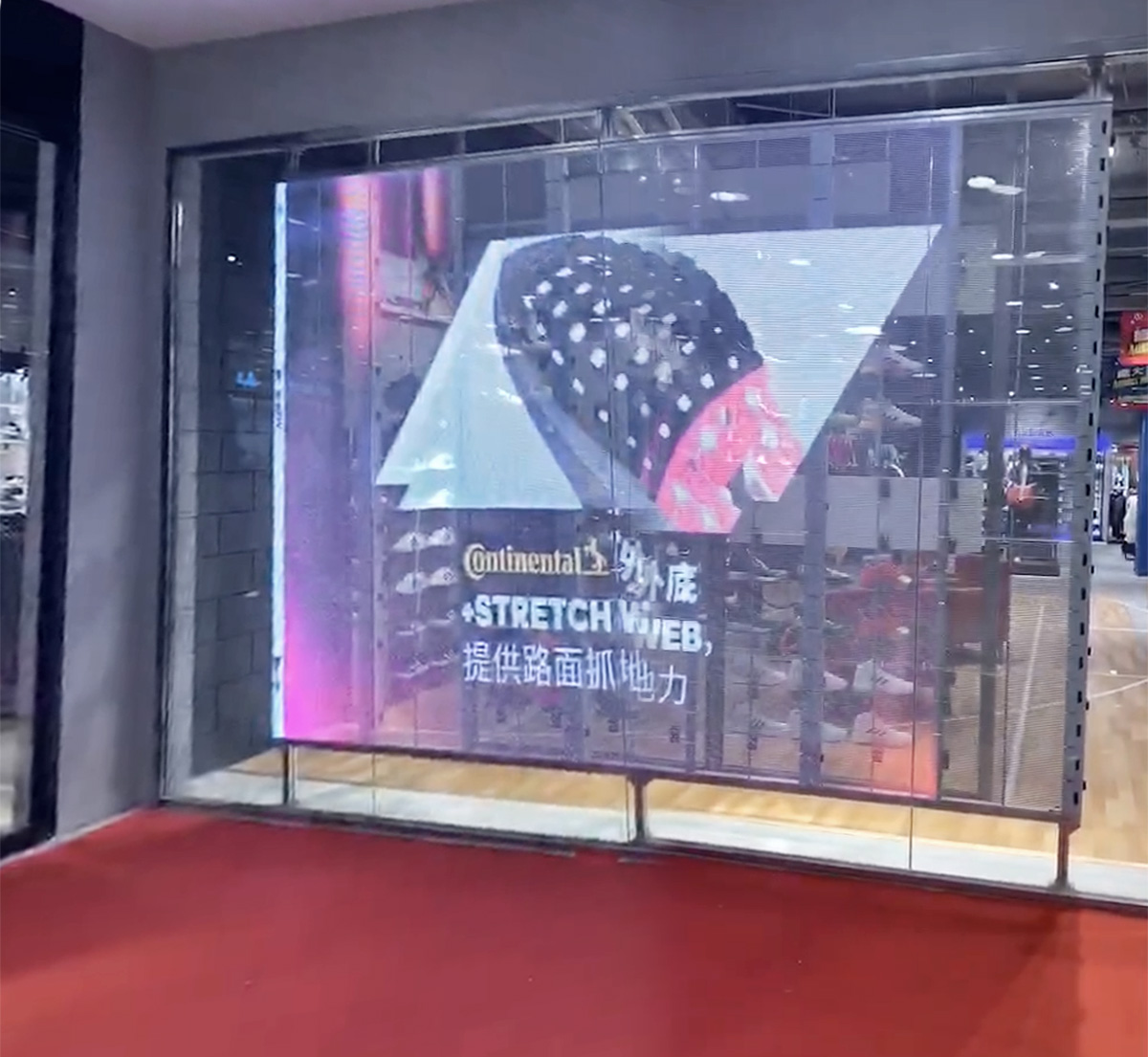

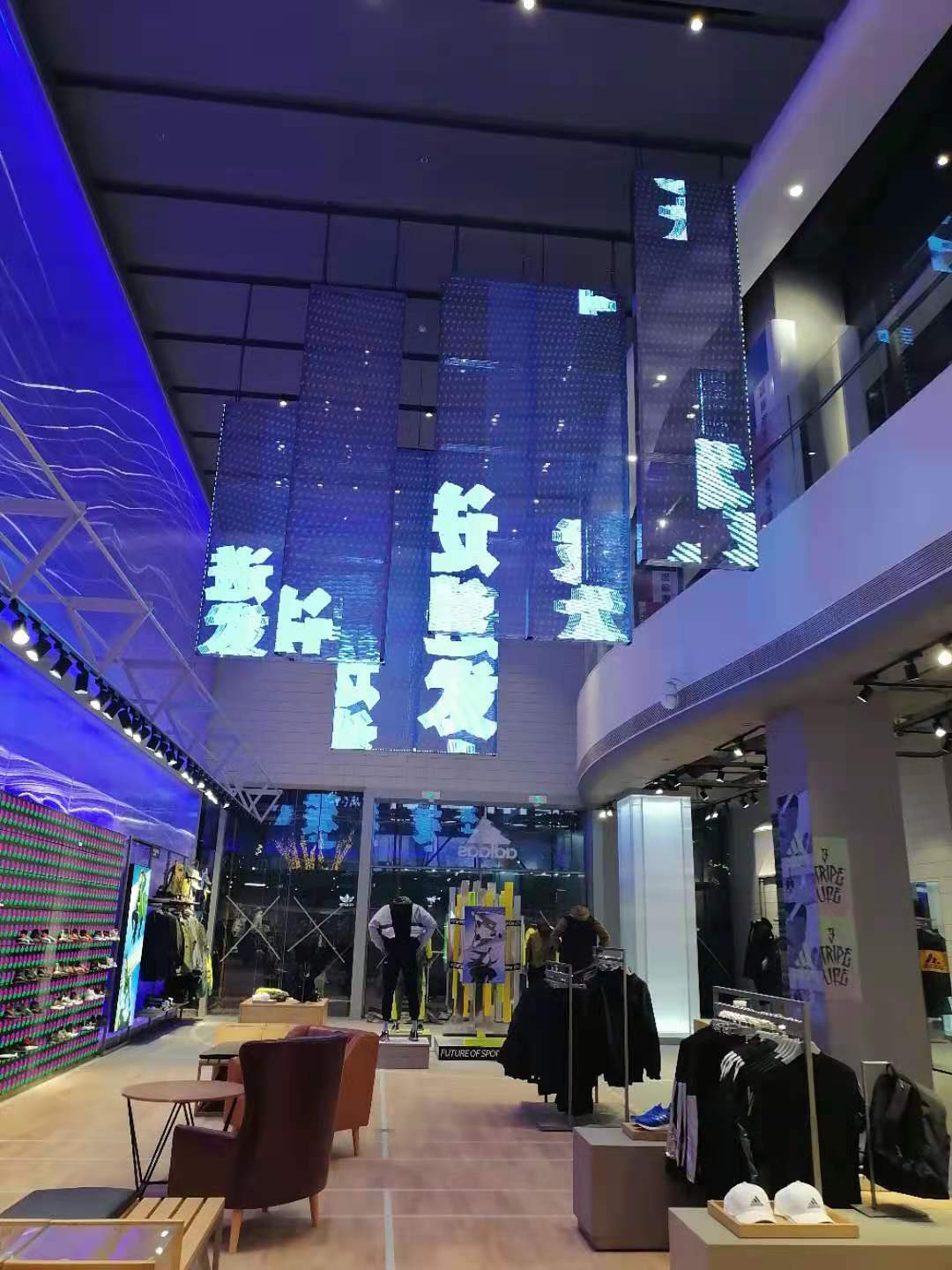

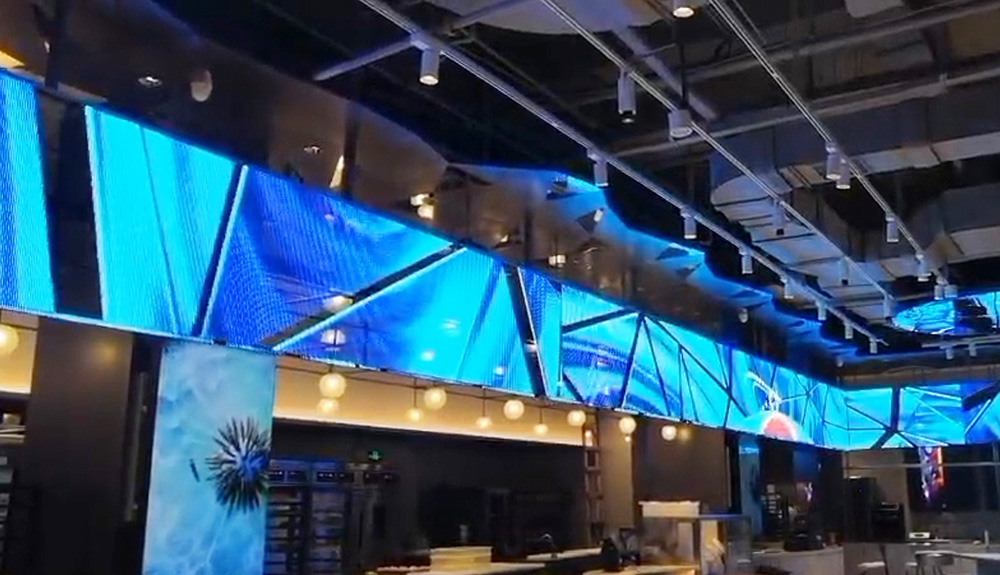

Project cases:
