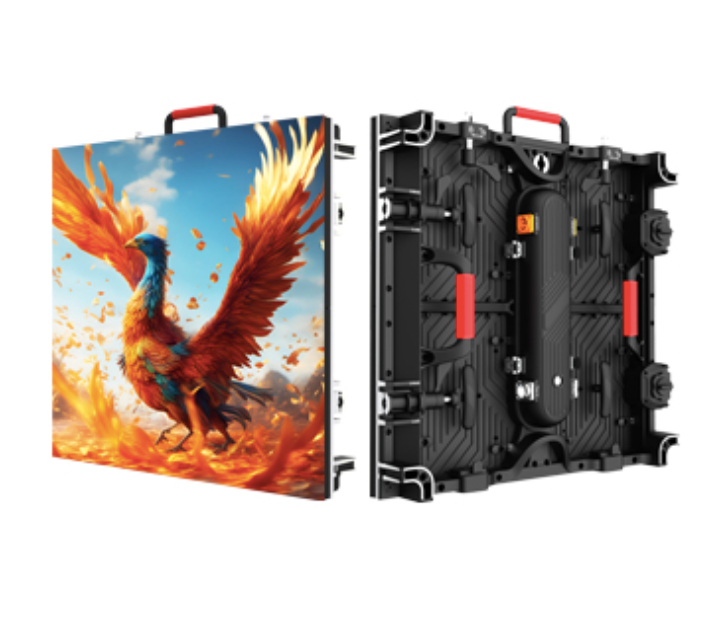

Wanliang MIP LED Display features: High Brightness, Modular Design, High Protection and Easy Maintenance for Micro LED Video Wall

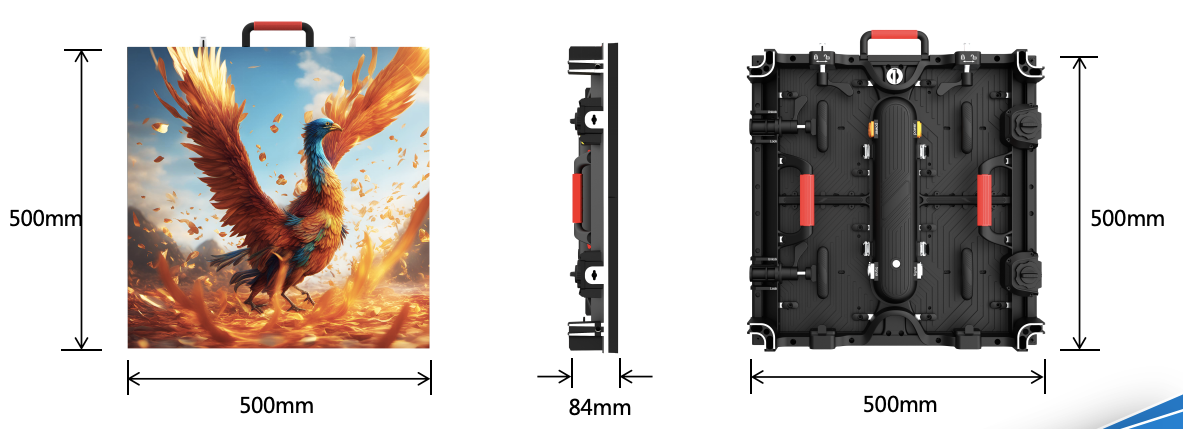

Dimension
MIP New Packaging Technology
Adopting the MIP new packaging technology, the product’s brightness and contrast are greatly improved, color uniformity is better, and at the same time, stability and reliability are comprehensively enhanced.Ultra-Wide 170° Viewing Angle.Ultra-Black Surface.Unrivaled 1,000,000:1 contrast ratio for deep blacks.

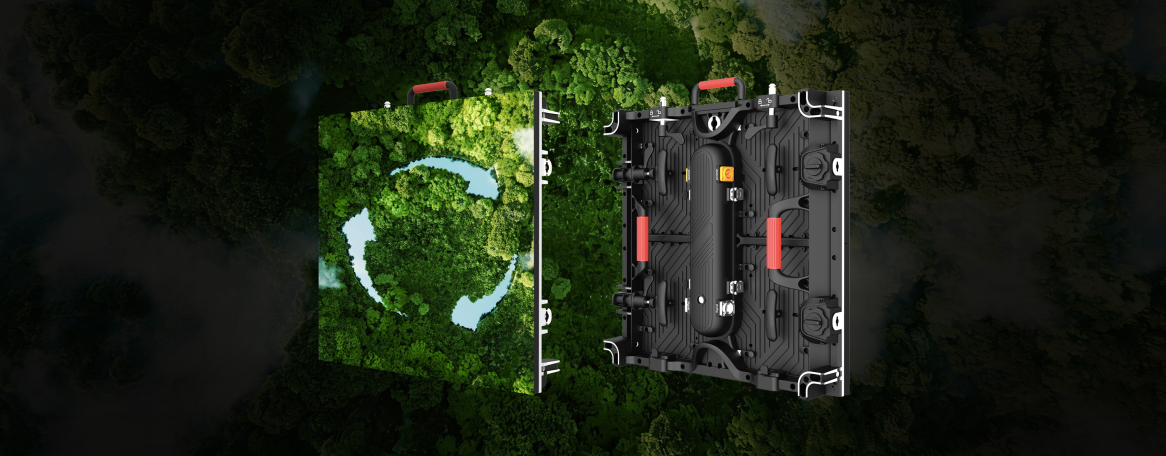

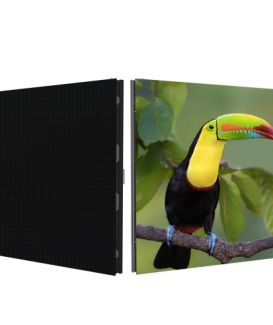

Common Cathode Energy Saving
Energy Efficiency & Enhanced Durability.Adopting advanced common cathode driving technology, it achieves precise power supply, significantly reduces energy consumption, and saves 30% of energy.
Brighter in Strong Light
Boasting a high brightness of 3000-4000 nits, the screen delivers clear and sharp images even under scorching sunlight, capturing attention with striking visuals and meeting the demands of all harsh outdoor scenarios.

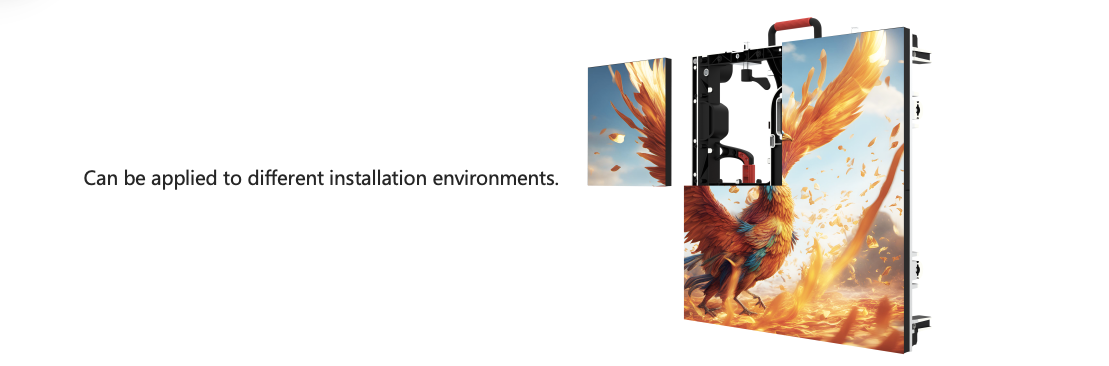

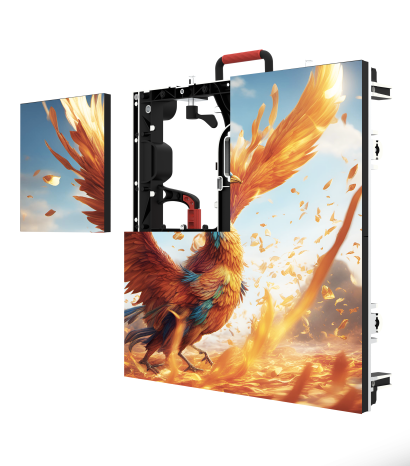

Front maintenance
High Maintainability.Lower maintenance costs with single-pixel repairability..Can be applied to different installation environment

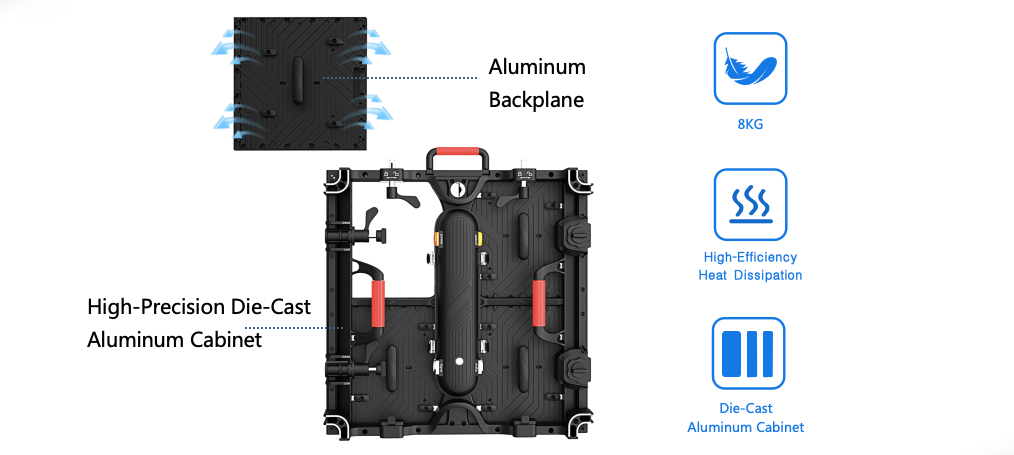

Aluminum B ackplane
Adopting lightweight and high-strength aluminum material, it combines excellent mechanical performance with strong thermal conductivity. Featuring outstanding texture, efficient heat dissipation and extremely strong corrosion resistance, it effectively withstands harsh outdoor environments, boasts a long service life, and is environmentally friendly and recyclable.

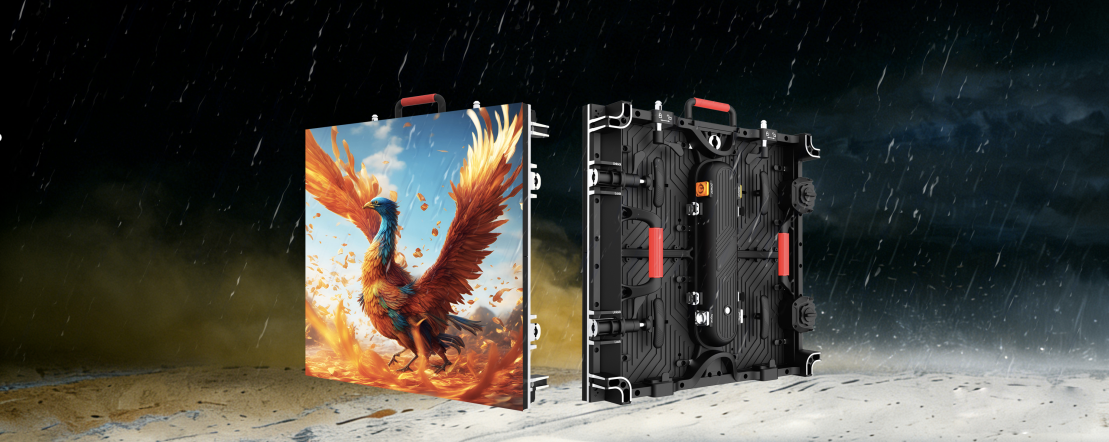

High Protection
With an IP65 high protection rating, it features extremely strong corrosion resistance and effectively withstands erosion from outdoor salt spray, wind and rain, etc.

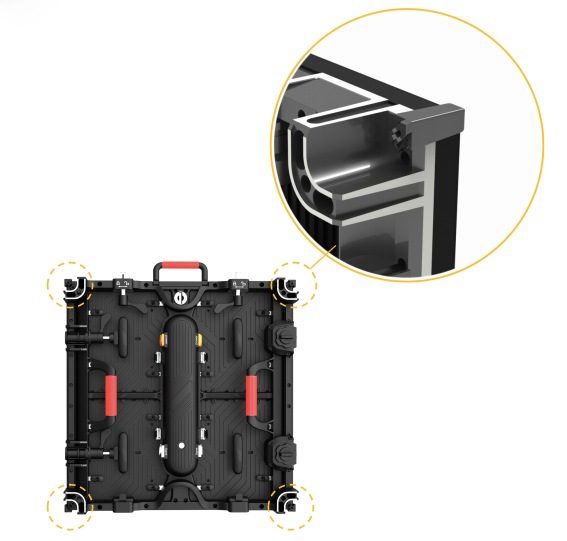

Corner Protection
The enclosure is equipped with protective corners, combined with anti-collision features at the bottom, providing comprehensive protection for the modules.

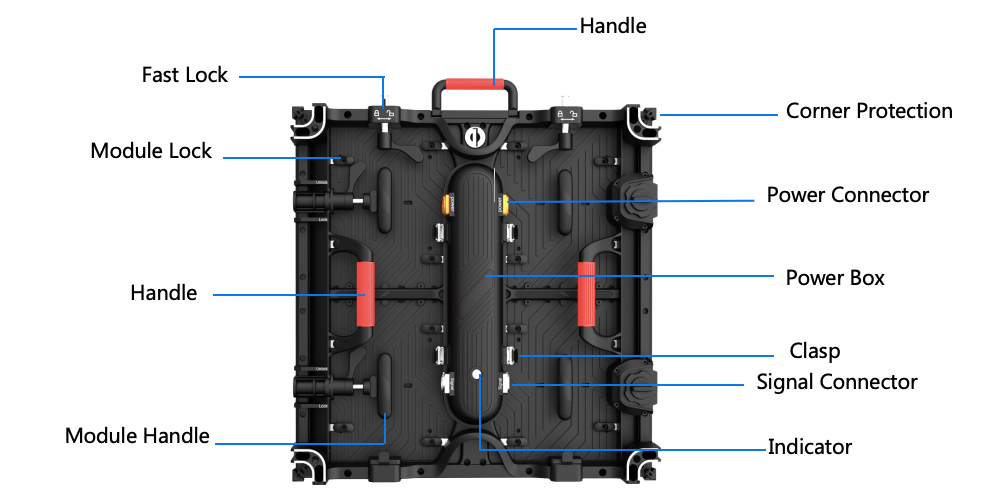

Schematic

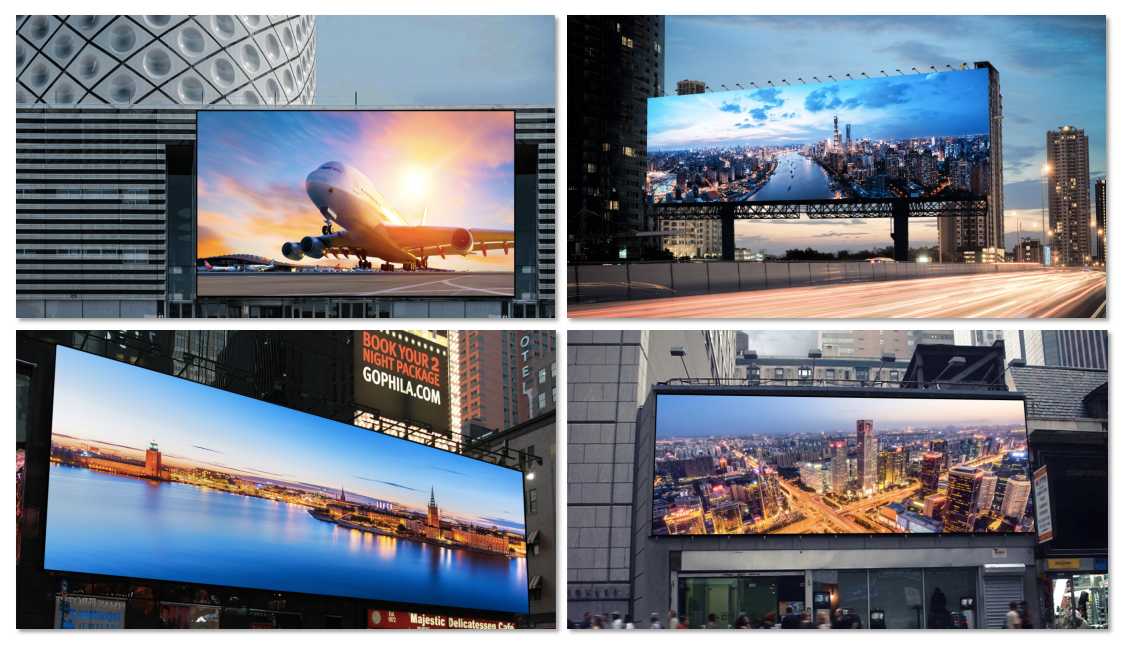

Application
Specification
| Pixel Pitch | P1.25 | P1.3 | P1.5625 | P1.95 |
| LED Type | MIP0505 | MIP0606 | MIP0606 | MIP0606 |
| Physical Density(Dot/㎡) | 640000 | 589824 | 409600 | 262144 |
| Module Resolution | 200×200 | 192×192 | 160×160 | 128×128 |
| Module Size(WXH) | 250×250 | 250×250 | 250×250 | 250×250 |
| Cabinet Size(mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Resolution | 400×400 | 384×384 | 320×320 | 256×256 |
| Module Quantity(WXH) | 2×2 | 2×2 | 2×2 | 2×2 |
| Weight(kg) | 8 | 8 | 8 | 8 |
| Maintenance | Front/rear Maintenance | Front/rear Maintenance | Front/rear Maintenance | Front/rear Maintenance |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Brightness(Nits) | 3000-4000 | 3000-4000 | 3000-4000 | 3000-4000 |
| Color Temperature(K) | 5000-12000 Optional | 5000-12000 Optional | 500012000 Optional | 5000-12000 Optional |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Viewing Distance | 3-50m | 3-100m | 4-150m | 4-150m |
| Contrast Ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Frequency | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/25 scan | 1/24 scan | 1/20 scan | 1/16 scan |
| Grey Scale | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| Max Power Com.(W/㎡) | 800 | 800 | 800 | 800 |
| Ave Power Com.(W/㎡) | 200-300 | 200-300 | 200-300 | 200-300 |
| IP Rate | IP65 | IP65 | IP65 | IP65 |
| Power Input | AC90-264V,47-63Hz |
| Working T/H (℃/RH) | -20~60℃/10%~85% |
| Storage T/H(℃/RH) | -20~60℃/10%~85% |
| Standard | CCC/CE/RoHS/FCC/CB/TUV/IEC |
