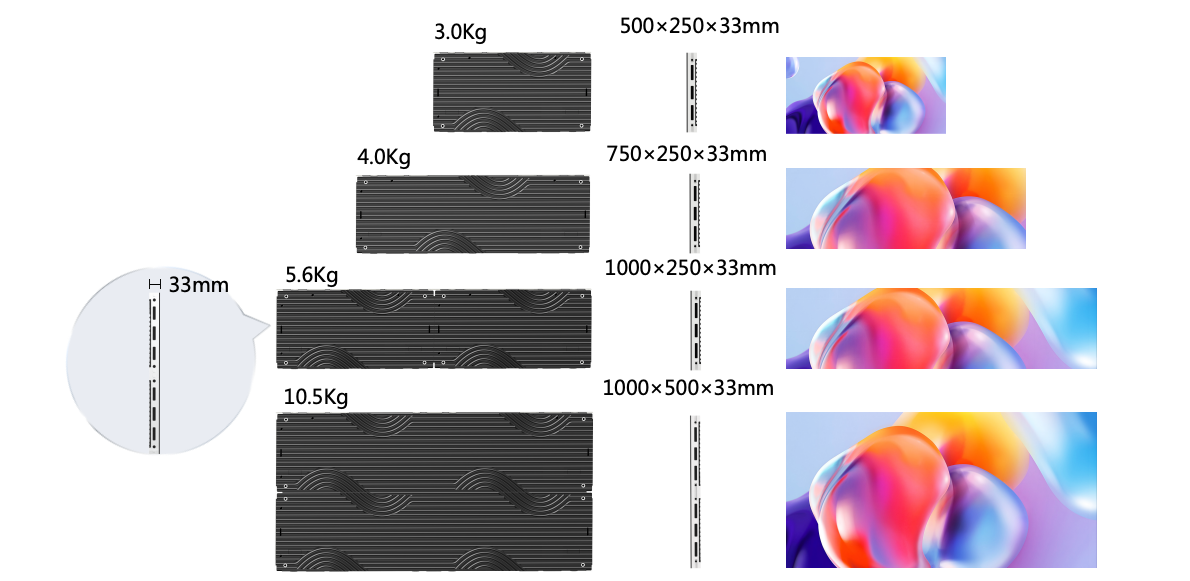

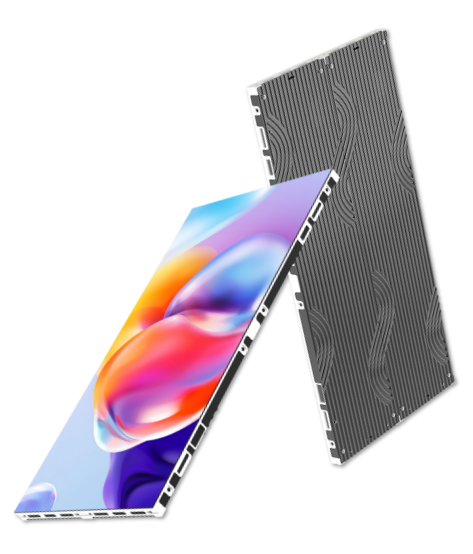

Cabinet Lightweight

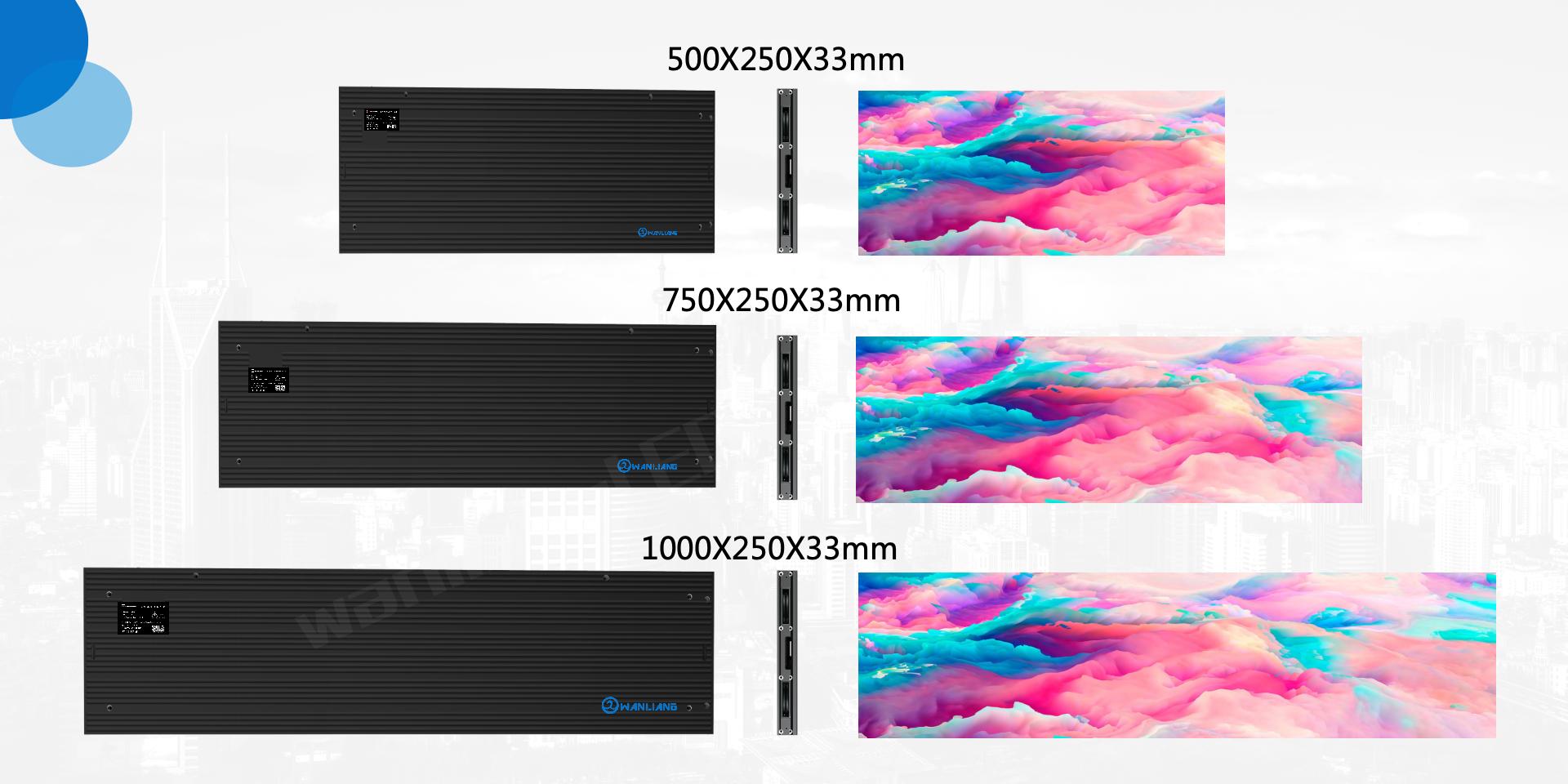

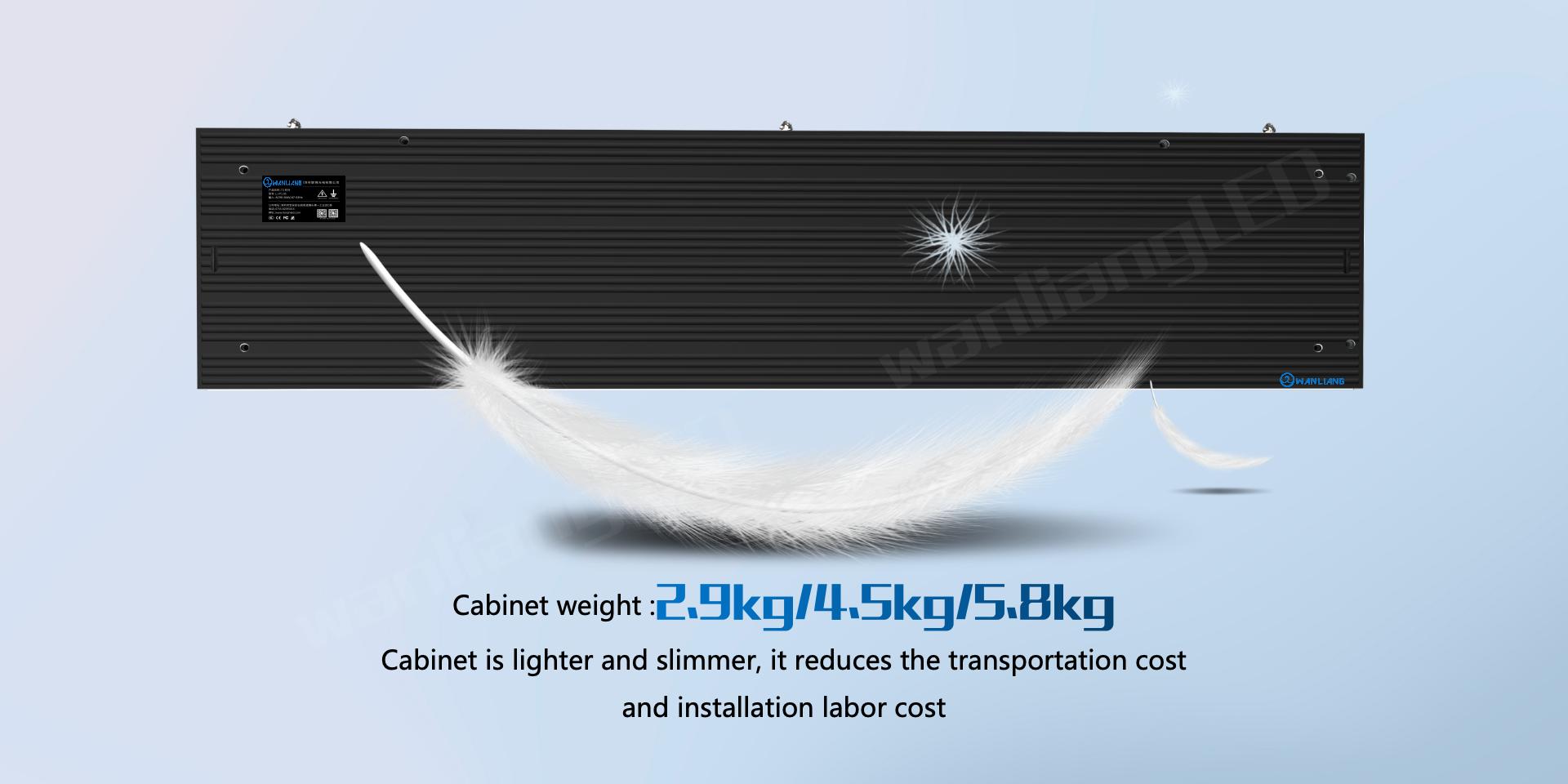

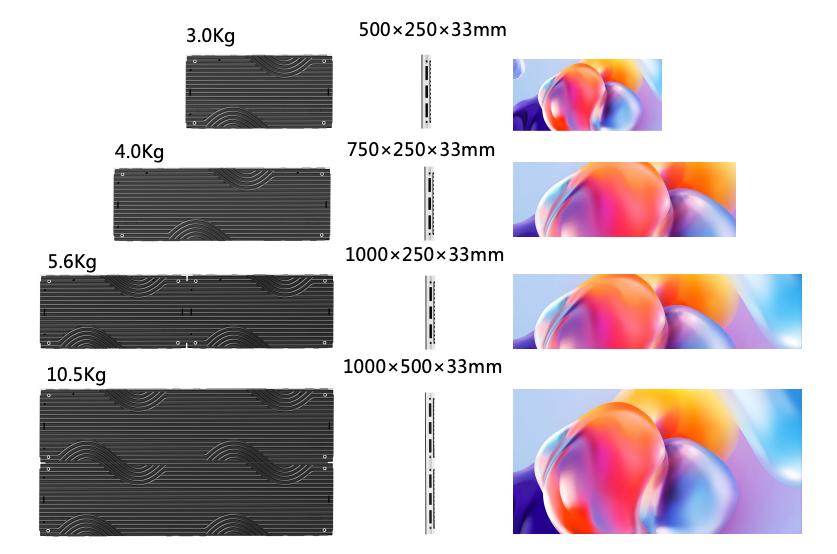

Cabinet weight :2.9kg/4.5kg/5.8kg
Cabinet is lighter and slimmer, it reduces the transportation cost and installation labor cost

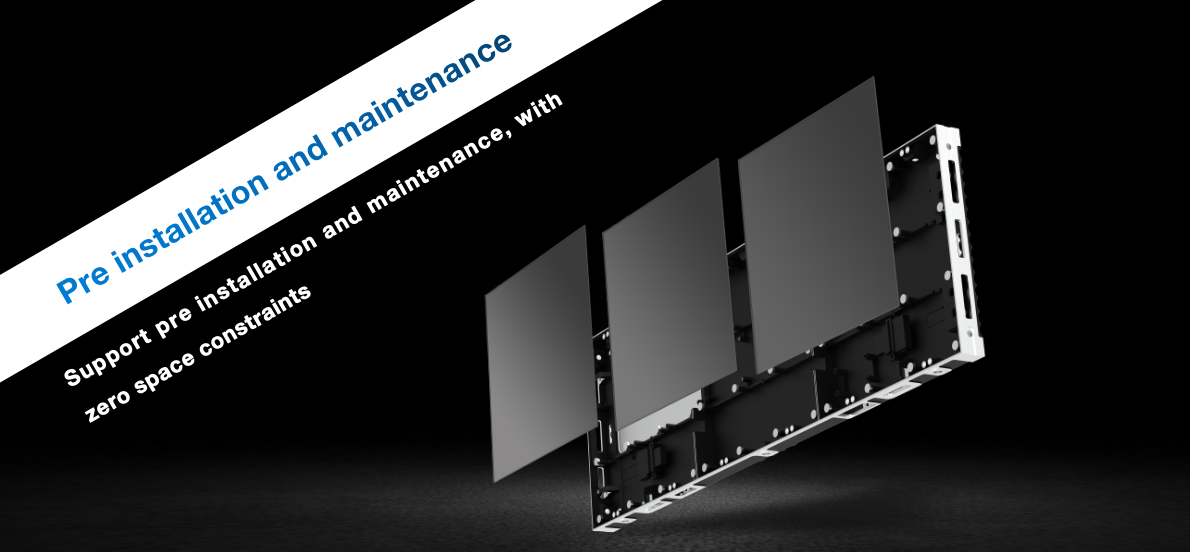

Front Access

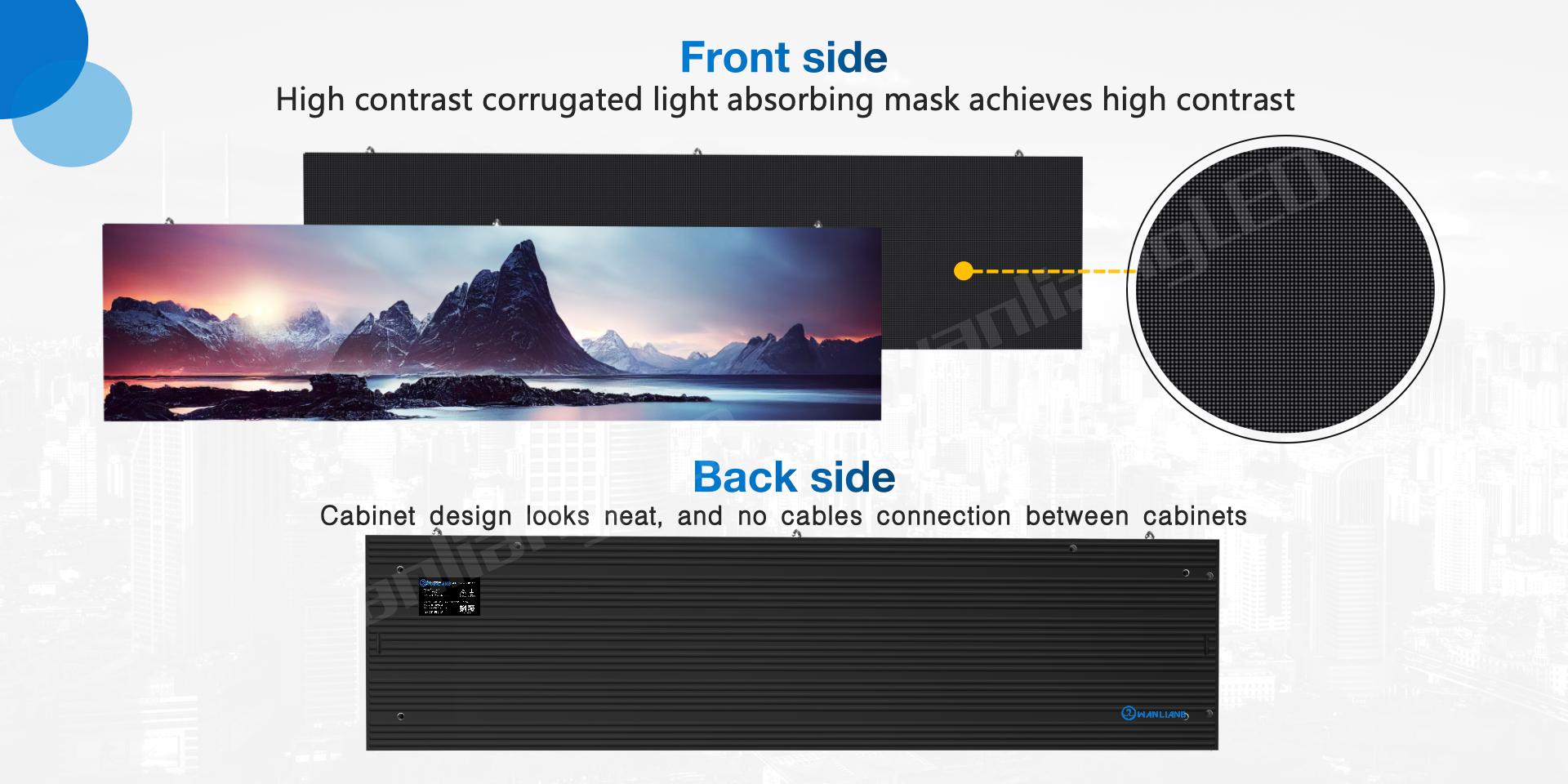

High contrast corrugated light absorbing mask achieves high contrast.Cabinet design looks neat, and no cables connection between cabinets.

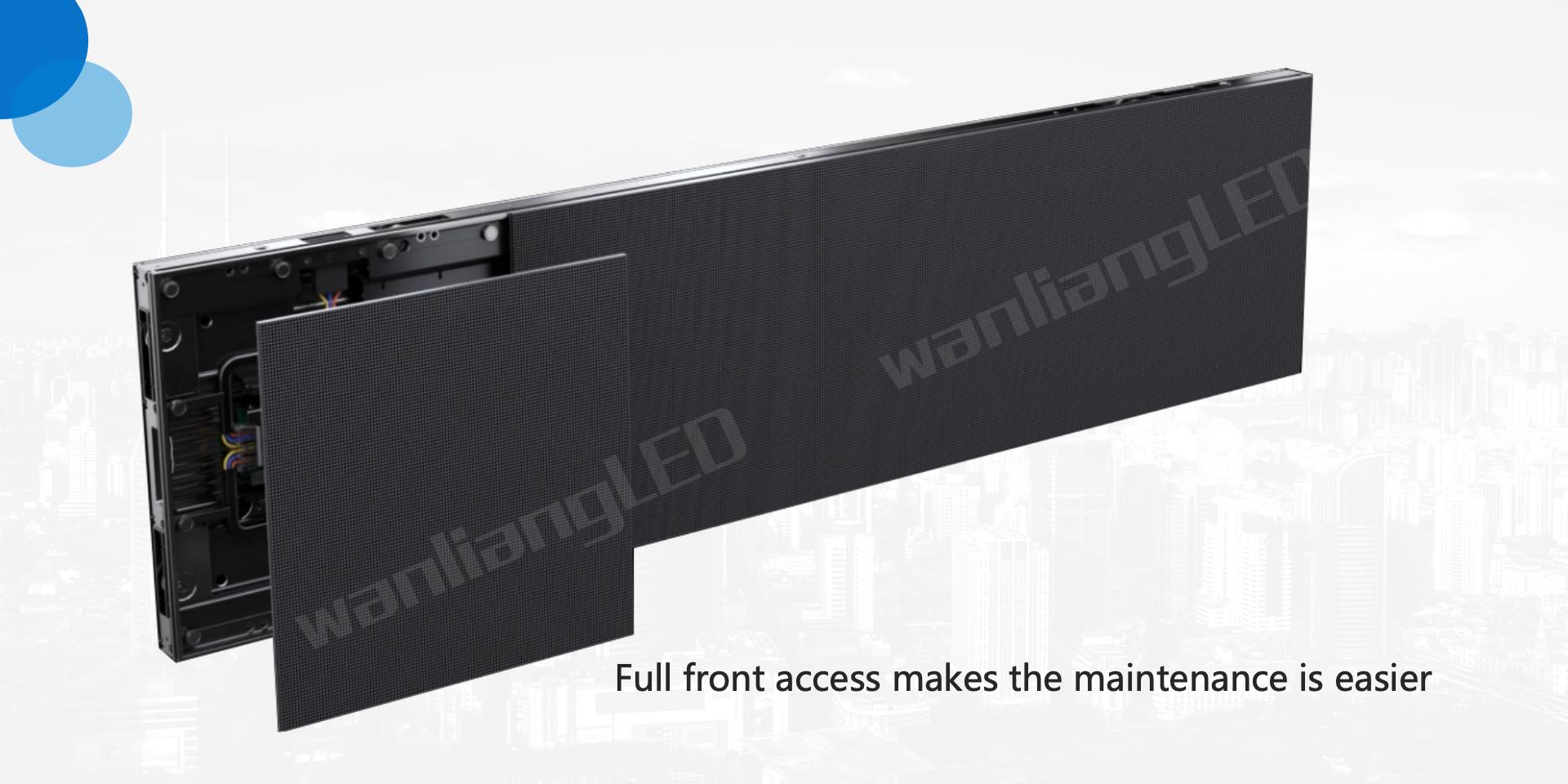

Full front access makes the maintenance is easier.

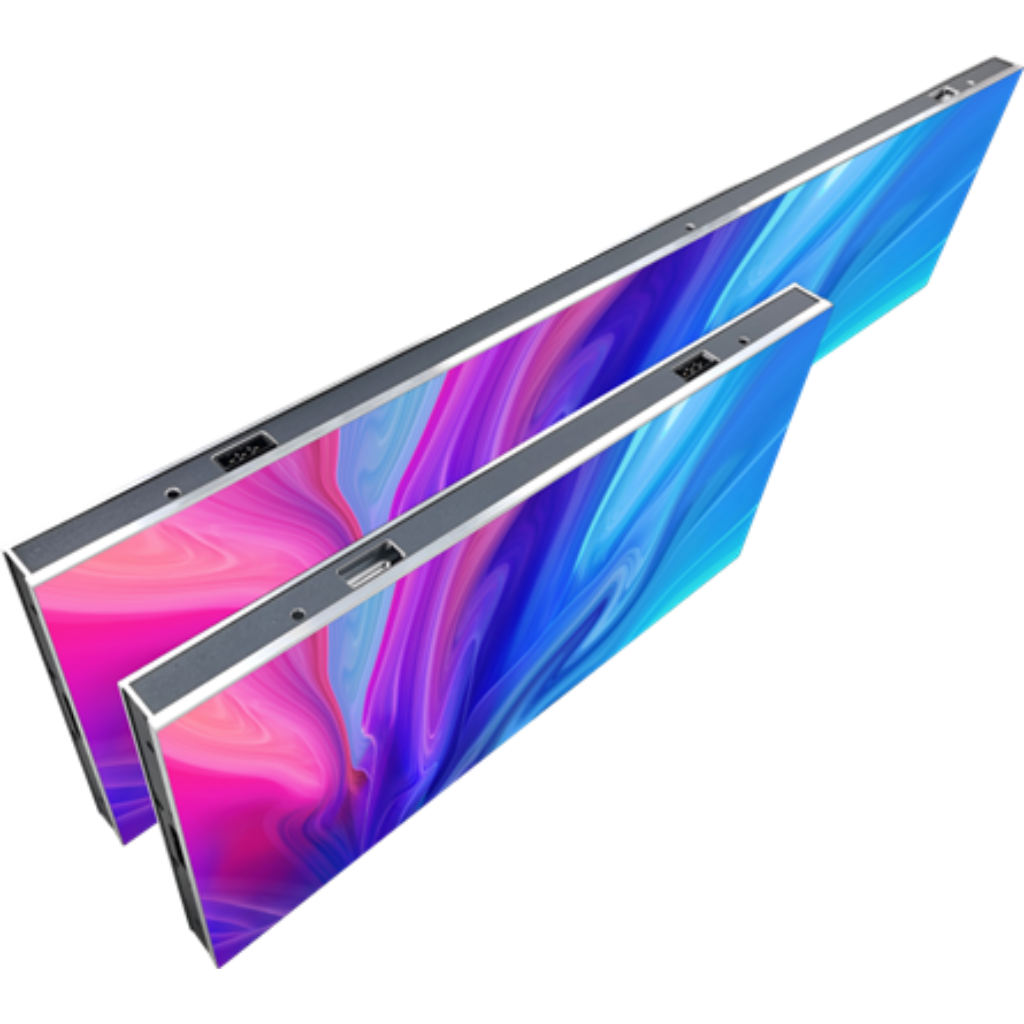

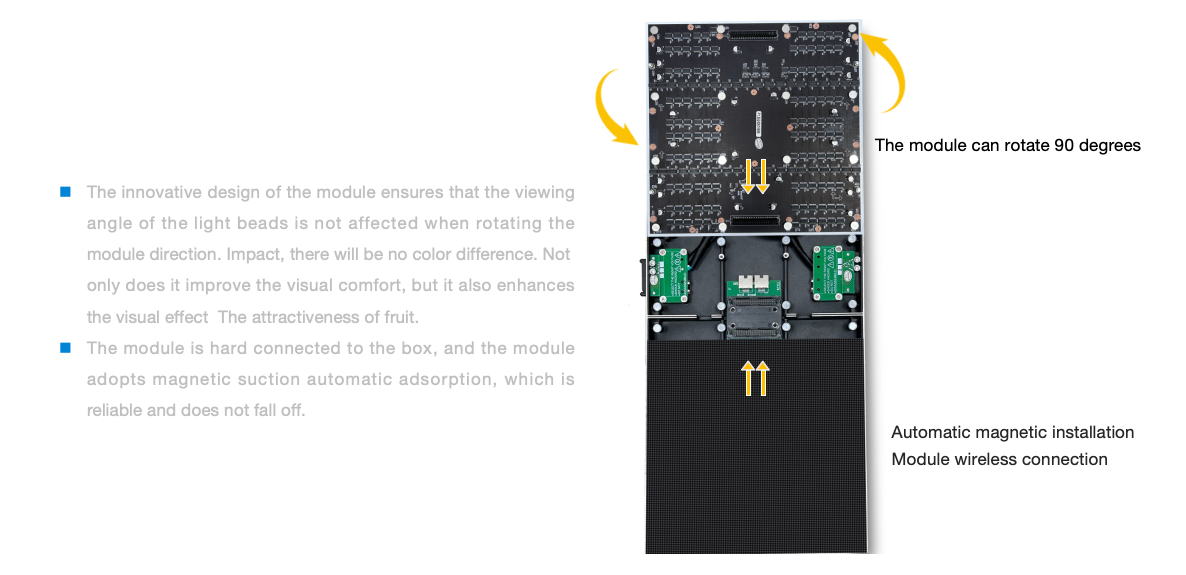

Hot Swapping · Wireless Connection

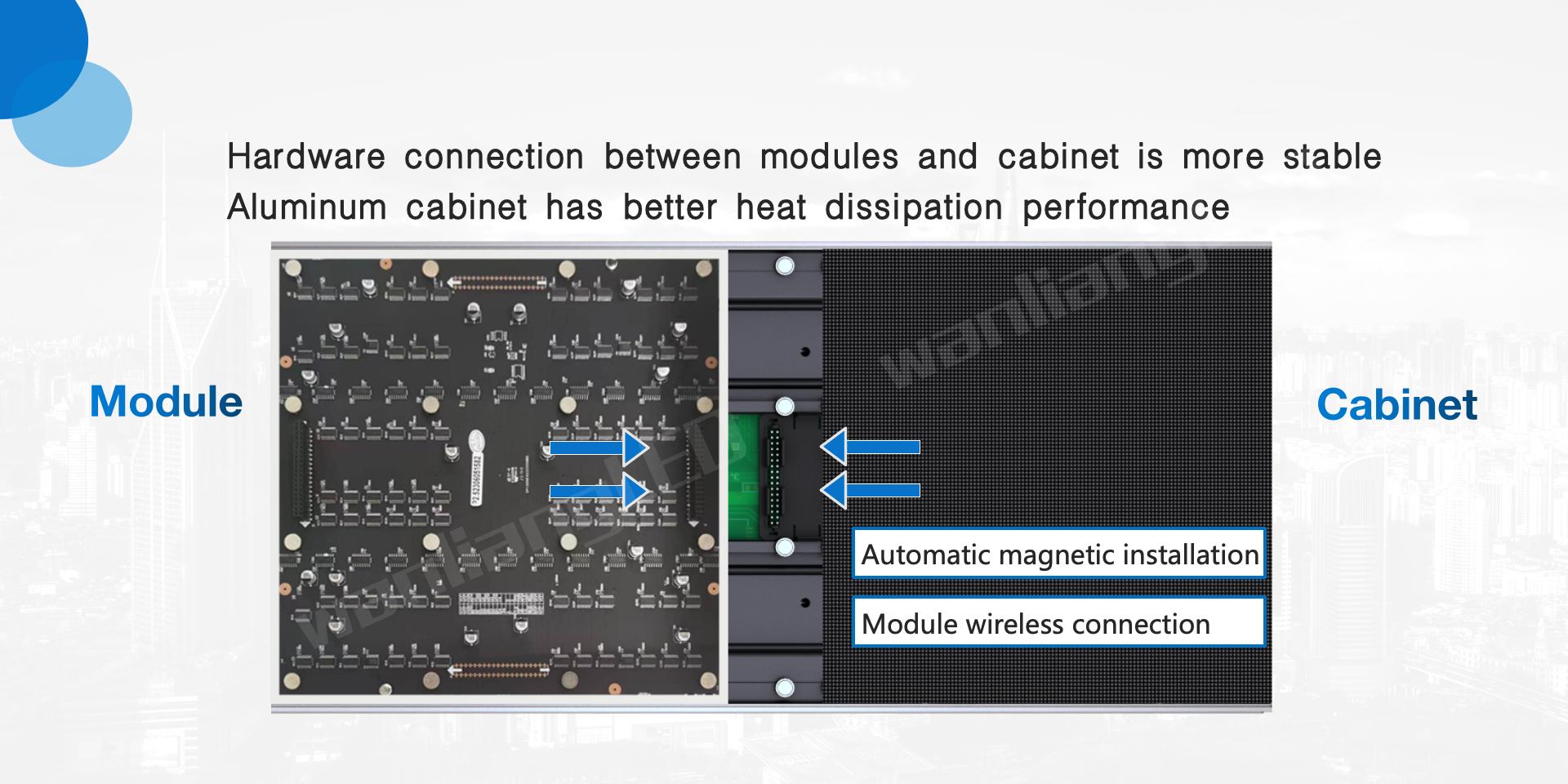

Hardware connection between modules and cabinet is more stable.
Aluminum cabinet has better heat dissipation performance.

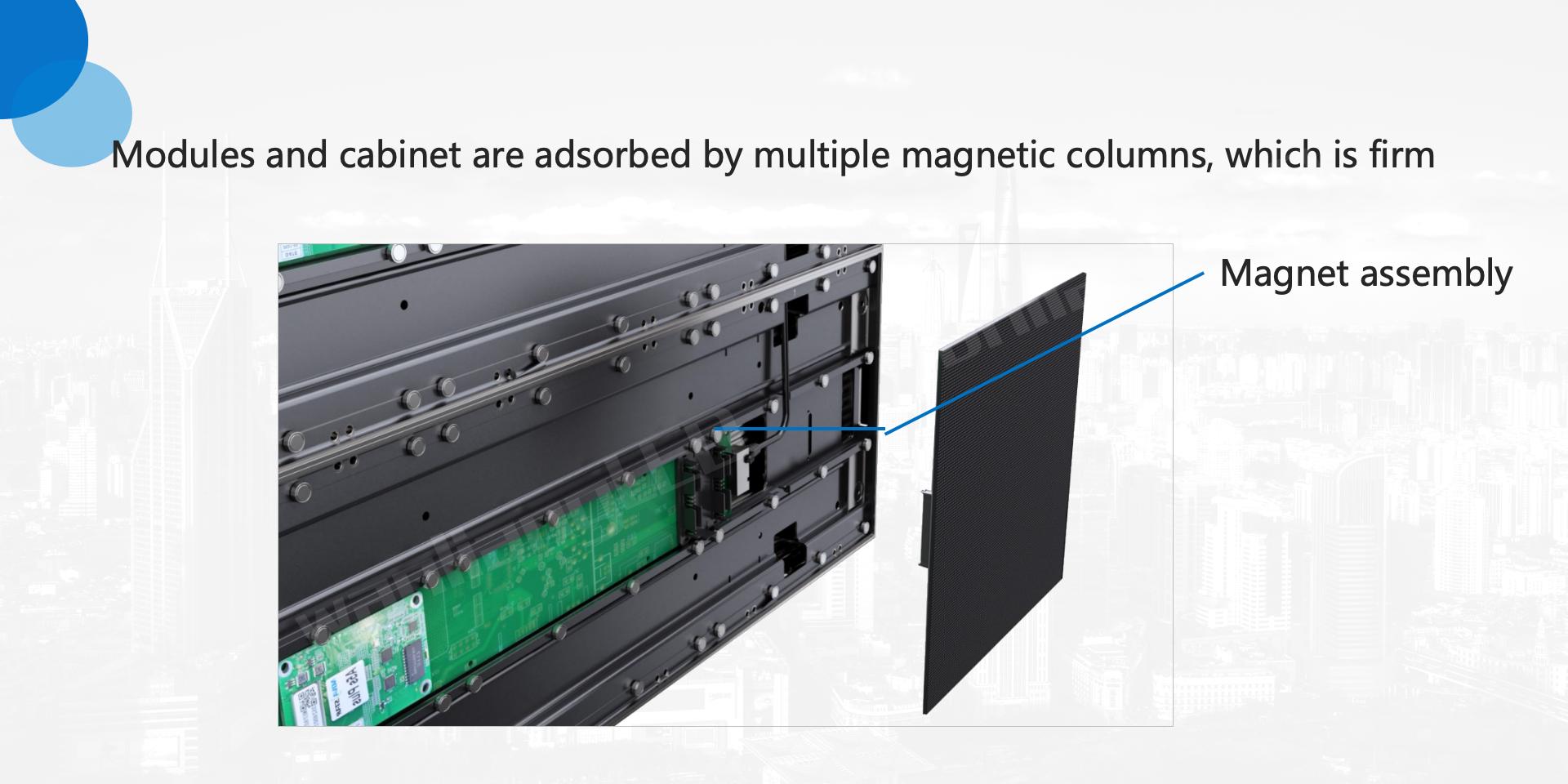

Modules and cabinet are adsorbed by multiple magnetic columns, which is firm.

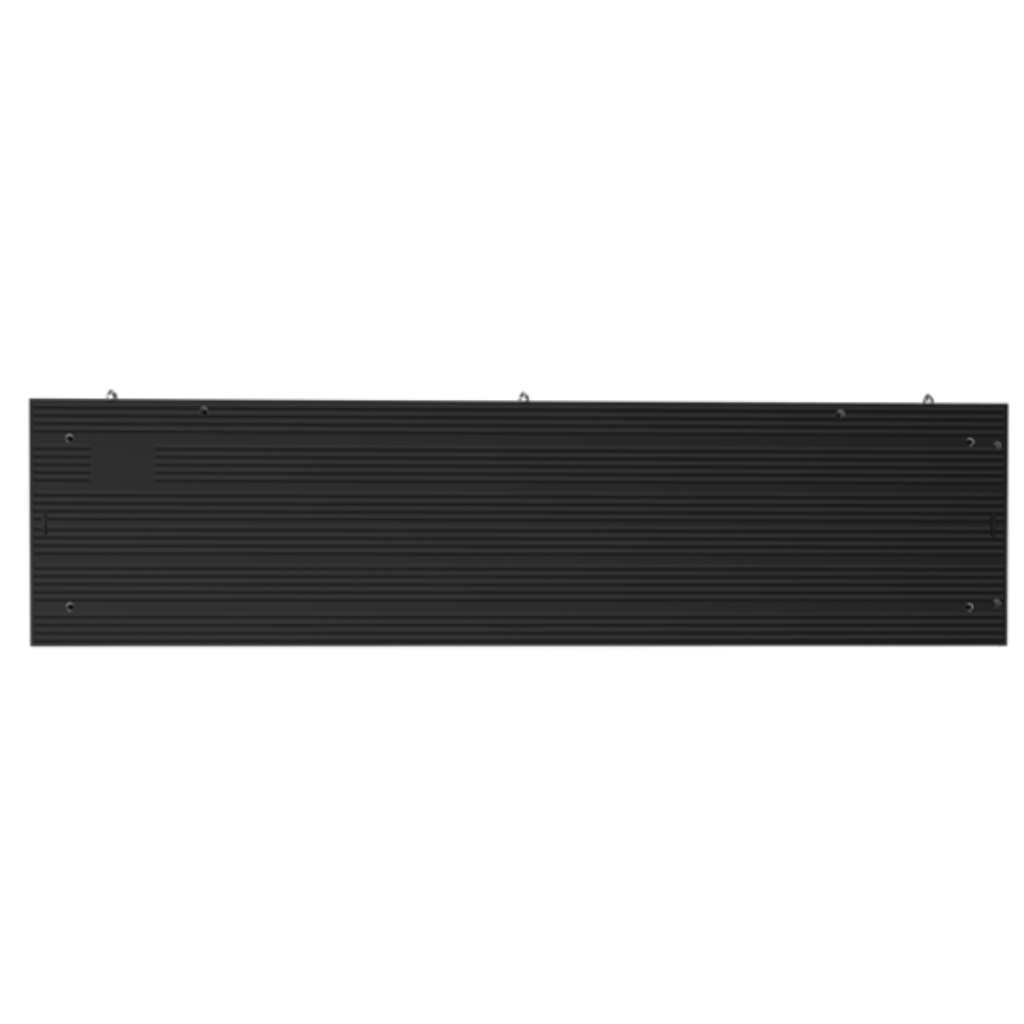

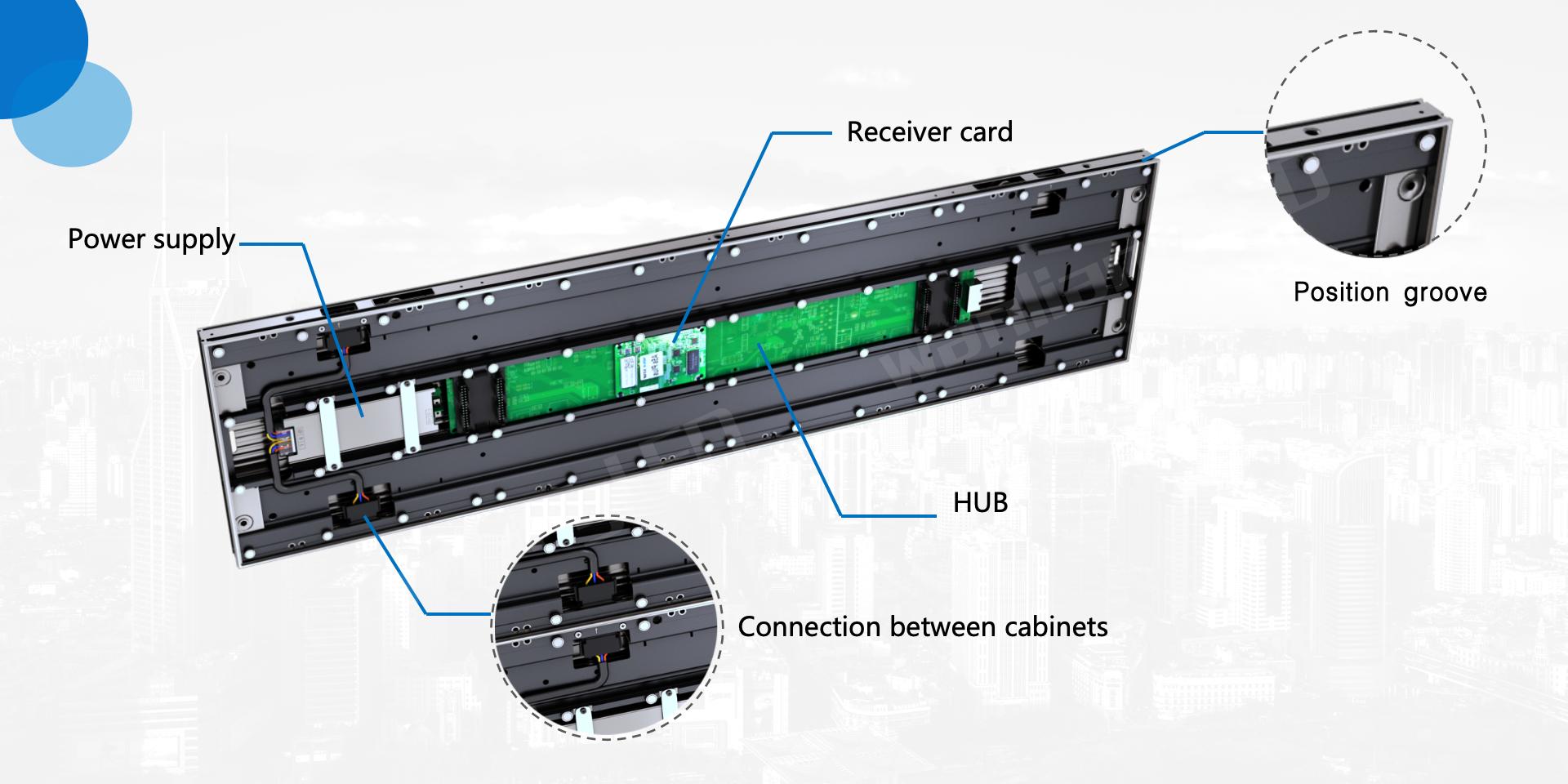

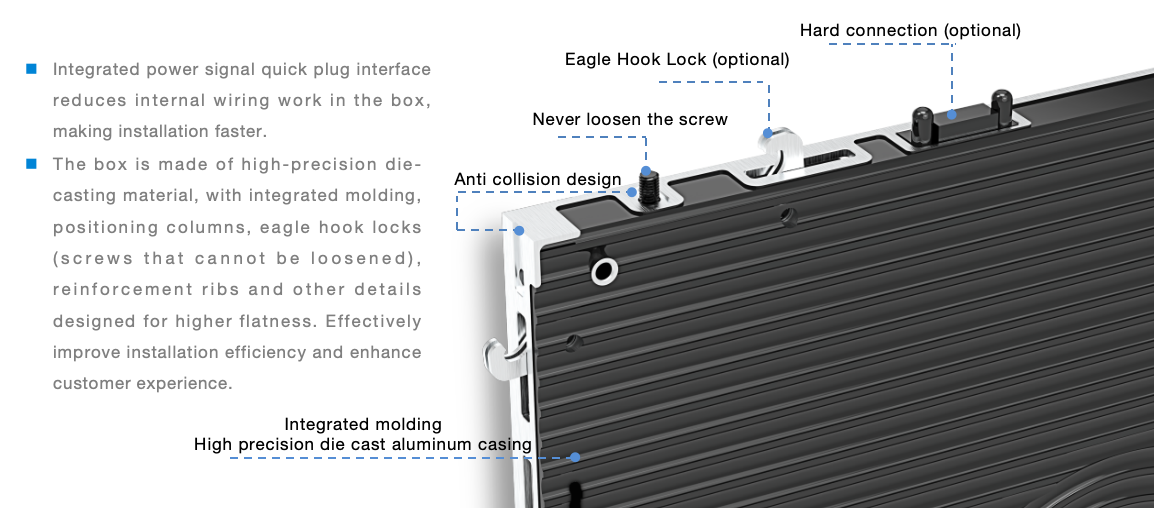

Details of cabinet

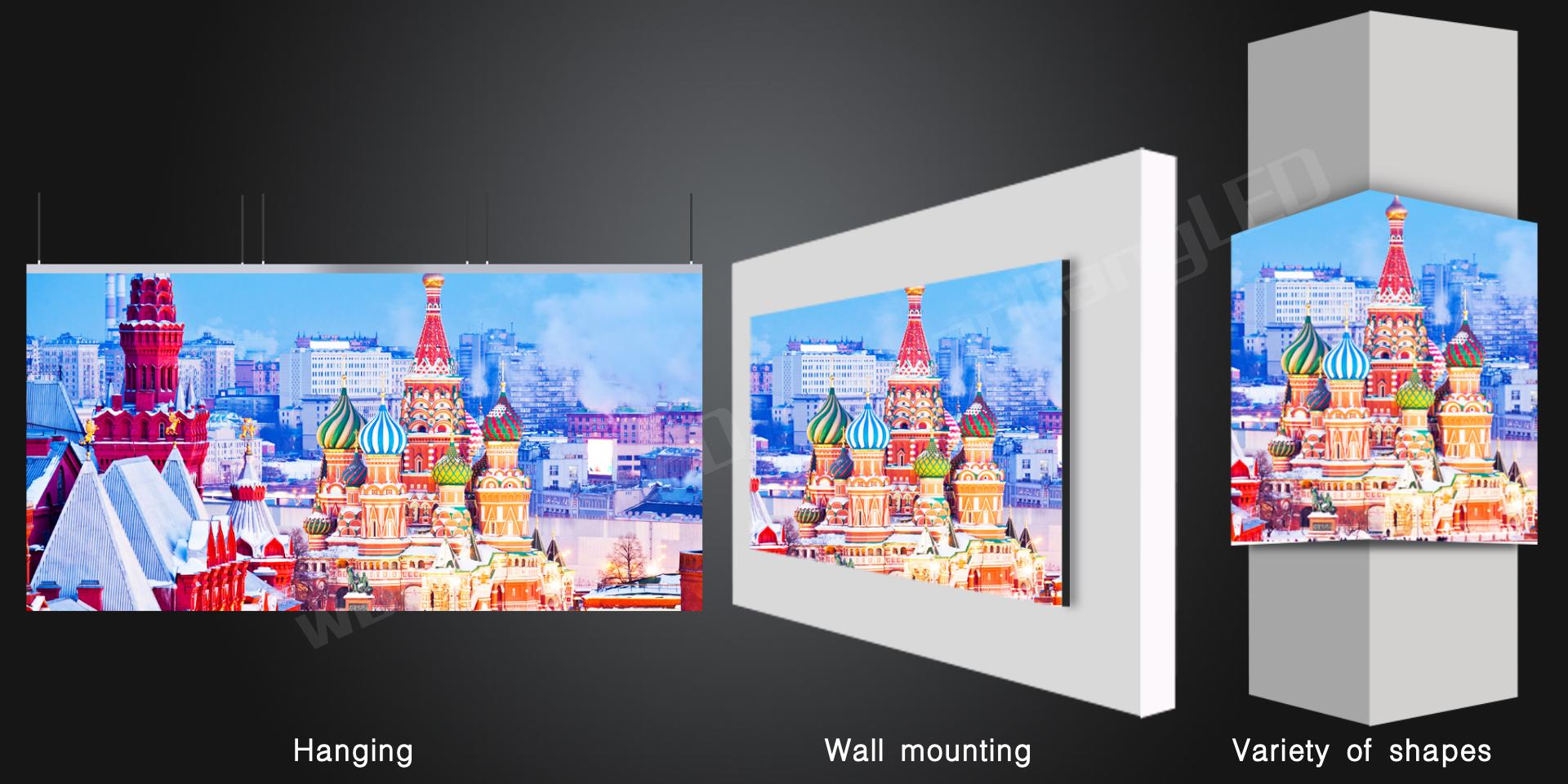

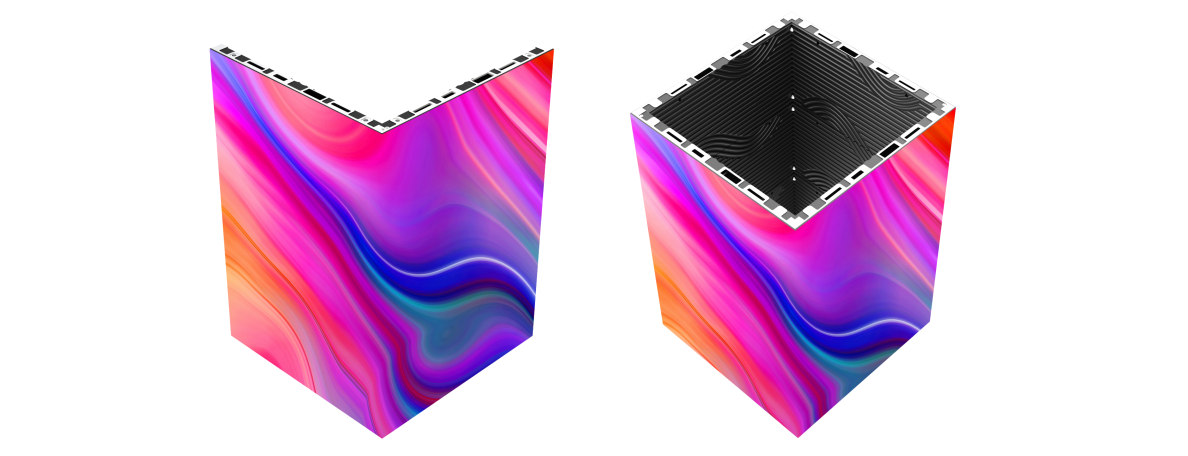

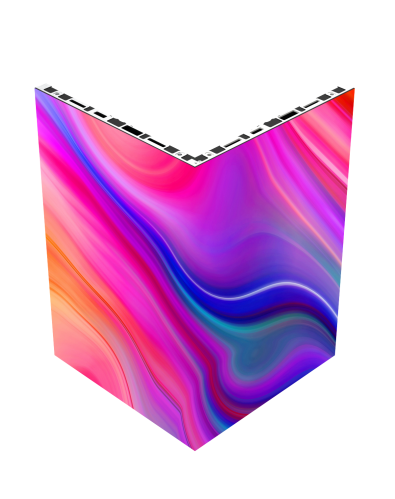

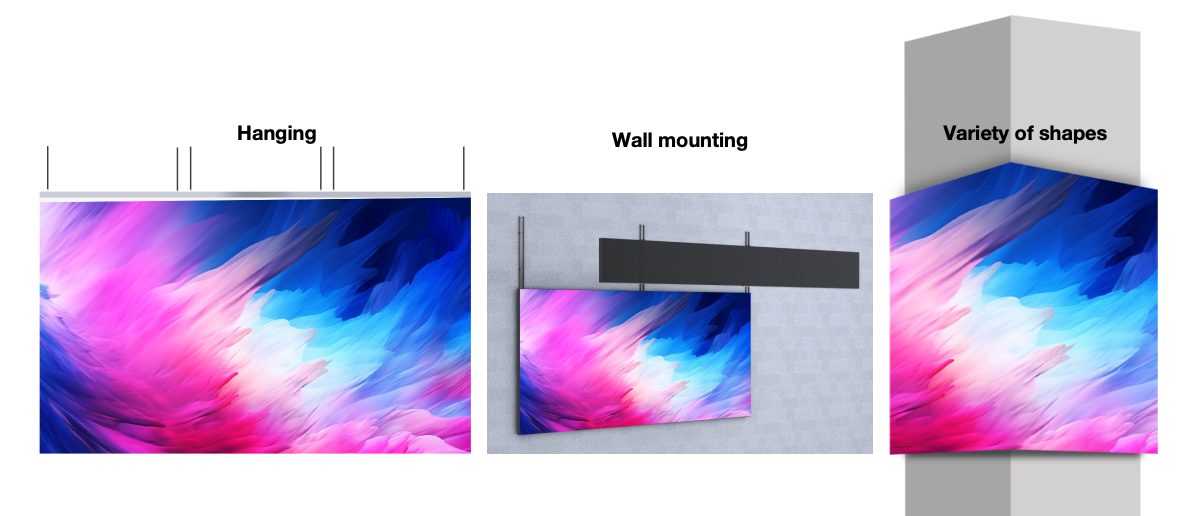

Installation mode

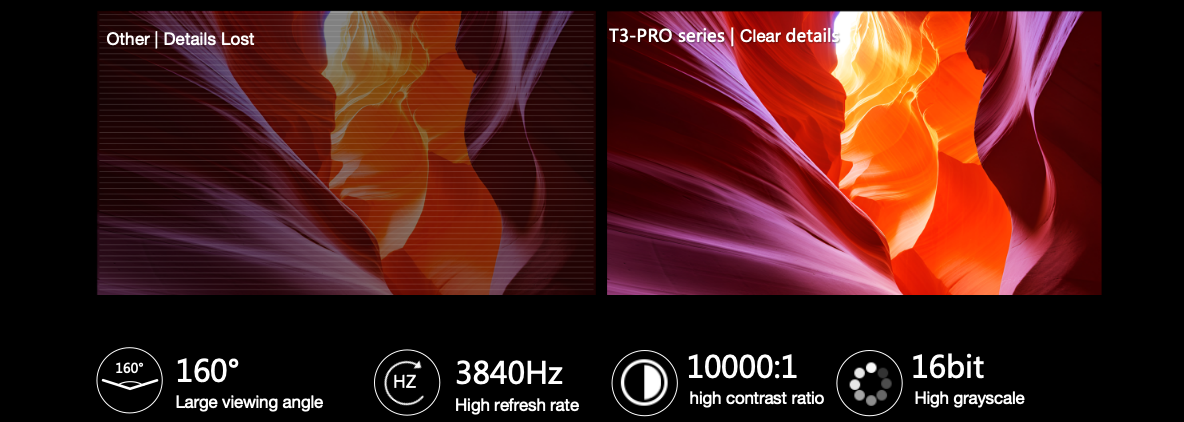

160°Super wide viewing angle

High refresh rate & High grey scale

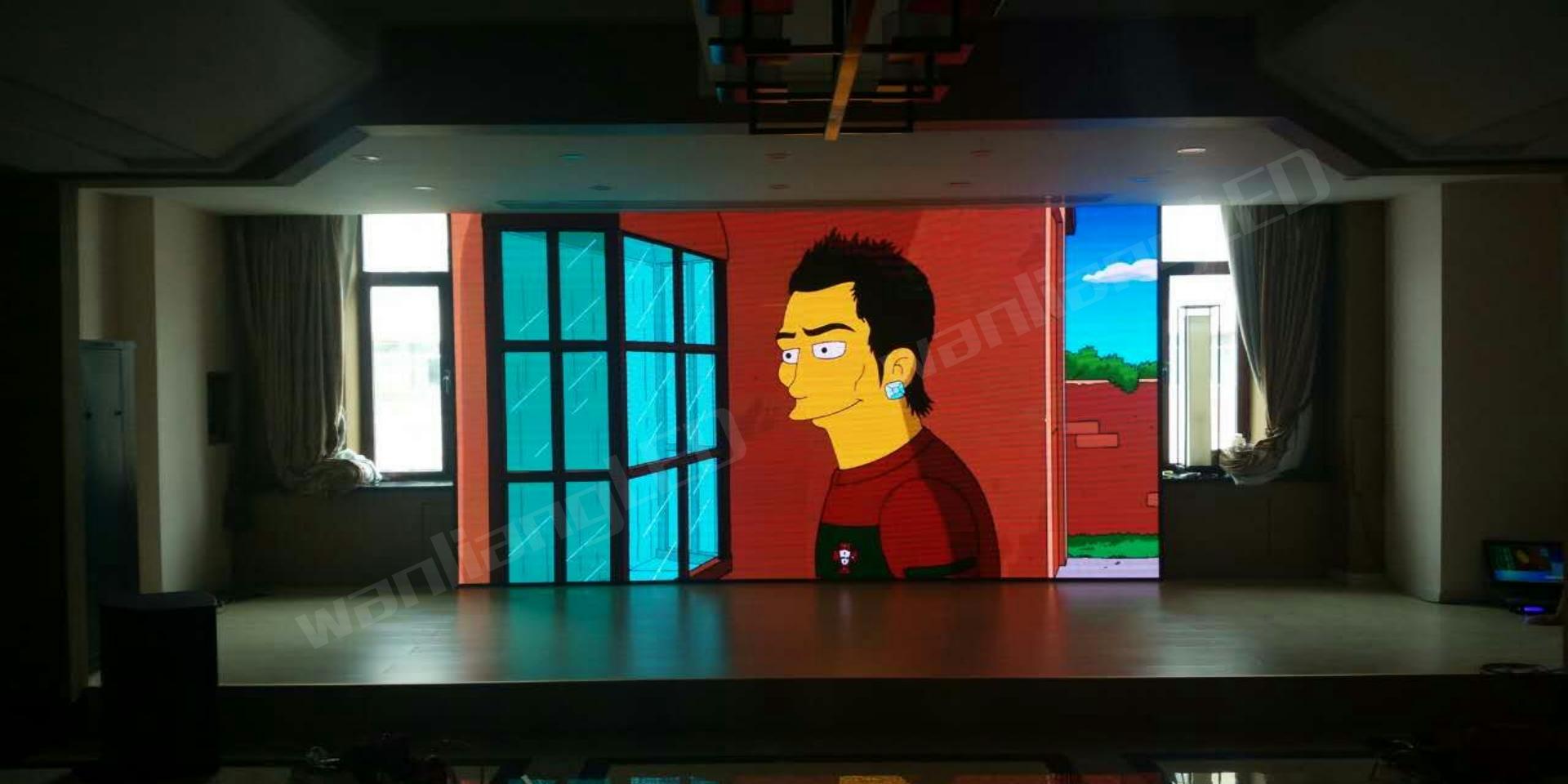

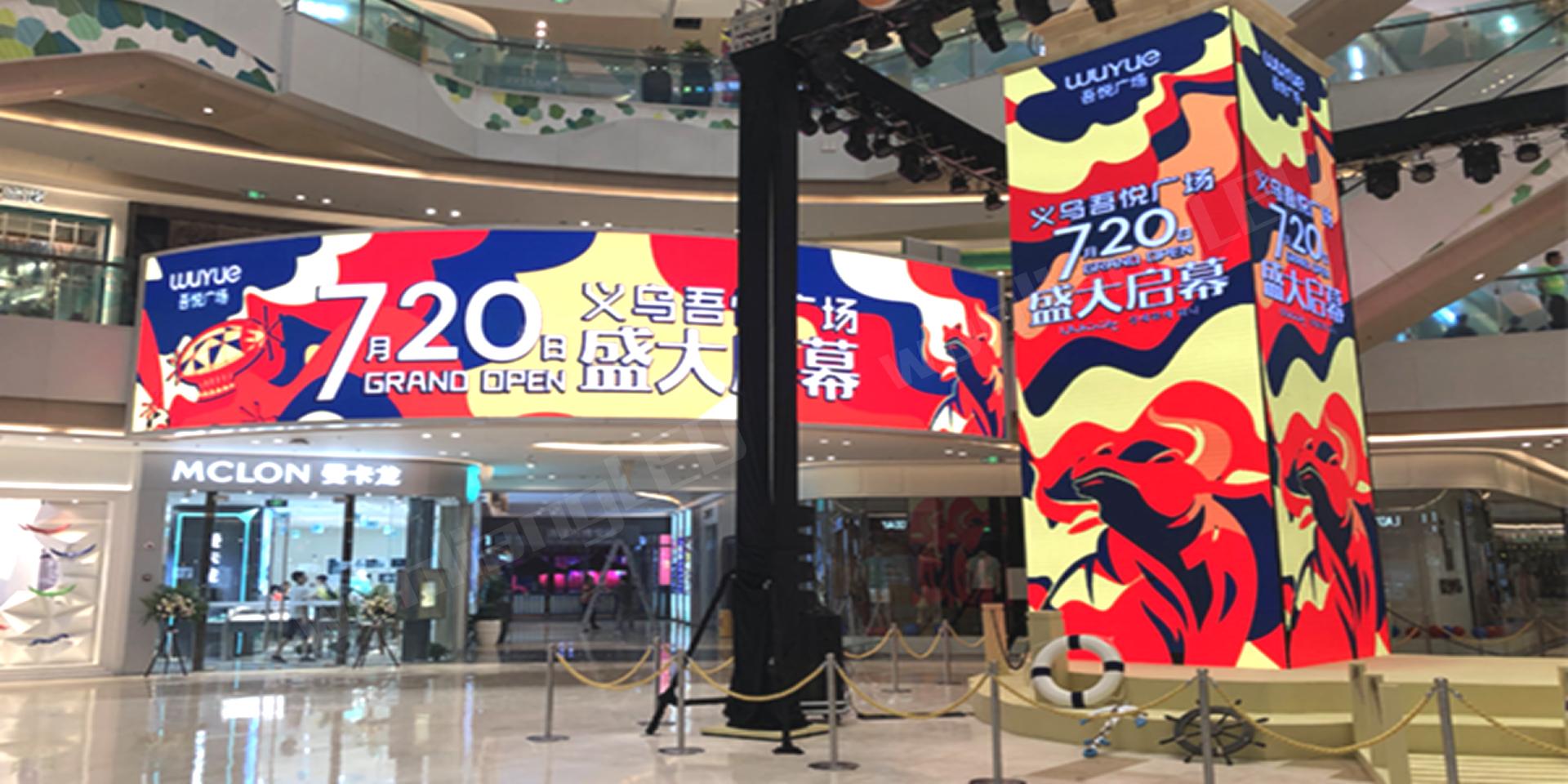

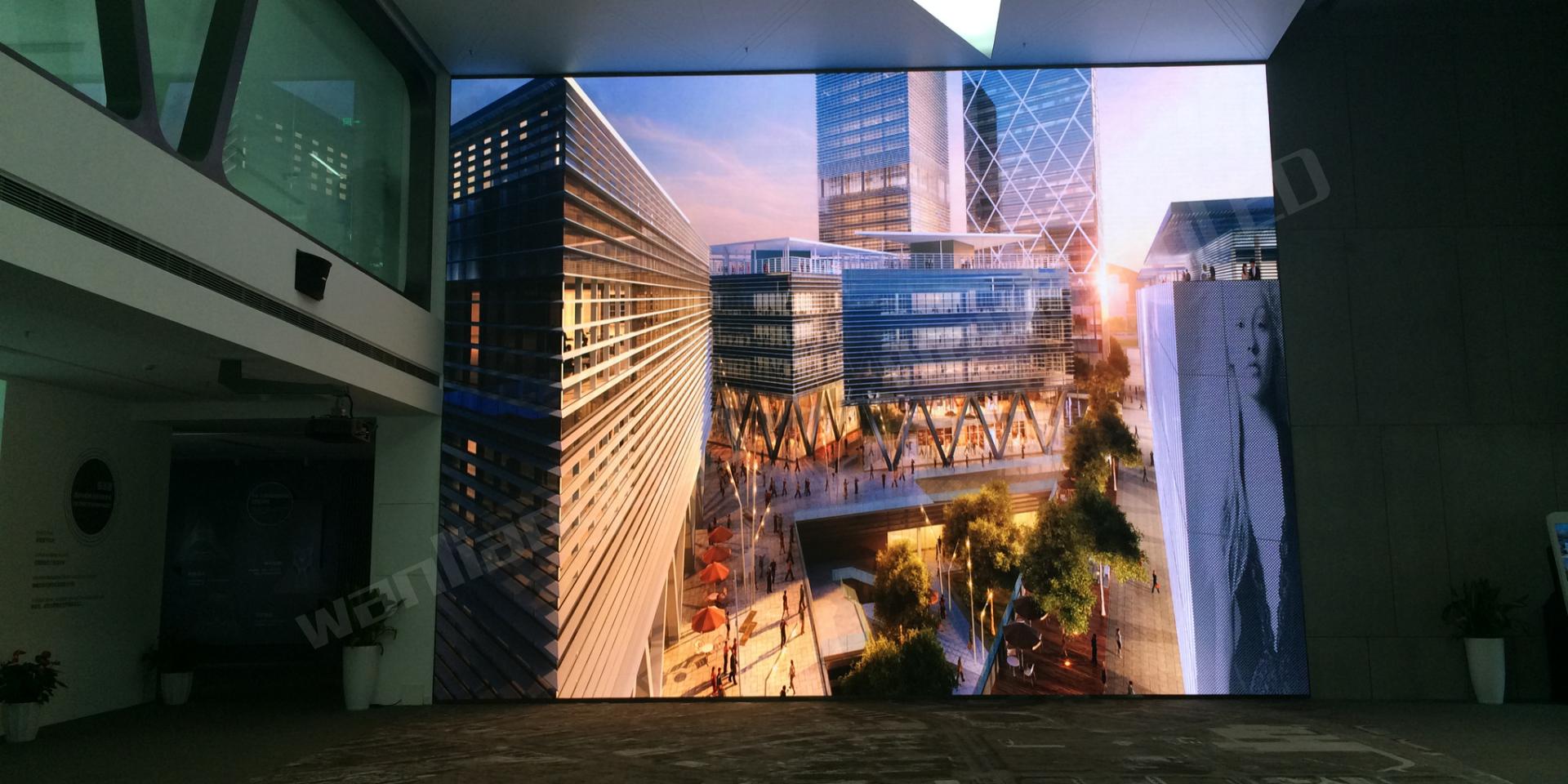

Case Gallery



E-Series Specifications
Parameter Name | WLE-1.56 | WLE-1.95 | WHE-2.5 | WLE-2.604 | WHE-2.976 | WLE-3.91 |
Pixel Pitch (mm) | 1.56 | 1.95 | 2.5 | 2.604 | 2.976 | 3.91 |
LED Type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
Pixel Density (dot/m2) | 409600 | 262144 | 16000 | 147456 | 112896 | 65536 |

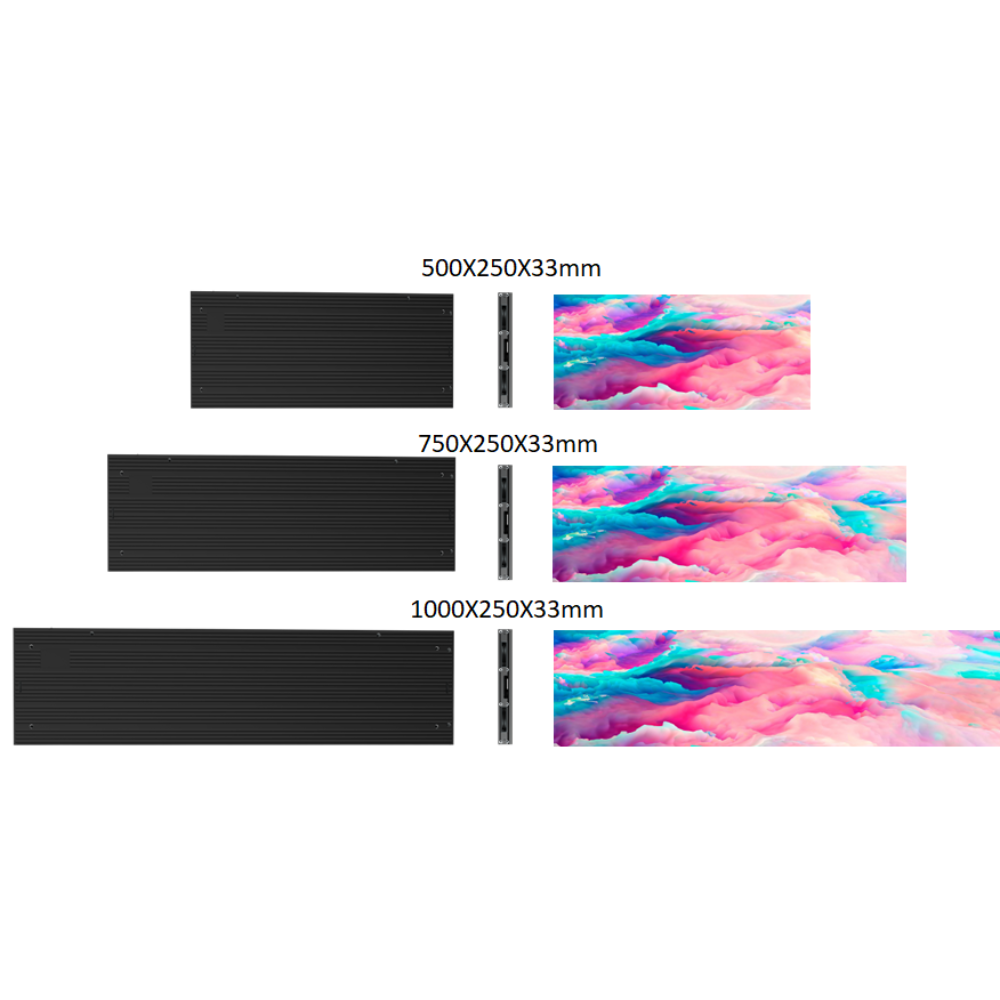

Cabinet Size (mm) (WxH,D=33mm ) | 1000x250/750x250 | 1000x250/750x250 /500x250 | 1000x250/750x250 /500x250 | 1000x250/750x250 /500x250 | 1000x250/750x250 /500x250 | 1000x250/750x250 /500x250 |
Cabinet Resolution (pixels) (WxH) | 640x160/480x160 | 512x128/384x128/256x128 | 400x100/300x100/200x100 | 384x92/288x96 /192x96 | 36x84/252x84 /168x84 | 256x64/192x64 /128x64 |
Cabinet Area (m2) | 0.25/0.1875 | 0.25/0.1875/0.125 | 0.25/0.1875/0.125 | 0.25/0.1875/0.125 | 0.25/0.1875/0.125 | 0.25/0.1875/0.125 |
Cabinet Weight (kg) | 5.8/4.5 | 5.8/4.5/2.9 | 5.8/4.5/2.9 | 5.8/4.5/2.9 | 5.8/4.5/2.9 | 5.8/4.5/2.9 |
Flatness (mm) | ≤0.12 | ≤0.12 | ≤0.12 | ≤0.12 | ≤0.12 | ≤0.12 |
Maintenance | Front | Front | Front | Front | Front | Front |
Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
Water proof | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
Brightness Correction | Available | Available | Available | Available | Available | Available |
Color Correction | Available | Available | Available | Available | Available | Available |
Brightness (nits) | 600 | 800 | 800 | 800 | 800 | 1000 |
Color Temperature (K) | 2000-10000 adjustable | 2000-10000 adjustable | 2000-10000 adjustable | 2000-10000 adjustable | 2000-10000 adjustable | 2000-10000 adjustable |
Viewing Angle (H/V°) | 160°/160 | 160°/160 | 160°/160 | 160°/160 | 160°/160 | 160°/160 |
Center Point Deviation | <3% | <3% | 3% | 3% | <3% | <3% |
Color Uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
