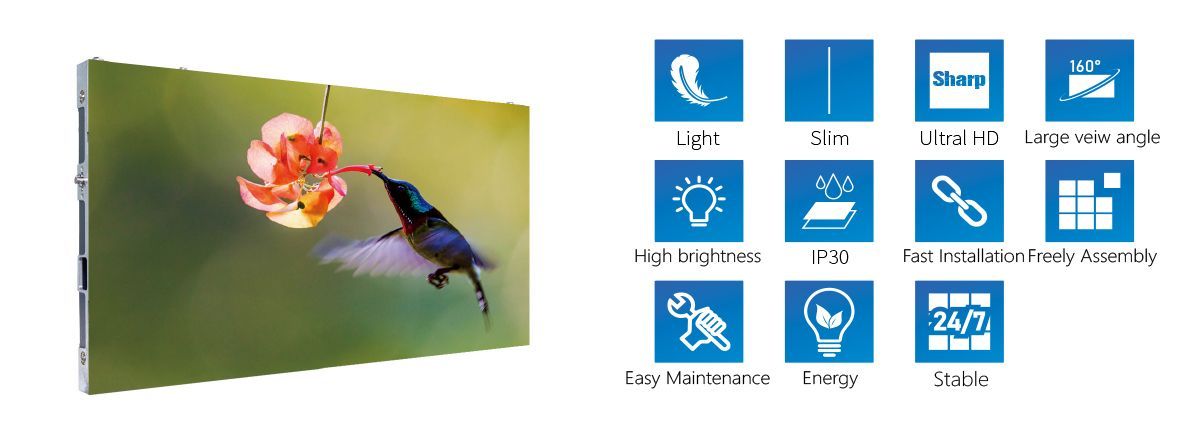

Product Feature:
Seamless Splicing, Super Wide Viewing Angle, Highly Accurate Brightness & Color Consistency.
It delivers an image which is super subtle and without getting tired after a longtime watching.
Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting ｏｒ Smear.
Front Serviceable Module allows easy Maintenance, Saving Time & Space.
5.16 Bit Grey Grade Processing, the color transition will be more natural.
Parameter:
Parameter Name | WHD-1.25 | WHD-1.56 | WHD-1.87 | WHD-2.5 |
Pixel Pitch (mm) | 1.25 | 1.56 | 1.87 | 2.5 |
Led Type | SMD1010 | SMD1010 | SMD1515 | SMD2020 |
Cabinet Resolution (WxH) | 480x270 | 384x216 | 320x180 | 240x135 |
Cabinet Size (WxHxD mm) | 600x337.5x66 | 600x337.5x66 | 600x337.5x66 | 600x337.5x66 |
Cabinet Area (m2) | 0.2022 | 0.2022 | 0.2022 | 0.2022 |
Cabinet Weight (kg) | 5.24 | 5.24 | 5.24 | 5.24 |
Pixel Density (dot/m2) | 640000 | 409600 | 284444 | 160000 |
Flatness (mm) | ≤0.12 | ≤0.12 | ≤0.12 | ≤0.12 |
Maintenance | Front & Rear | Front & Rear | Front & Rear | Front & Rear |

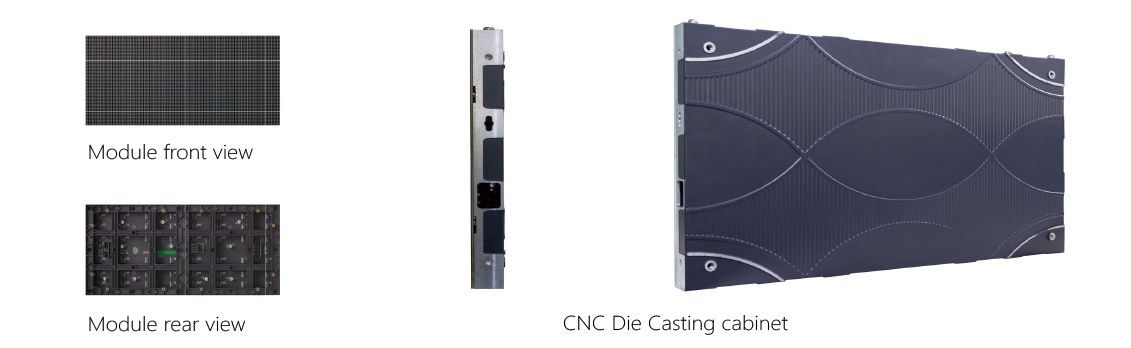

Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | DieCasting Aluminum |
Water proof | IP30 | IP30 | IP30 | IP30 |
Brightness Correction | Available | Available | Available | Available |
Color Correction | Available | Available | Available | Available |
Brightness (nits) | 600 -800 | 600 -800 | 600 -800 | 600 -800 |
Color Temperature (K) | 2000-10000adjustable | 2000-10000adjustable | 2000-10000adjustable | 2000-10000adjustable |
Viewing Angle (H/V°) | 160° | 160° | 110/90 | 110/90 |
Center Point Deviation | ＜3% | ＜3% | ＜3% | ＜3% |
Brightness/Color Uniformity | ≥97% | ≥97% | ≥97% | ≥97% |
Contrast Ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Max Power Consumption (W/m2) | 700 | 700 | 500 | 500 |
Average Power Consumption (W/m2) | 240 | 240 | 165 | 165 |
Voltage Range | AC100-240V, 50/60 (Hz) | AC100-240V, 50/60 (Hz) | AC100-240V, 50/60 (Hz) | AC100-240V, 50/60 (Hz) |
Security Features | GB4943/EN60950 | GB4943/EN60950 | GB4943/EN60950 | GB4943/EN60950 |
Frame Rate (Hz) | 50&60 | 50&60 | 50&60 | 50&60 |
Drive Mode | ConstantCurrent Drive 8scans | Constant Current Drive 4scans | Constant Current Drive 4scans | Static state |
Gray Scale | 14bit | 14bit | 14bit | 14bit |
Refresh Rate (Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
Color Figures | 16bit | 16bit | 16bit | 16bit |
Life Time (hrs) | 500,000 hrs | 500,000 hrs | 500,000 hrs | 500,000 hrs |
Operating Temperature/Humidity Range(℃/RH) | -10 - 40/10%-80%(non-condensing) | -10 - 40/10%-80% (non-condensing) | -10 - 40/10%-80% (non-condensing) | -10 - 40/10%-80% (non-condensing) |
Storage Temperature/Humidity Range (℃/RH) | -20-60/10%-85% (non-condensing) | -20 - 60/10%-85% (non-condensing) | -20 - 60/10%-85% (non-condensing) | -20 - 60/10%-85% (non-condensing) |
Certification | CE, ETC and etc | CE, ETC and etc. | CE, ETC and etc. | CE, ETC and etc. |

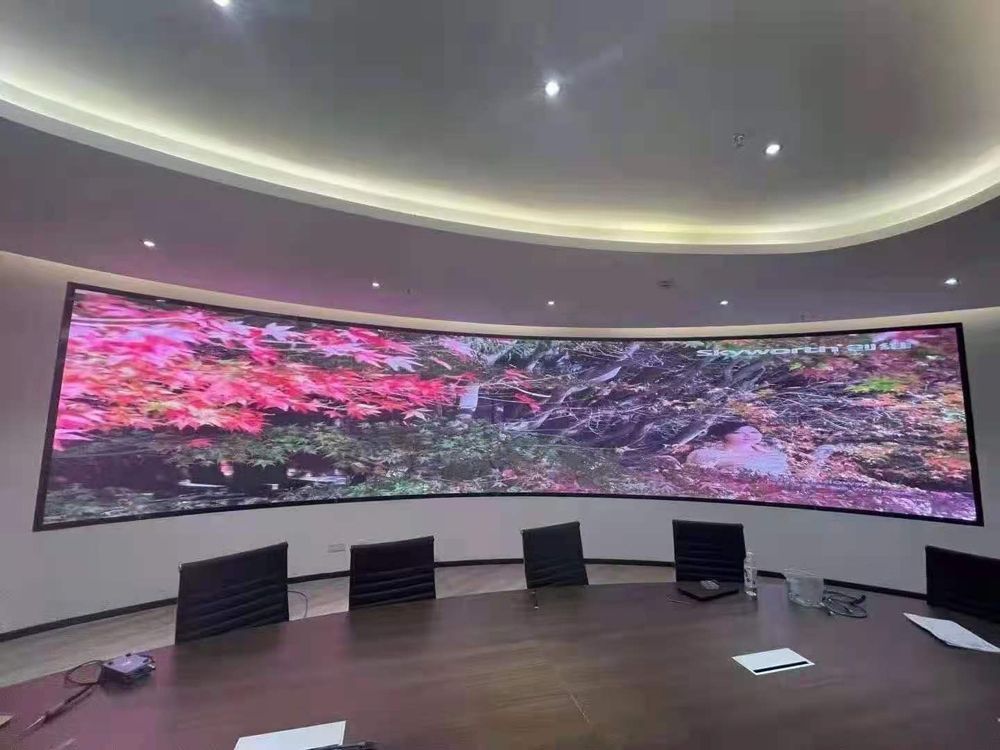

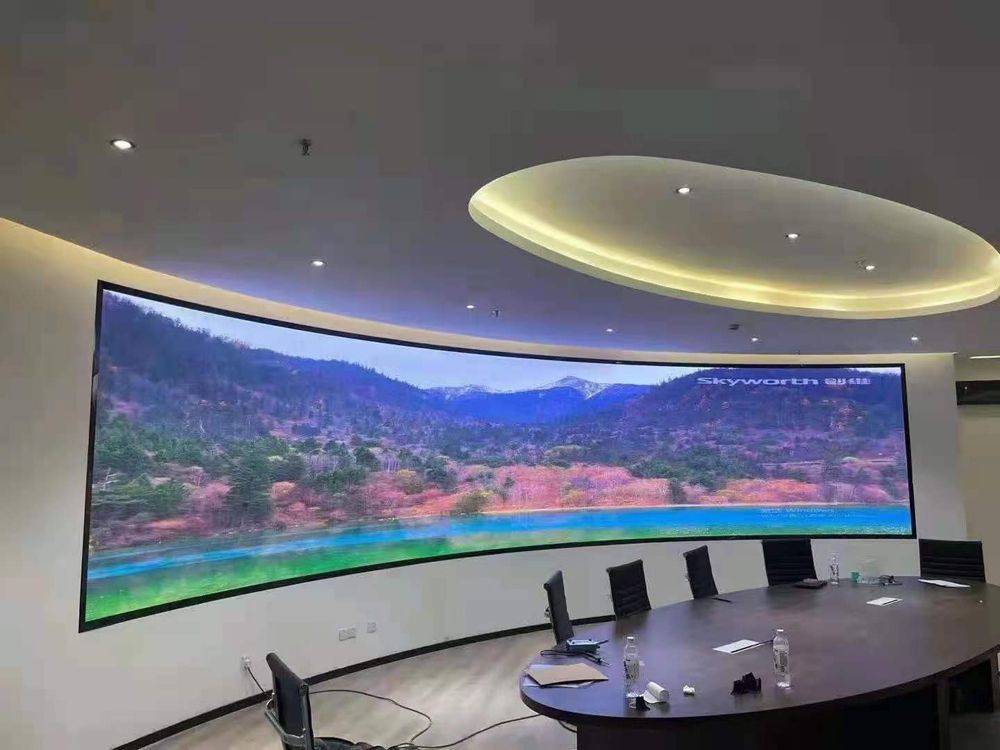

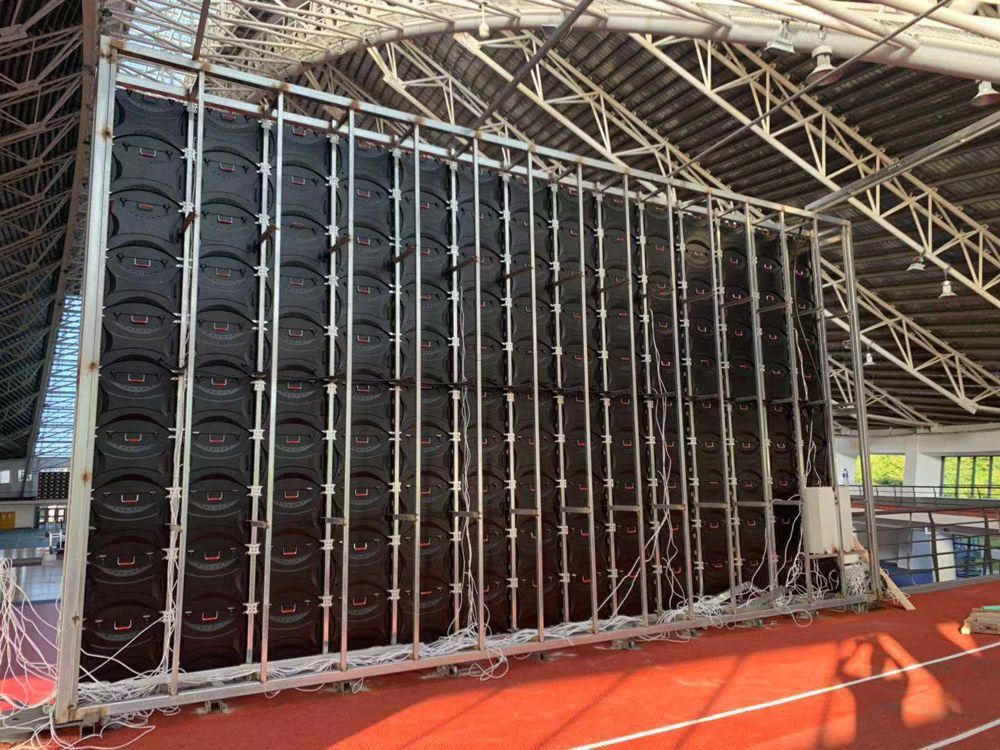

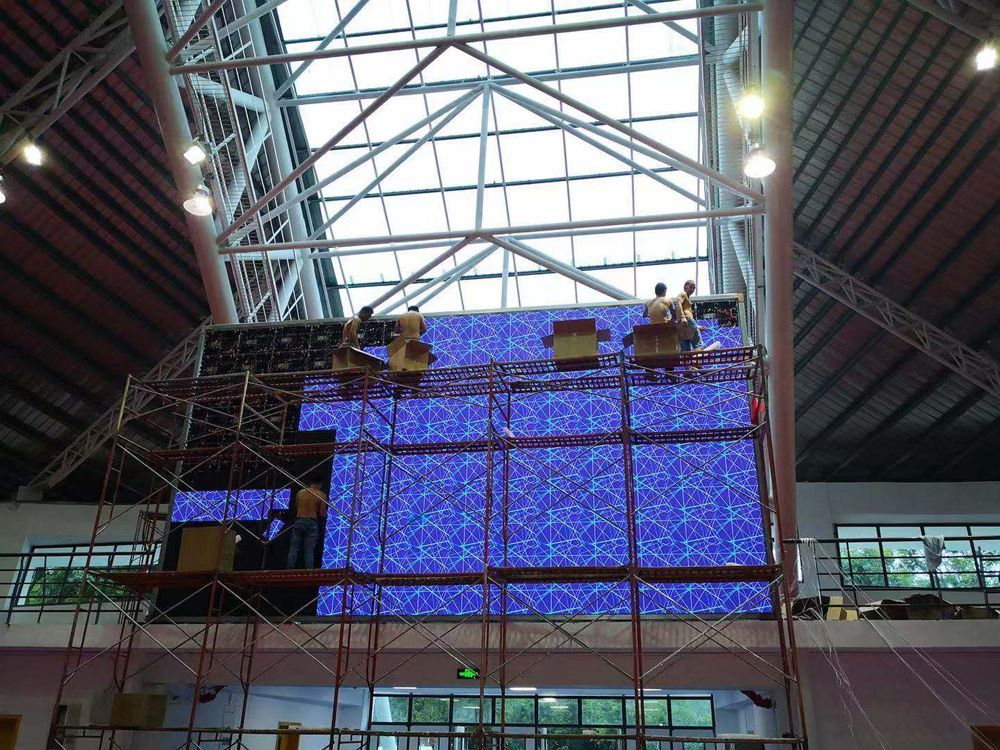

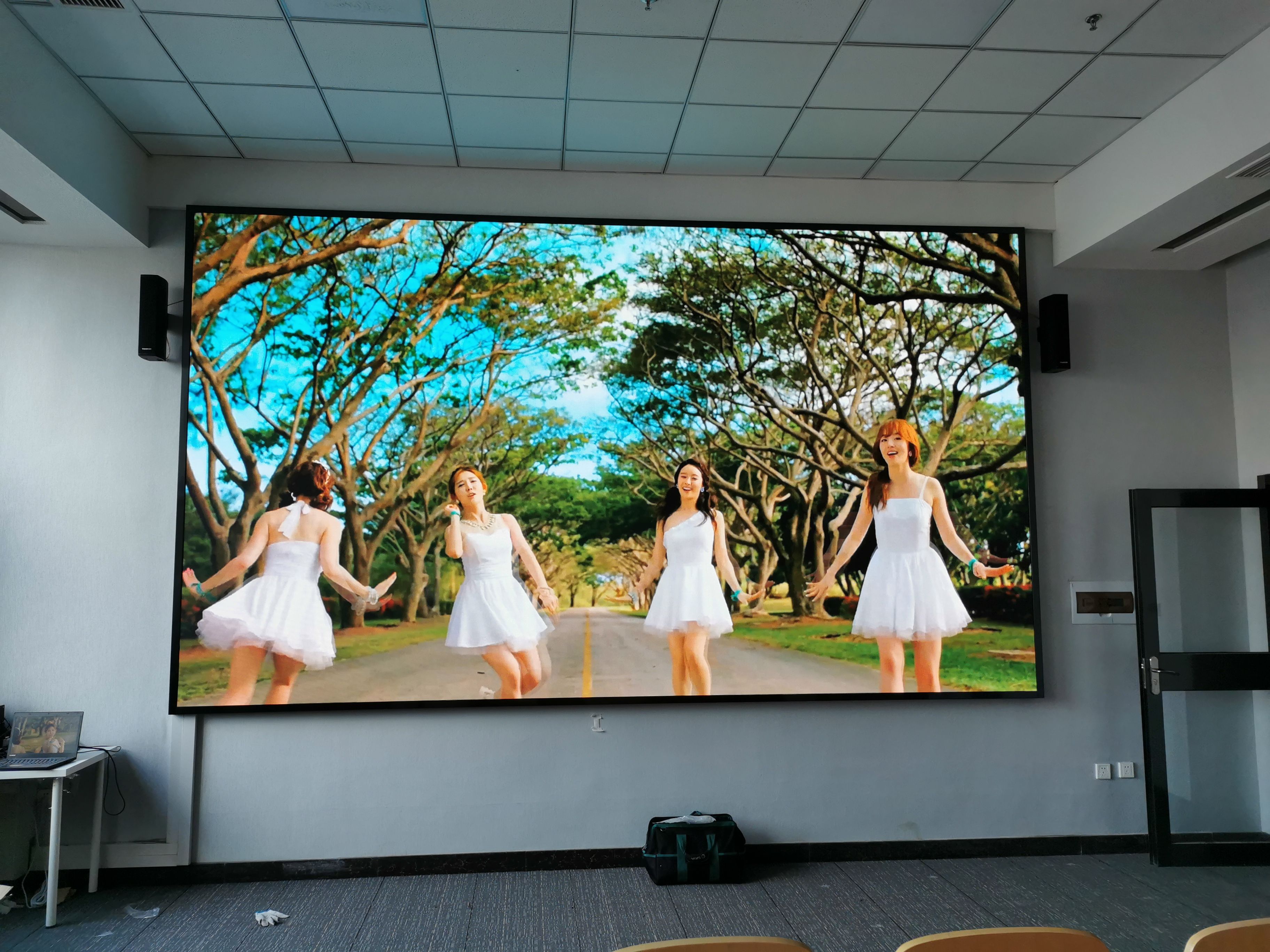

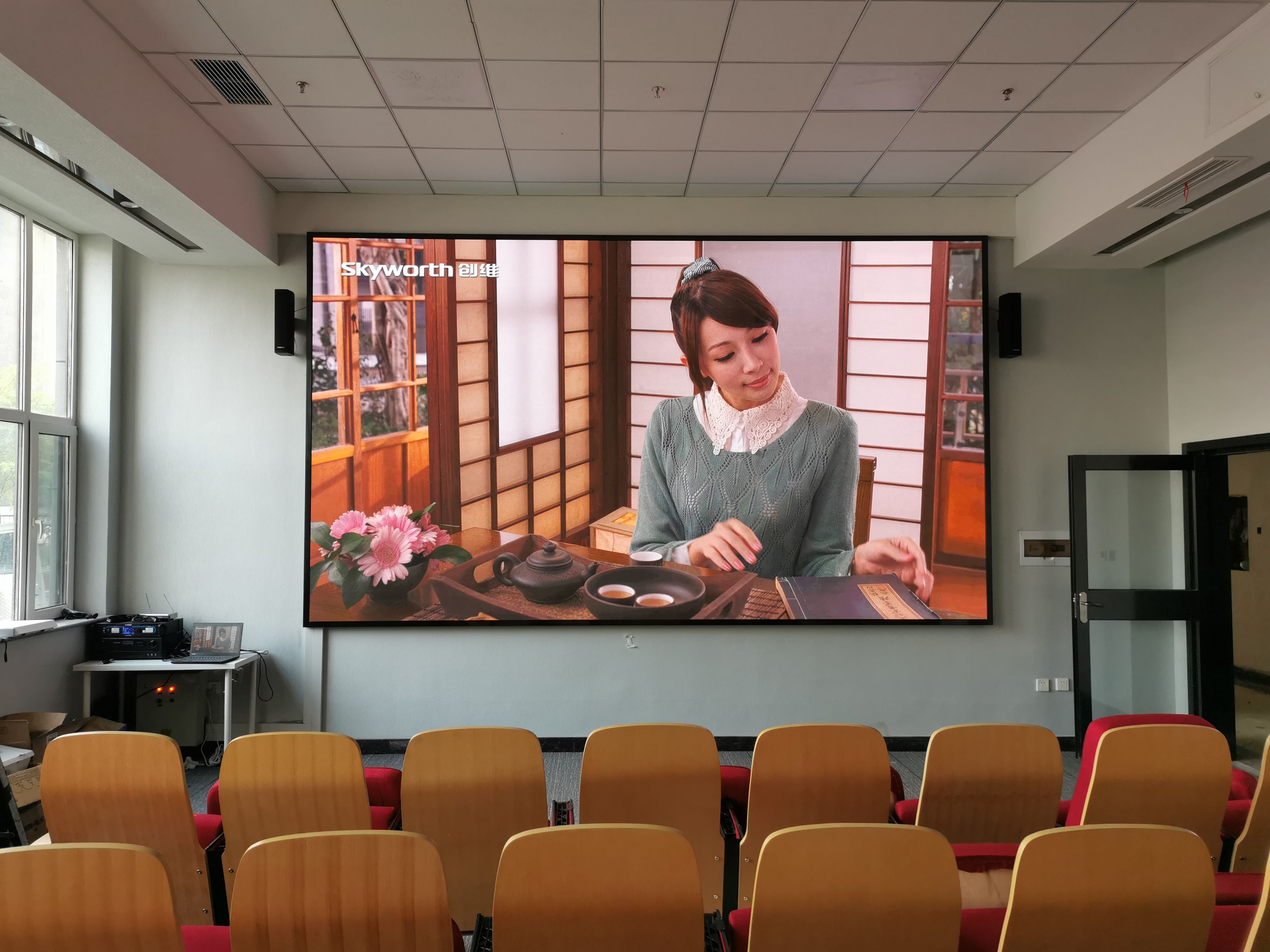

Project cases:
