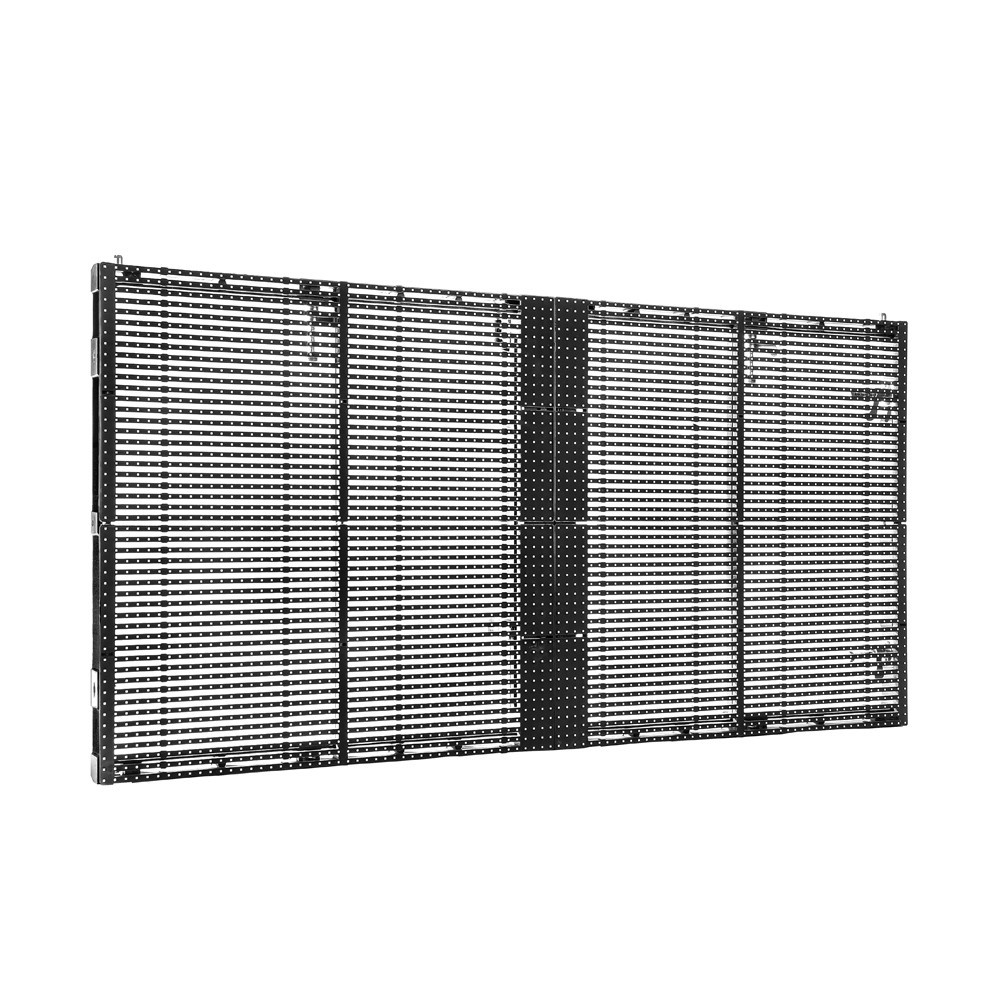

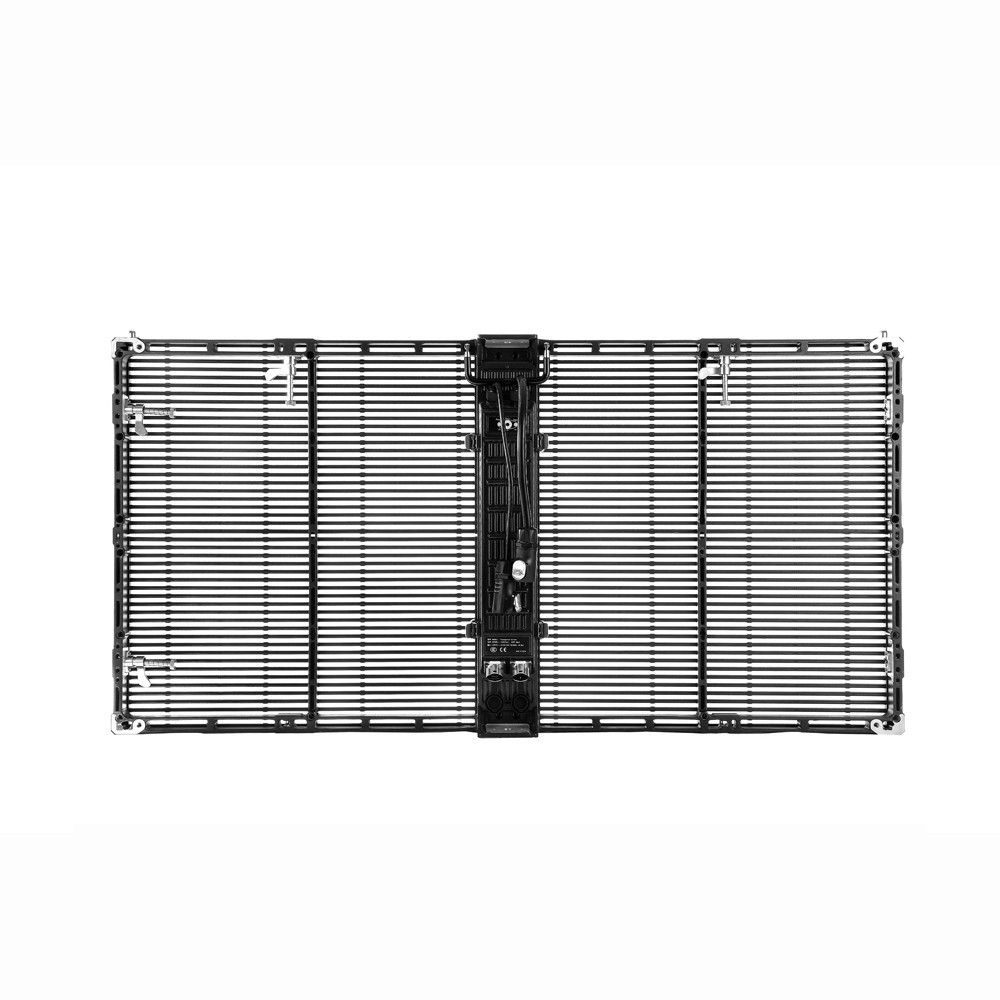

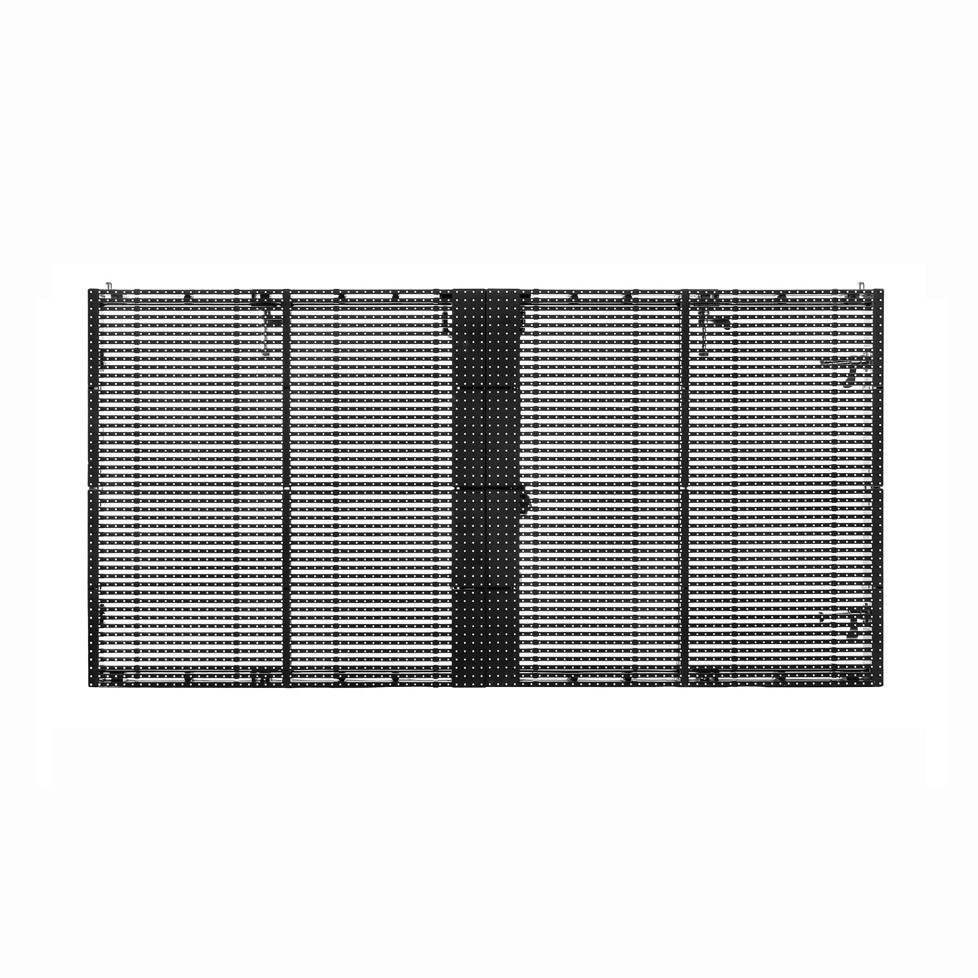

Outdoor Fixed Transparent LED Display screen

Module Size:250x500(mm)
Caninet Size:500x1000(mm)
Material Science:Aluminium die-cast

Outdoor Fixed Transparent LED Display screen

Outdoor Fixed Transparent LED display screen.jpg

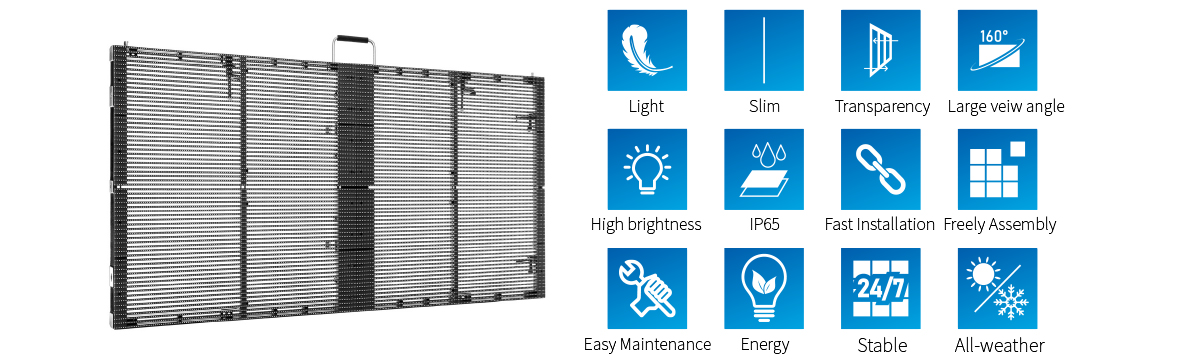

Product Feature:

● Die casting cabinet, slim, strong and seamless assembling.

● High transparent rate, the highest can reach 71%.

● Slim cabinet, space saving; light weight, no need to change architectural structure,adapt to different installation place.

● Environmental Projection: no need air-con; Winds can go through the screen, low wind drag.

● Easy maintenance: fast replaced module, support front and rear service.

● Stacking, hanging and fixed installation are supported.

● The lamp & PCB are fully sealed by silicon, anti-dust and anti-collision, IP65, adapt to harsh weather


These screens have numerous Installation Methods and are suitable for dangling outdoor installation, stabilized installation, rental arena. Below are some of the salient features of these screens:



Modular Design



Standard closet sizes could be manipulated for various screen lengths. We provide every size that you require,

Our lightweight frames retaining aluminum are flawlessly merged with application techniques.



Outstanding Transparency



Our Outdoor Fixed Transparent Screens are  60% translucent for significant visual impact, not barely for theatre exhibitions but furthermore for the wall. It's not only an outdoor screen for promotion but also a window that peeks inward immediately.



Incredible Design



Our focus has been to be better and meet the consumer's pictorial effects; so we especially formulated a modern box, the supreme power box layout. Identical to the structure of the high-speed rail head, it exemplifies the immediate and robust growth of your company.



Impressive Brightness



Our product's brightness is up to (please fill e.g. 5500) units. It is however apparent during the sunny day, there is no necessity to bother about inadequate brightness.



IP65



We all are aware that IP65 implies that the commodity seems to be waterproof. It could be inaugurated in several outdoor applications, like tower facades, shopping malls, outdoor theater scenes, etc.

Outdoor Fixed Transparent LED Display screen.jpg

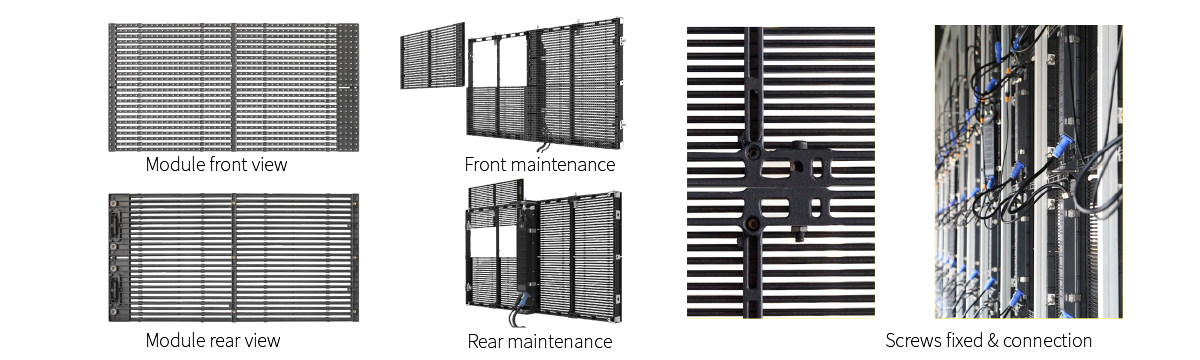

Module Detail


Parameter:

Model

WLM3-7

WLM5-10

WLM-10.4

WLM-15.6

Pixel Pitch(mm)

H:3.9 V:7.8

H:5.2 V:10.4

H:10.4 V:10.4

H:15.6 V:15.6

Transparency Rate

53%

58%

58%

71%

Resolution(dot/ m²)

32768

18432

9216

4096

Cabinet Resolution

256x128

192x96

96x96

64x64

Weight(Kg/ m²)

7.5

7.5

7.5

7.5

Refresh(Hz)

3840

3840

3840

3840

Driving IC

ICN2153PWM

MY9866

MY9866

ICN2038S

Scan Mode

1/8

1/4

1/2

Static

LED Type

SMD1921

SMD1921

SMD2727

SMD2727

Brightness (cd/ m²)

≥ 4500

≥ 5500

Lamp Life Span

≥ 100 000 hours

Pixel Compose

RGB all in one

Grey Scale

14bit

Max Power Consumption (W/ m²)

800

Ave. Power Consumption(W/ m²)

260

LED Control System

NOVA

Connection & Control

WiFi / DVI / HDMI / DP / USB/RJ45 /   Remote Internet control

IP Level

IP65

Clean Ghosting

Yes

Input Power

AC100~240V 50/60Hz

Module Input Power

DC4.7~5V ±0.2V

Cabinet Material (mm)

1000x500x80

Cabinet Material

Die Casting

Maintenance

Front/ Rear Service

Working Tempareture and

humidity

Temperature : -10~40   ; Humidity: 10%-90%, non-condensing

Installation

Hanging vertical   20pcs cabinet) 10 / Stacking / Fixed installation

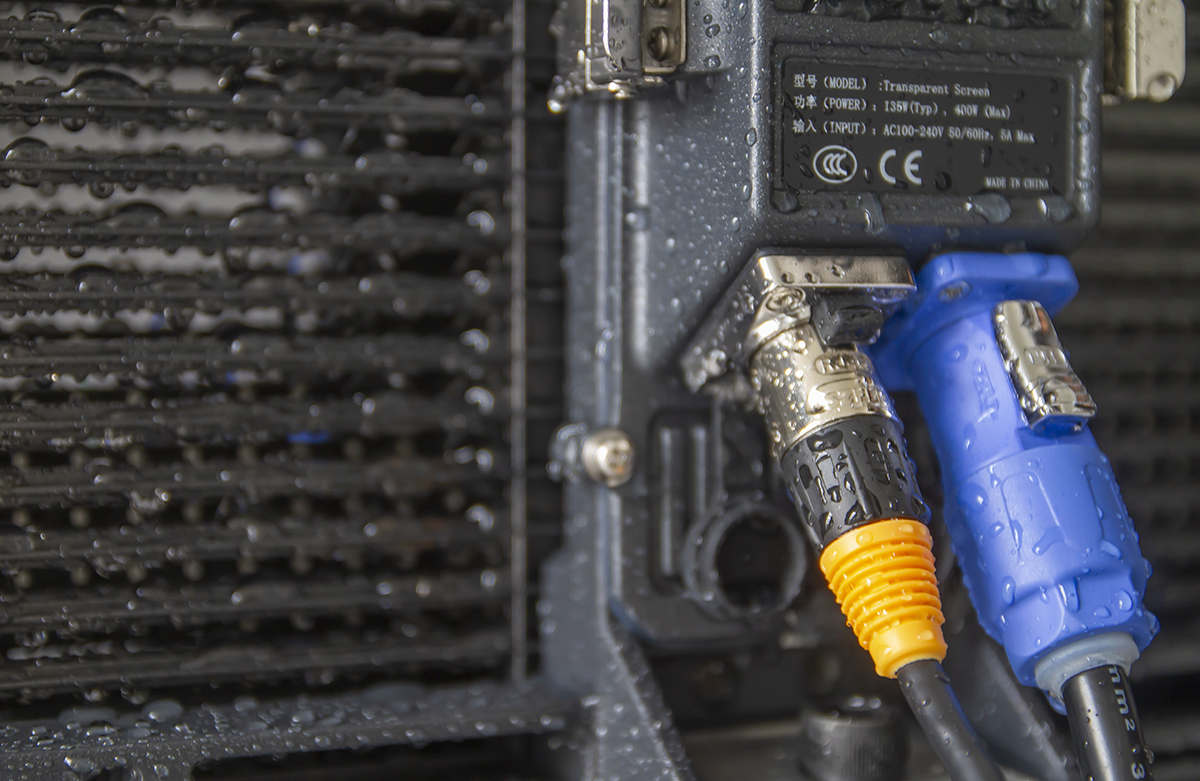

Waterproof Test



Outdoor Fixed Transparent LED Display screen.jpg

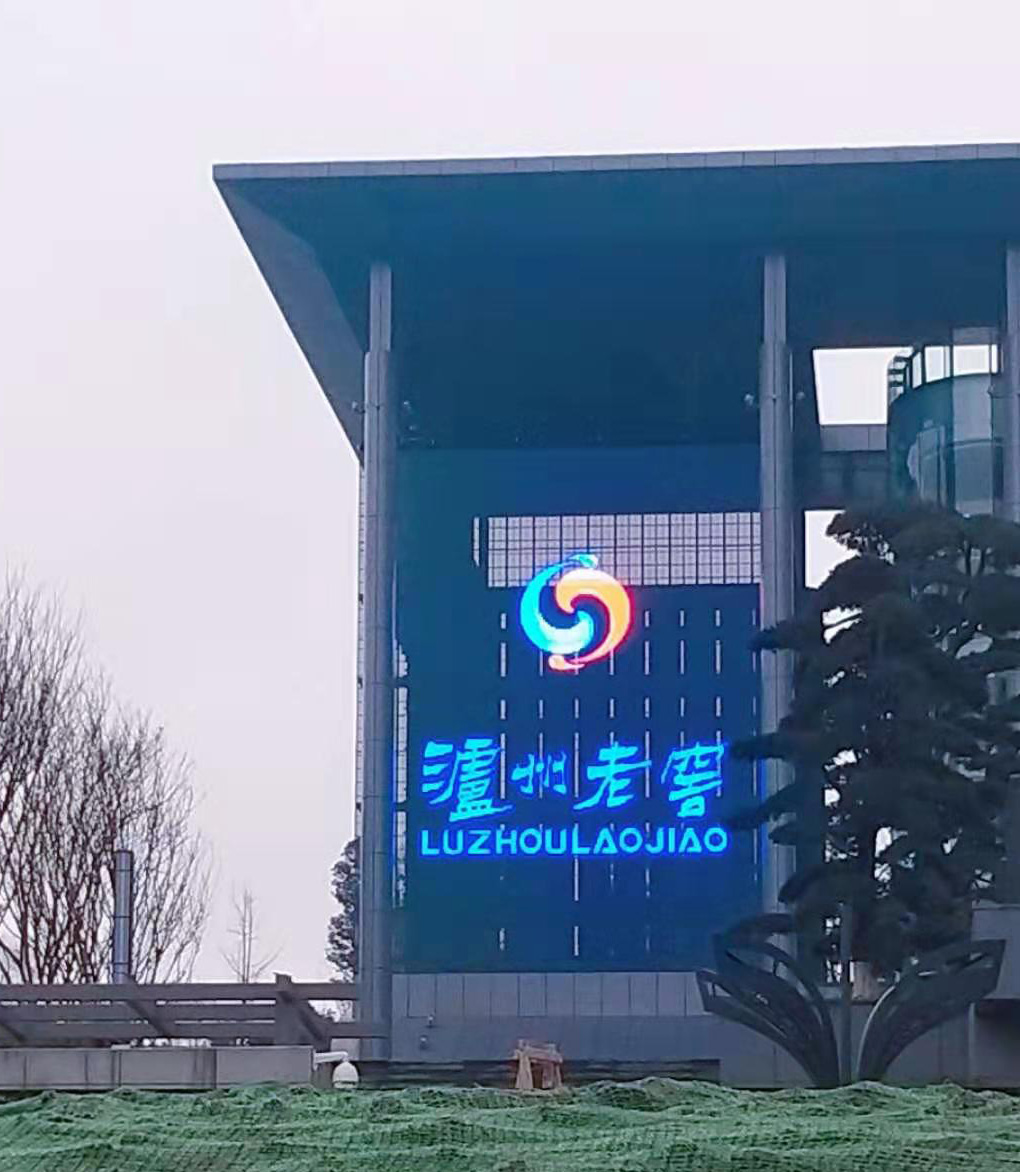

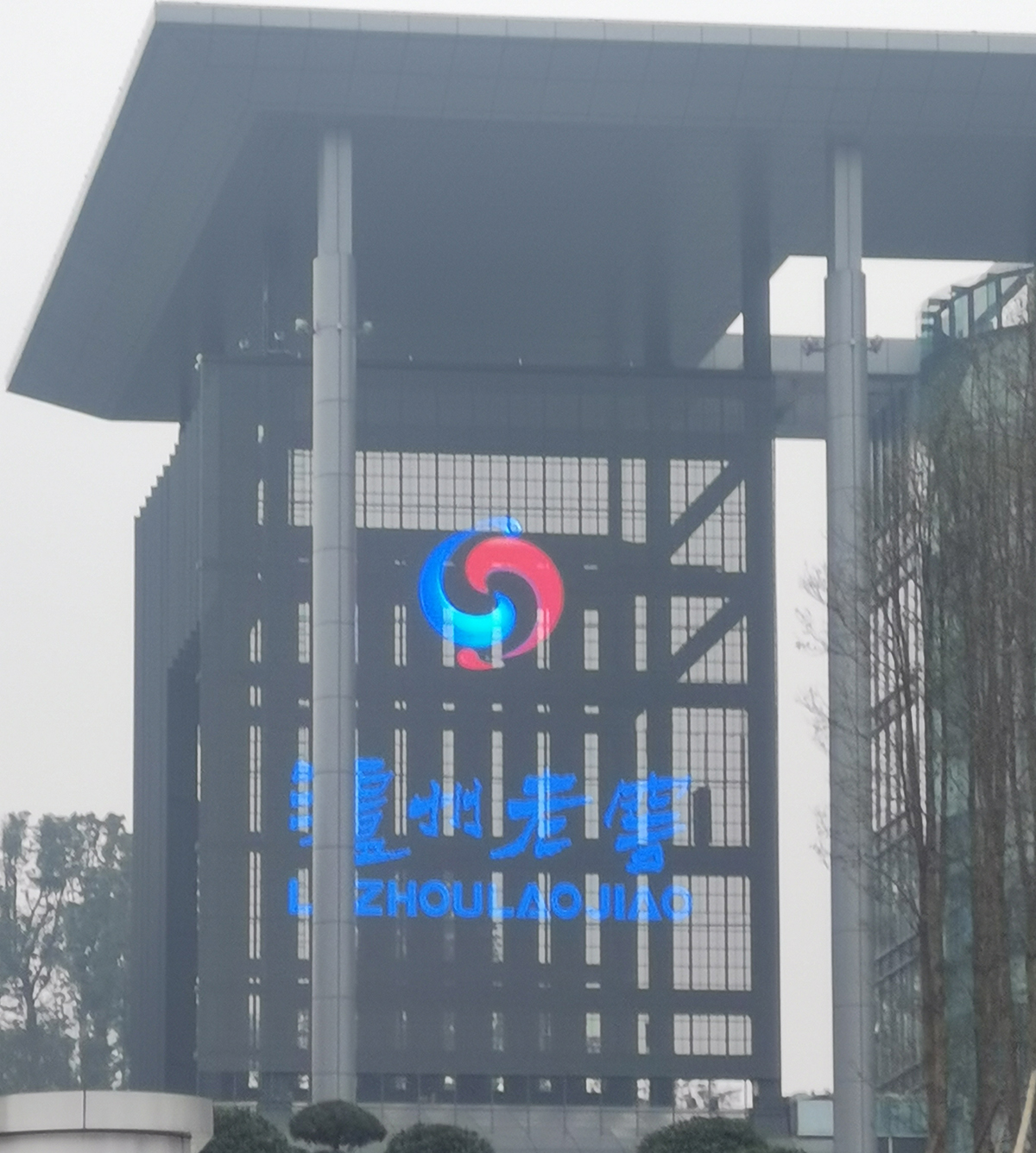

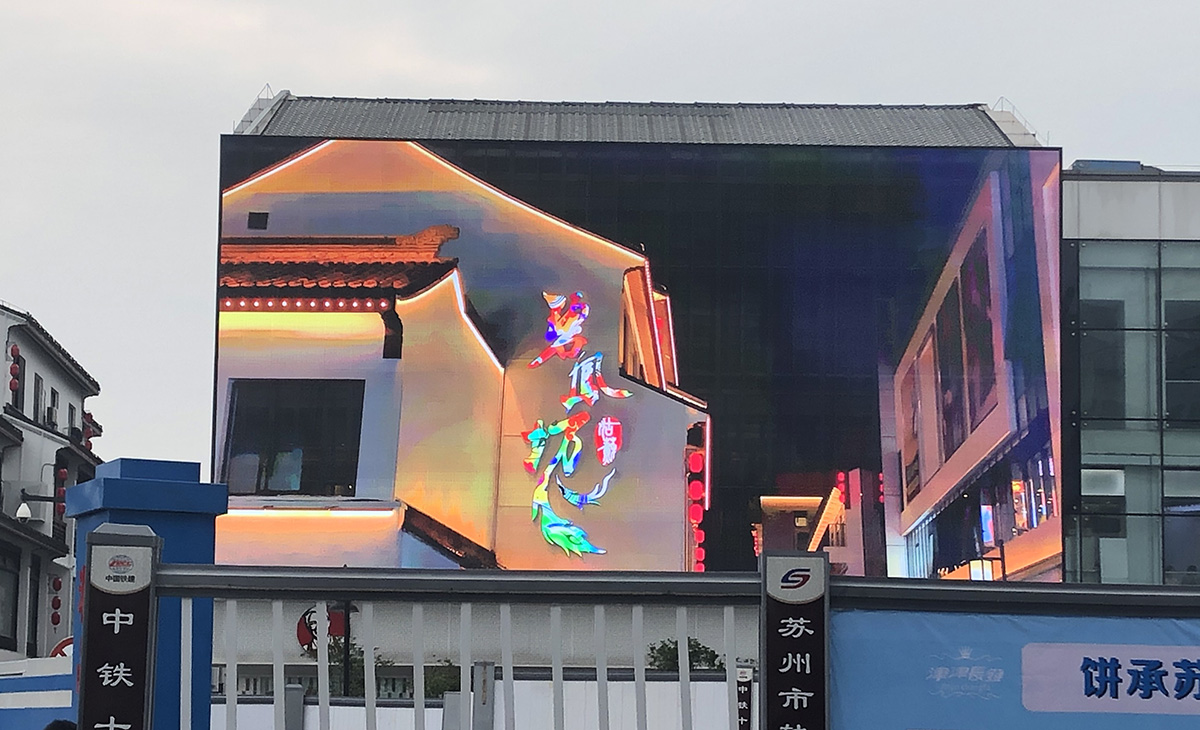

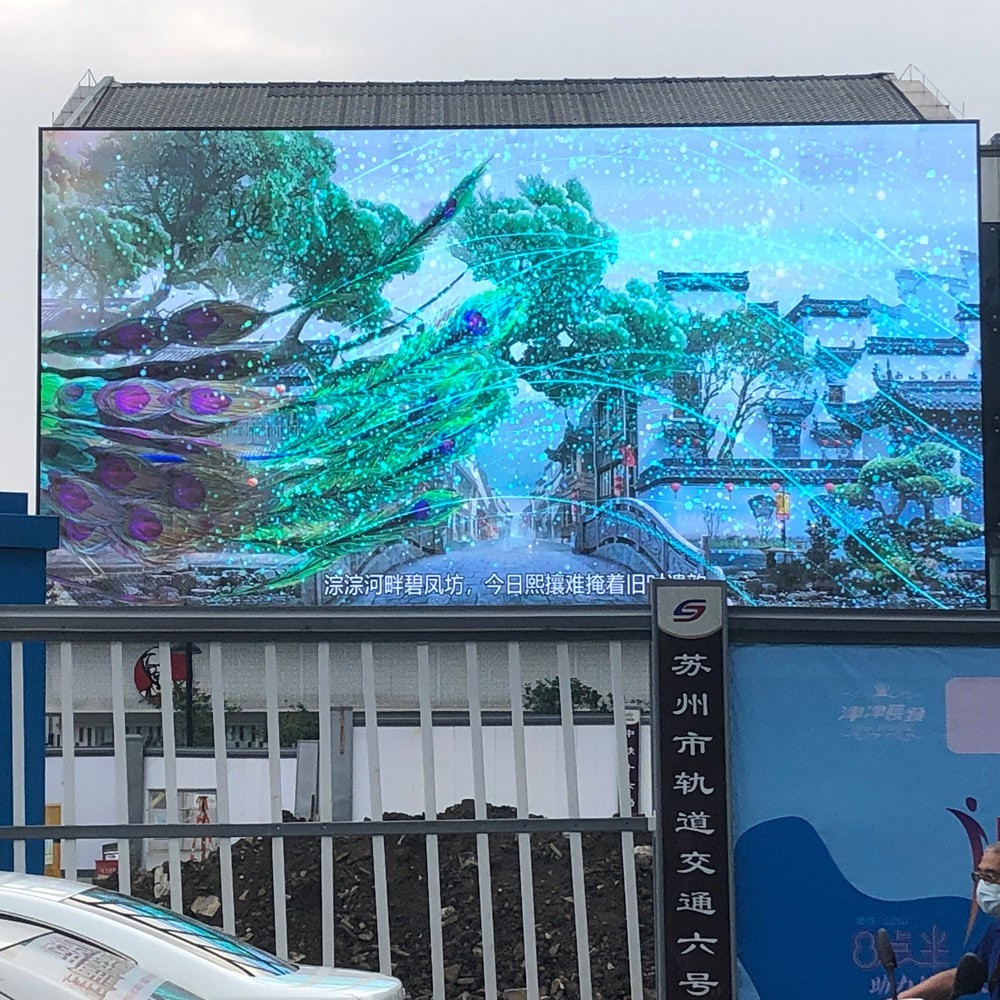

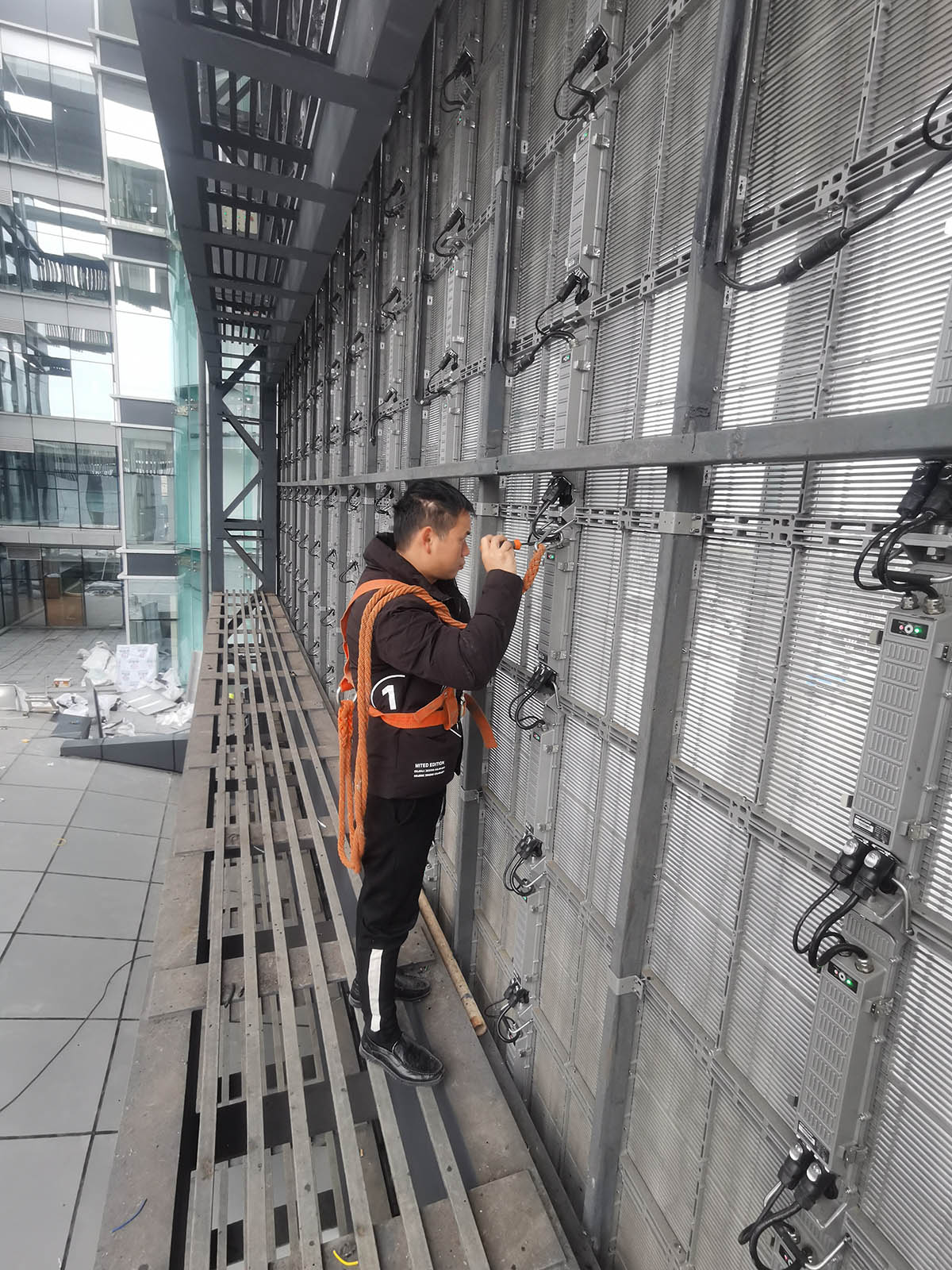

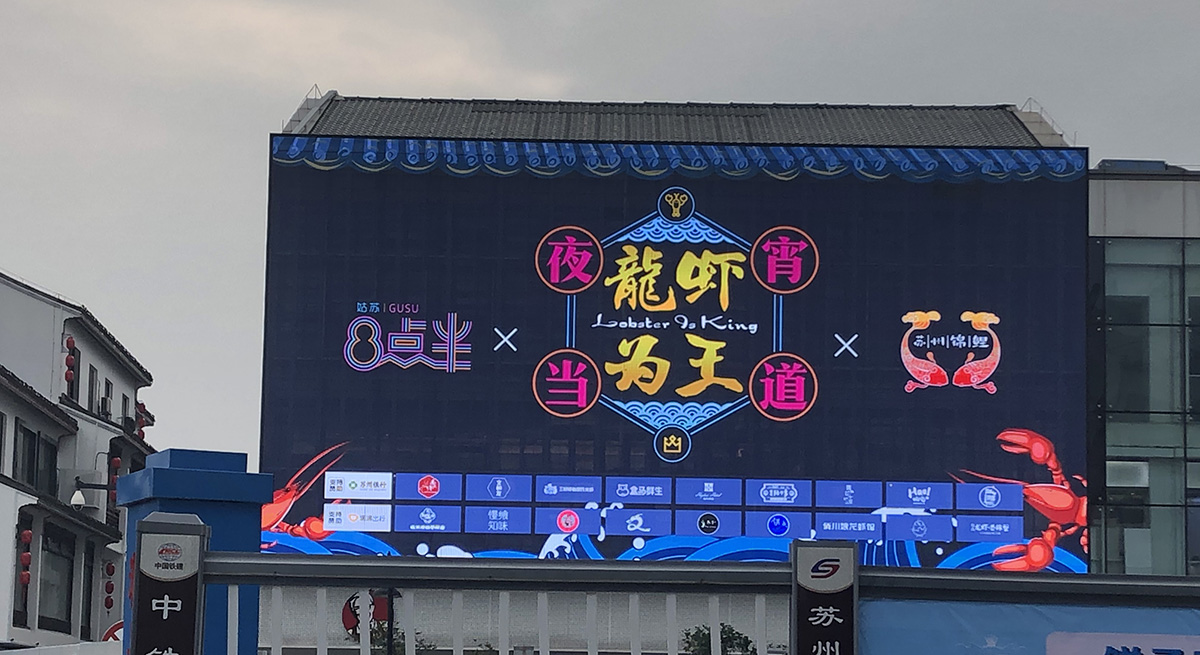

Project cases:

Outdoor Fixed Transparent LED Display screen.jpg



Outdoor Fixed Transparent LED Display screen.jpg



Outdoor Fixed Transparent LED Display screen.jpg


Outdoor Fixed Transparent LED Display screen.jpg



Outdoor Fixed Transparent LED Display screen.jpg
