Outdoor Rental Transparent LED Display

Module Size:250x500(mm)
Cabinet Size:500x1000(mm)
Material Science:Aluminium Die-casting

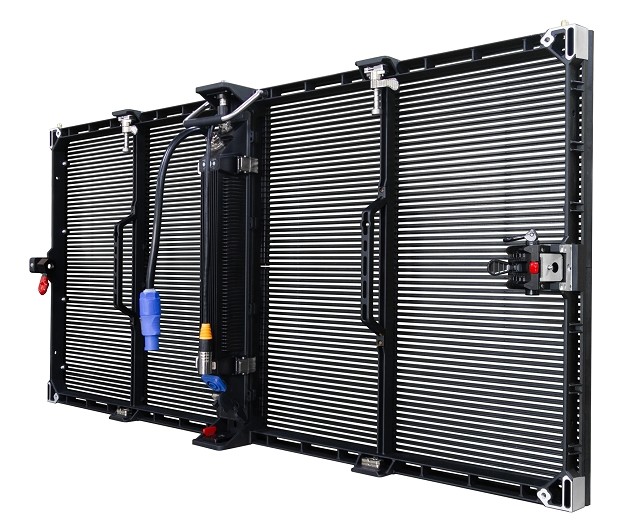

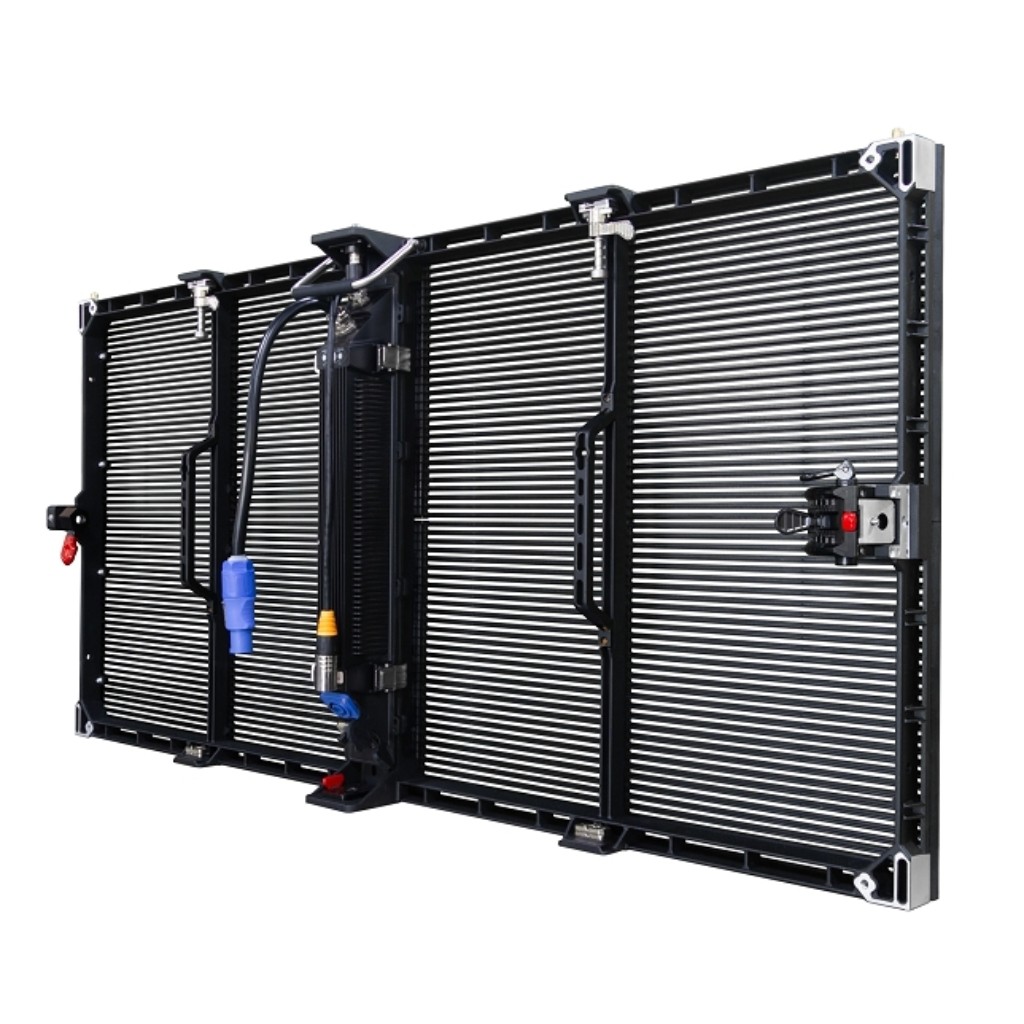

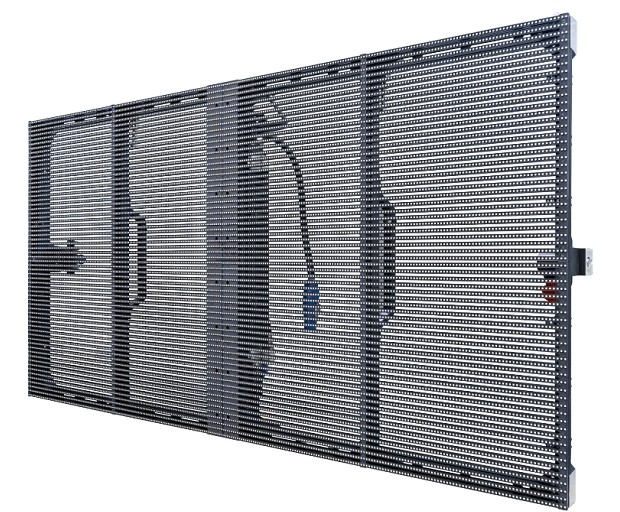

Outdoor rental transparent led display screen


Outdoor rental transparent led display screen.jpg

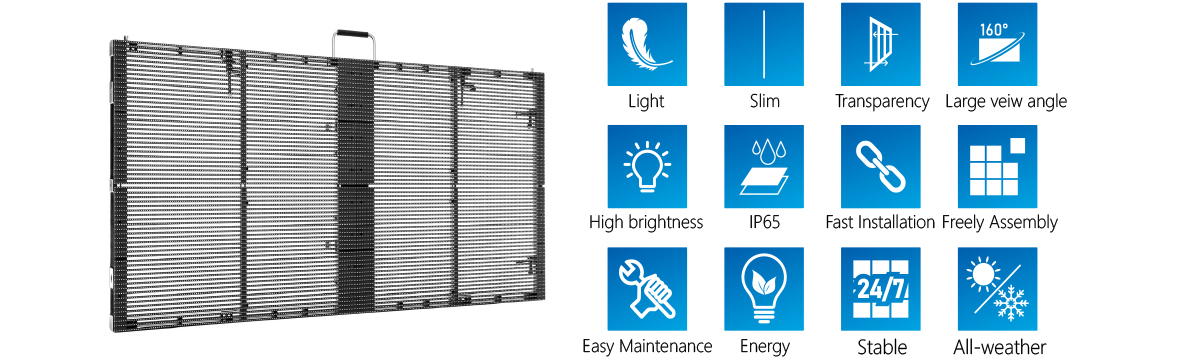

Product Feature:

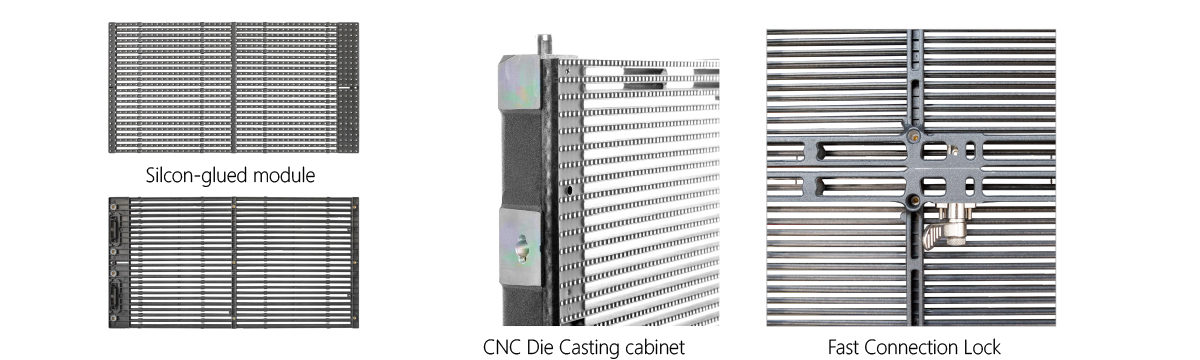

  Die casting cabinet, slim, strong and seamless assembling.

   High transparent rate, the highest can reach 71%.

   Slim cabinet, space saving; light weight, no need to change architectural structure,adapt to different installation place.

   Environmental Projection: no need air-con; Winds can go through the screen, low wind drag.

   Easy maintenance: fast replaced module, support front and rear service.

   Stacking, hanging and fixed installation are supported.

   The lamp & PCB are fully sealed by silicon, anti-dust and anti-collision, IP65, adapt to harsh weather.


Outdoor Rental Transparent Screen is sealed by silicon, Anti-UV, Anti-Dust and evading the led lens lowering phenomena. It is easily adaptable to intense temperatures and is moisture-proof and waterproof at the same time. It reduces the ageing speed & the screen can live for a long time.



Benefits

The commodity has the benefits of high translucency, elevated safety level, lightweight, simple establishment and much more. It could be utilised both ways in indoor as well as outdoor and can be rapidly compiled and dismantled to satisfy the wants of several stage phenomena.



1. Ultra-Transparent

The absorbent present in the screen is 60% -80%, with proper ventilation, and is translucent which does not influence the lighting and layer of sight.



2. Indoor establishment for an outside perspective

Simple to retain, safe, fewer authorization processes than outdoor publicity.



3. Custom-made is available

New Outdoor Rental LED Screen Display has all sorts of varieties. It is the best commodity which react according to the situation, to assure the absorbance of transparent LED presentation, absoluteness of display and viscosity.



4. Remarkable Optical Performance

The screen has ultra-high refresh rate IC and high integrity LED chip, with outstanding disparity, enormous viewing intersection, anti-glowing, and broad colour gamut. It convenes the remarkable optical performance.



5. Greater transparency and sharper support

Die-cast aluminium present in the screen rims with concave design that resemble the led smears which could give great accuracy and seamlessly assemble with little pressure.



6. Modular design

The screen is incorporated with module design, and also endorse a particular point of supervision.

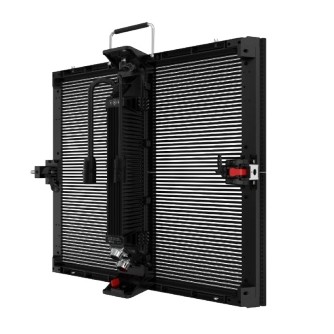

Outdoor Rental Transparent LED Display screen.jpg

Parameter:


Model

WLR3-7

WLR-5.2

WLR-10.4

WLR-15.6

Pixel Pitch(mm)

H:3.9 V:7.8

H:5.2 V:10.4

H:10.4 V:10.4

H:15.6 V:15.6

Transparency Rate

53%

58%

58%

80%

Resolution(dot/ m²)

32768

18432

9216

4096

Cabinet Resolution

256x128

192x96

96x96

64x64

Weight(Kg/ m²)

7.5

7.5

7.5

7.5

Refresh(Hz)

3840

3840

3840

3840

Driving IC

ICN2153PWM

MY9866

MY9866

ICN2038S

Scan Mode

1/8

1/4

1/2

Static

LED Type

SMD1921

SMD1921

SMD2727

SMD2727

Brightness(cd/ m²)

≥ 4500

≥ 5500

Lamp Life Span

≥ 100 000 hours

Pixel Compose

RGB all in one

Grey Scale

14bit

Max Power Consumption(W/ m²)

800

Ave. Power Consumption(W/ m²)

260

LED Control System

NOVA

Connection & Control

WiFi / DVI / HDMI / DP / USB/RJ45 / Remote Internet control

IP Level

IP65

Clean Ghosting

Yes

Input Power

AC100~240V 50/60Hz

Module Input Power

DC4.7~5V ±0.2V

Cabinet Size(mm)

1000x500x80

Cabinet Material

Die Casting

Maintenance

Front/ Rear Maintenance

Working Tempareture and humidity

Temperature : -10~40℃ ; Humidity: 10%-90%, non-condensing

Installation

Hanging (vertical 20pcs cabinet) 10 )/ Stacking / Fixed installation

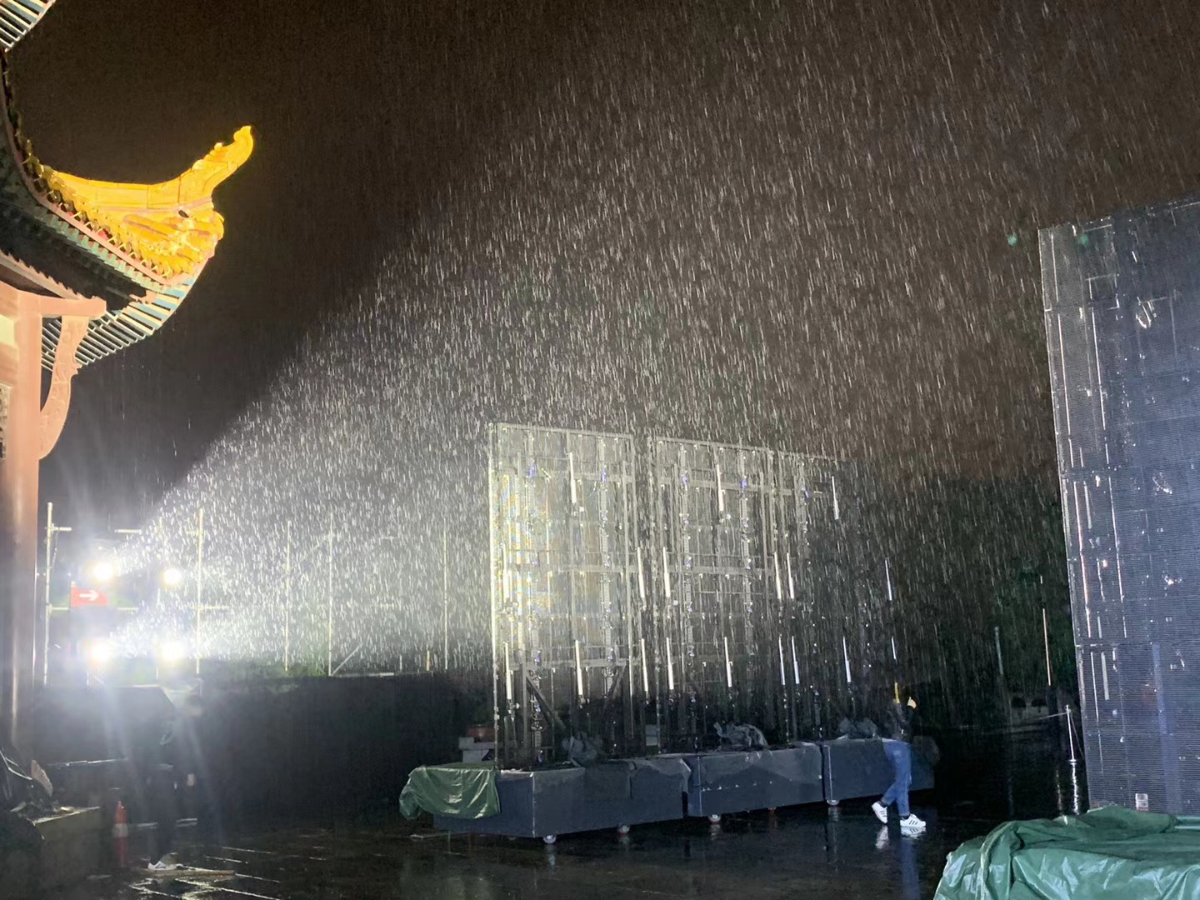

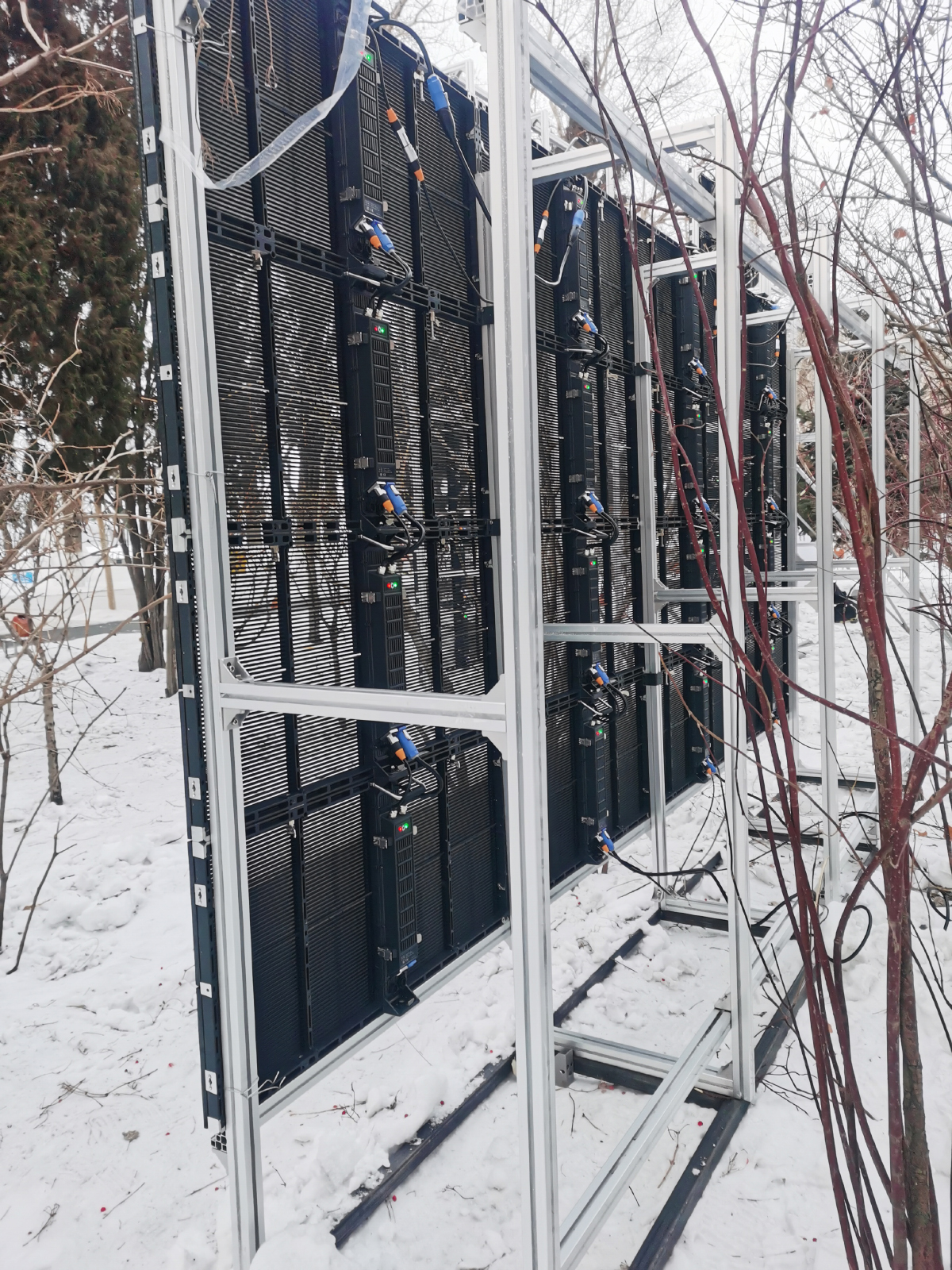

Waterproof Test


Outdoor rental transparent led display screen.jpg


Outdoor rental transparent led display screen.jpg

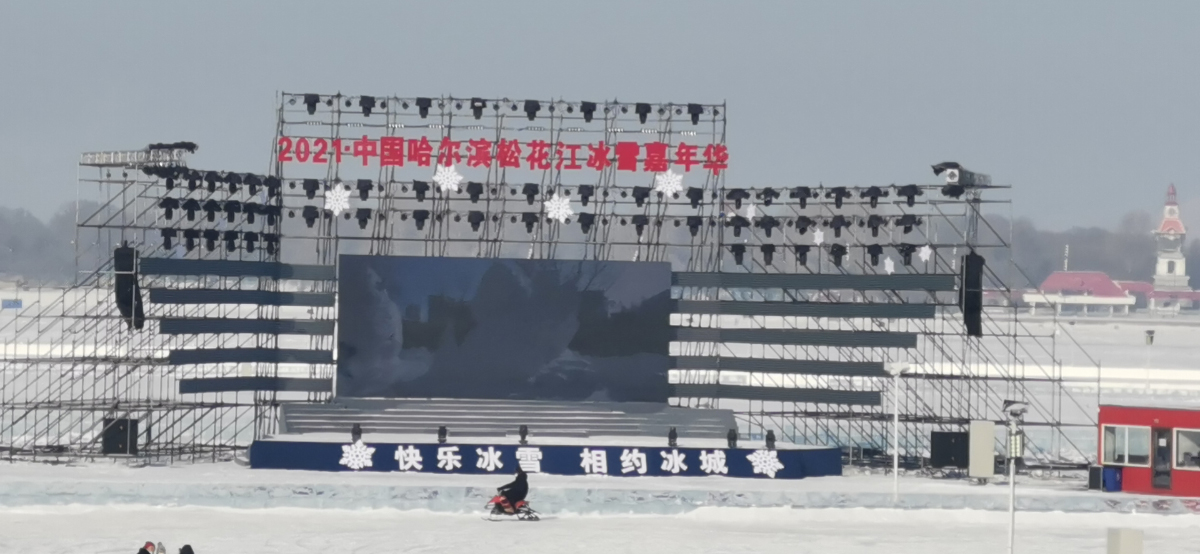

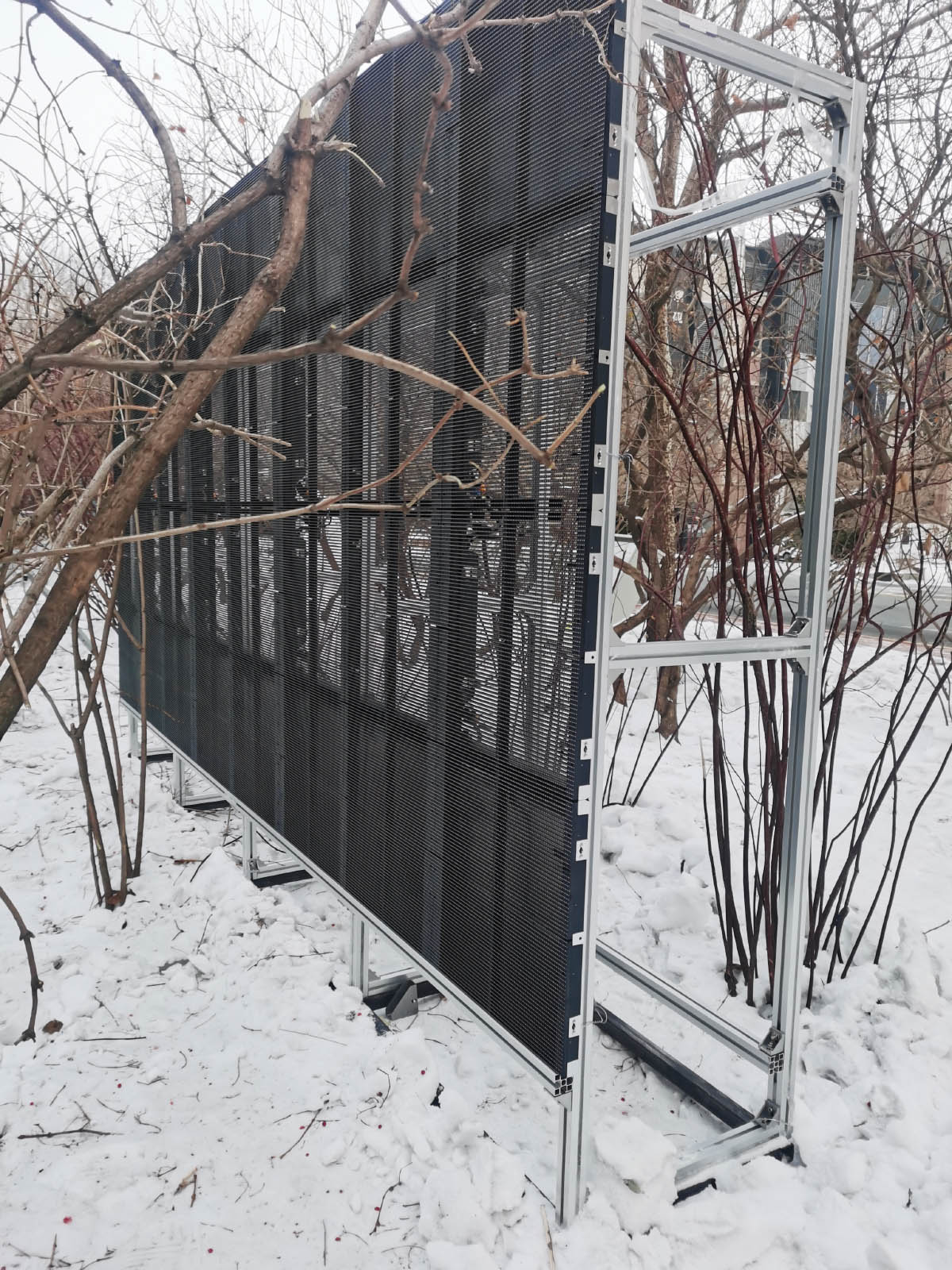

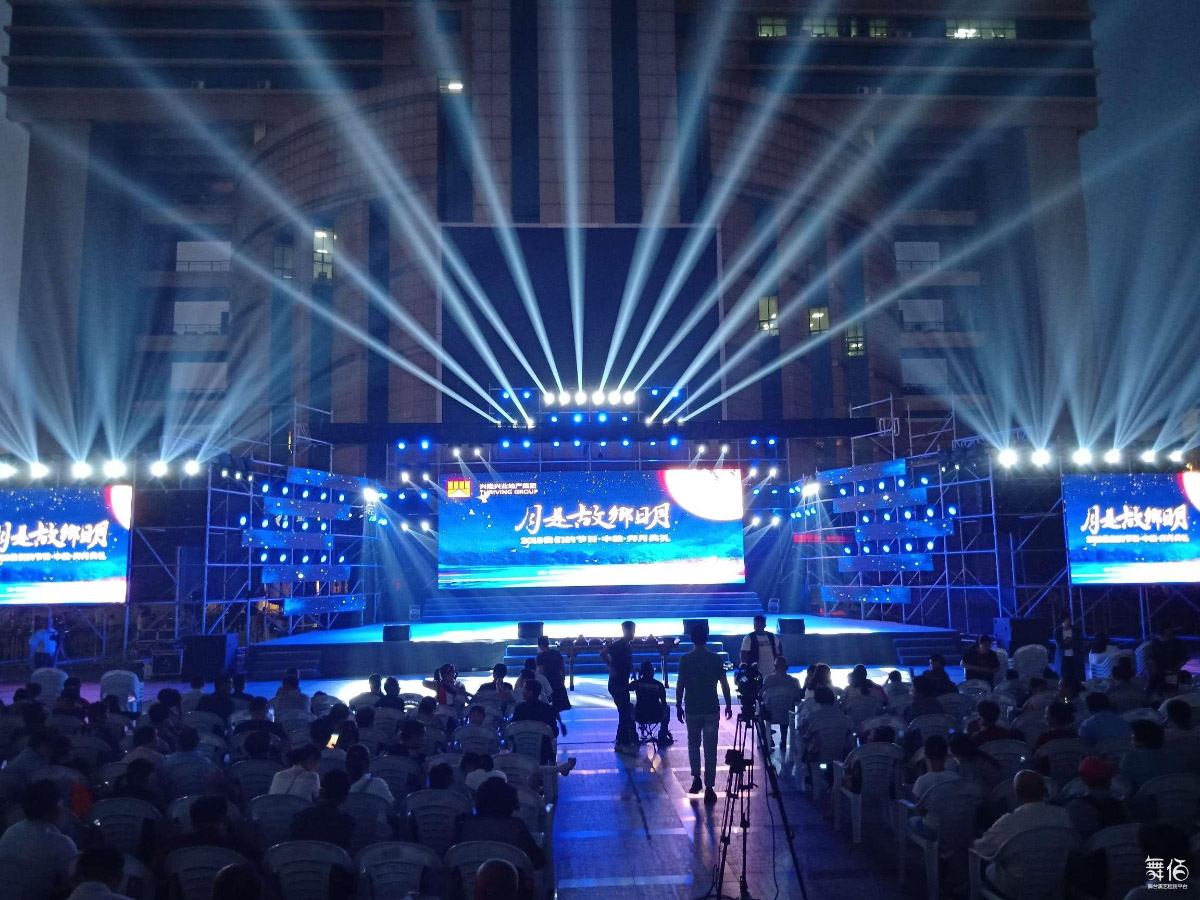

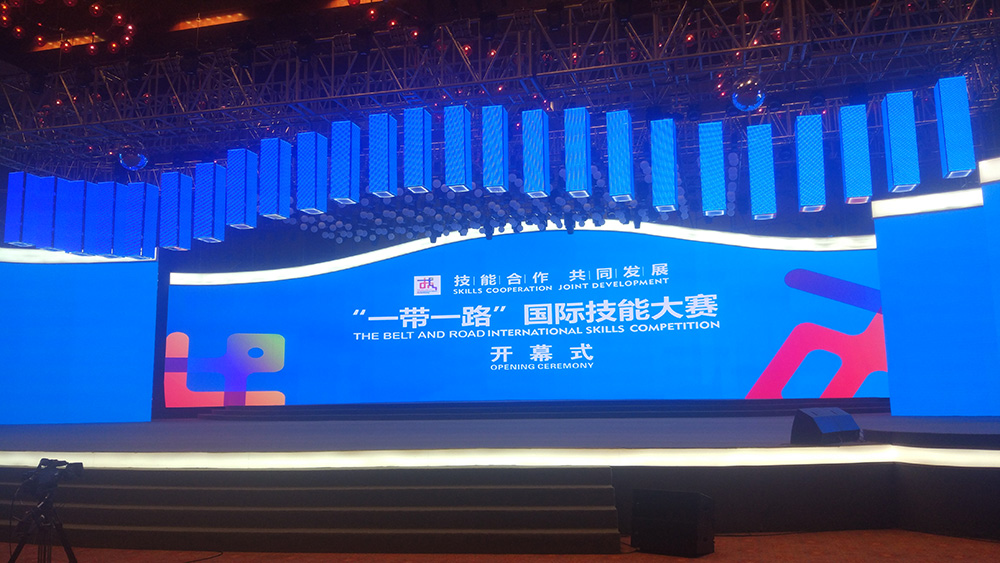

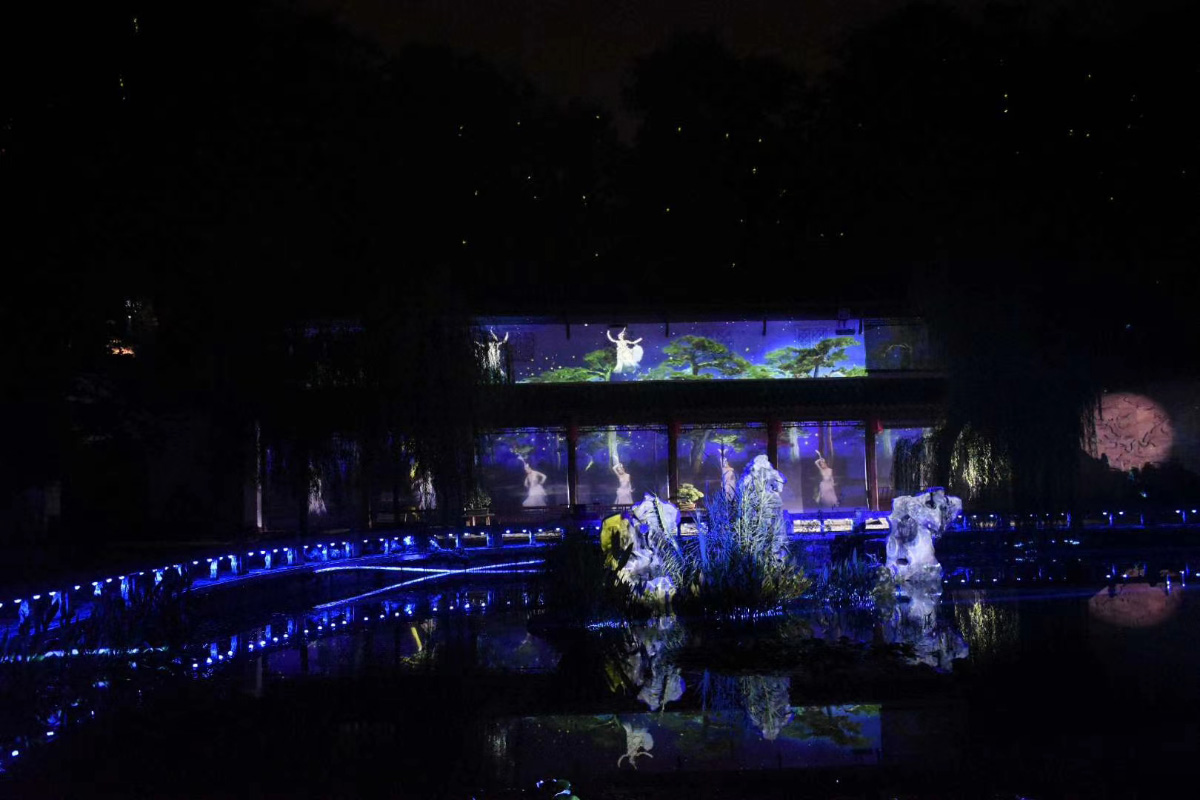

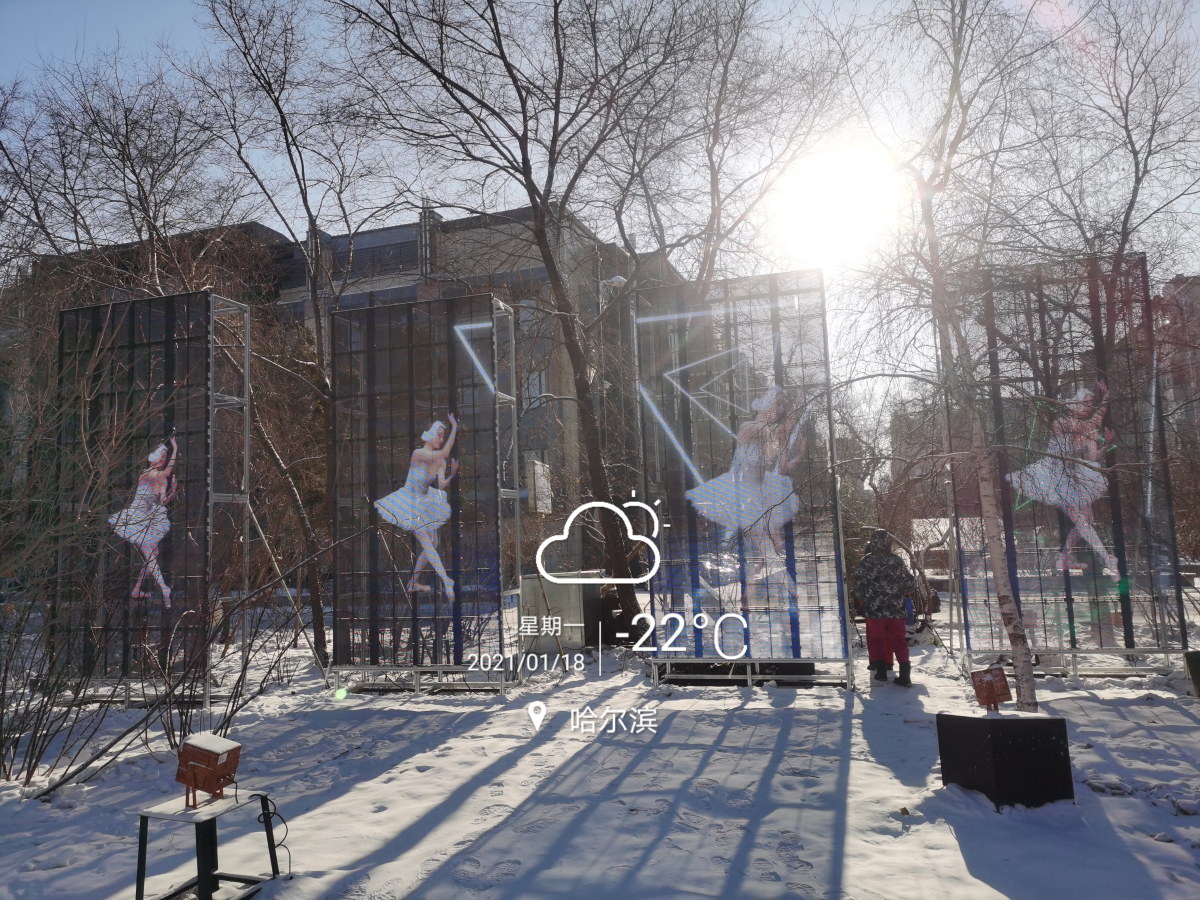

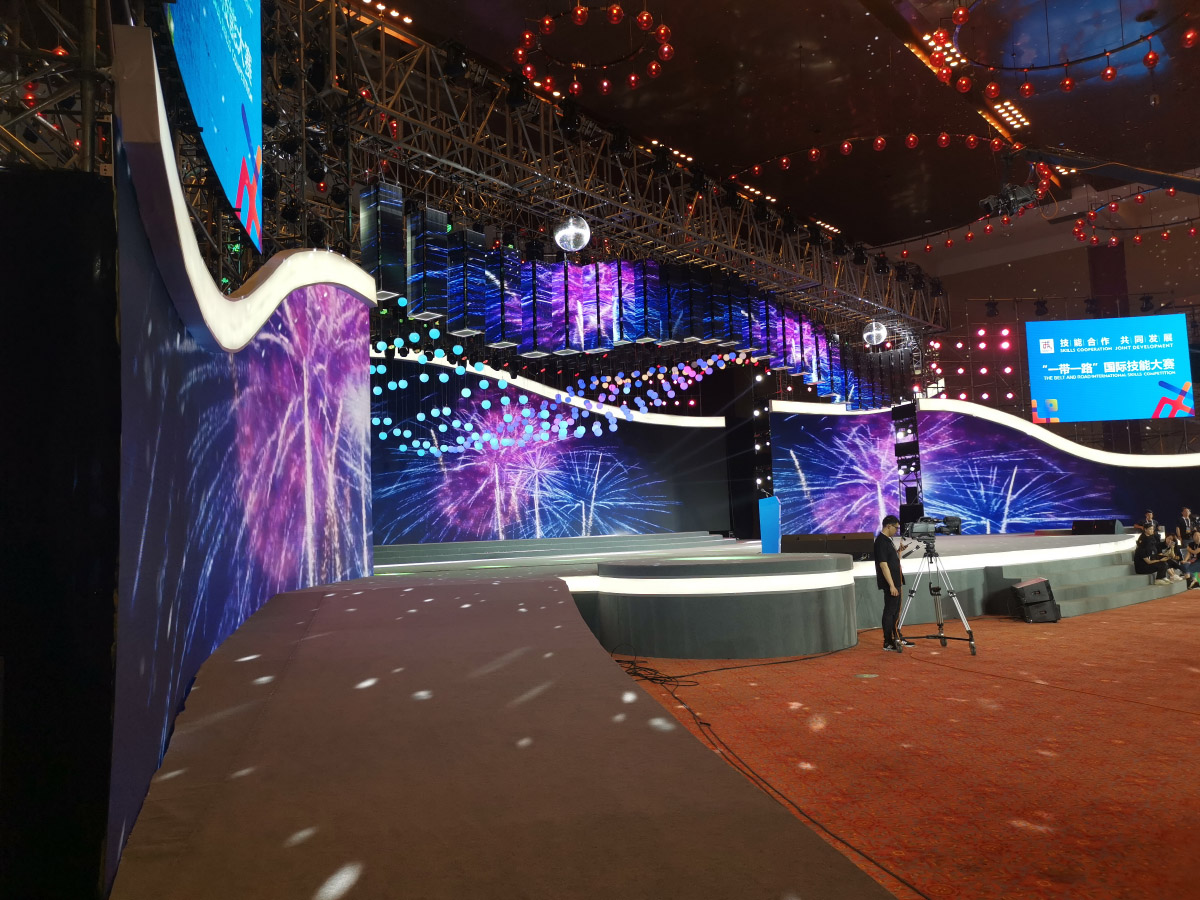

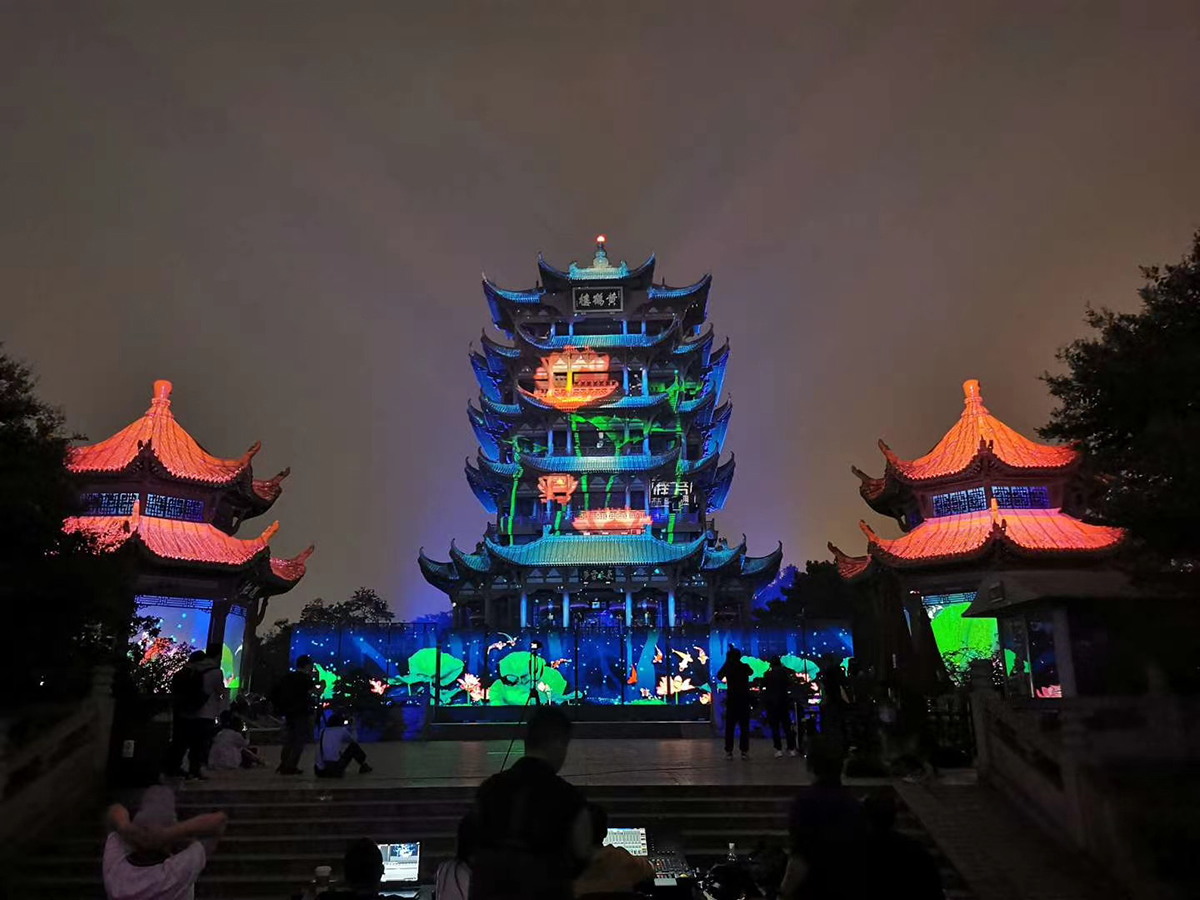

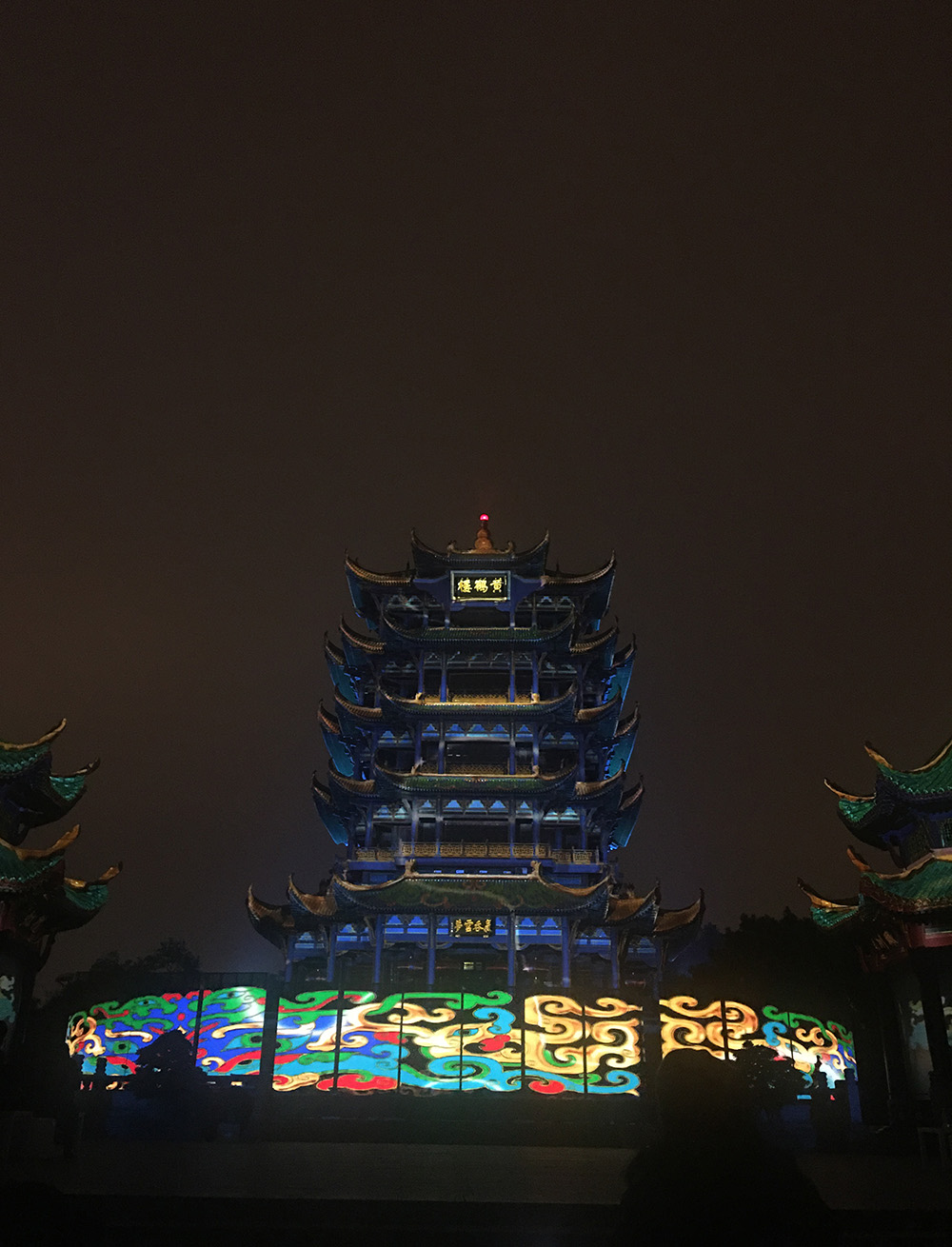

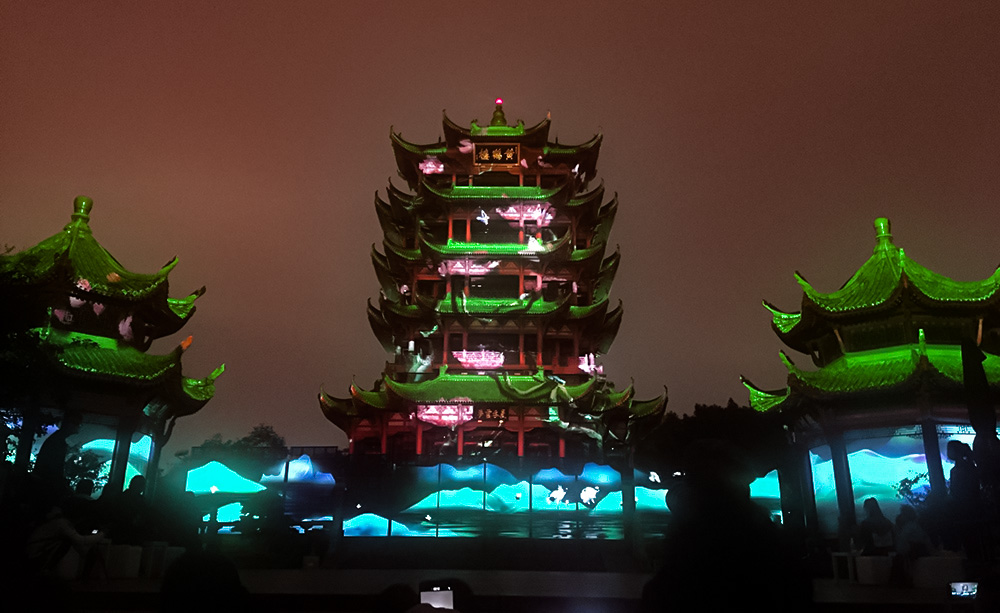

Project cases:


Outdoor Rental Transparent LED Display screen.jpg.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg


Outdoor Rental Transparent LED Display screen.jpg
