Indoor High Transparency Screen

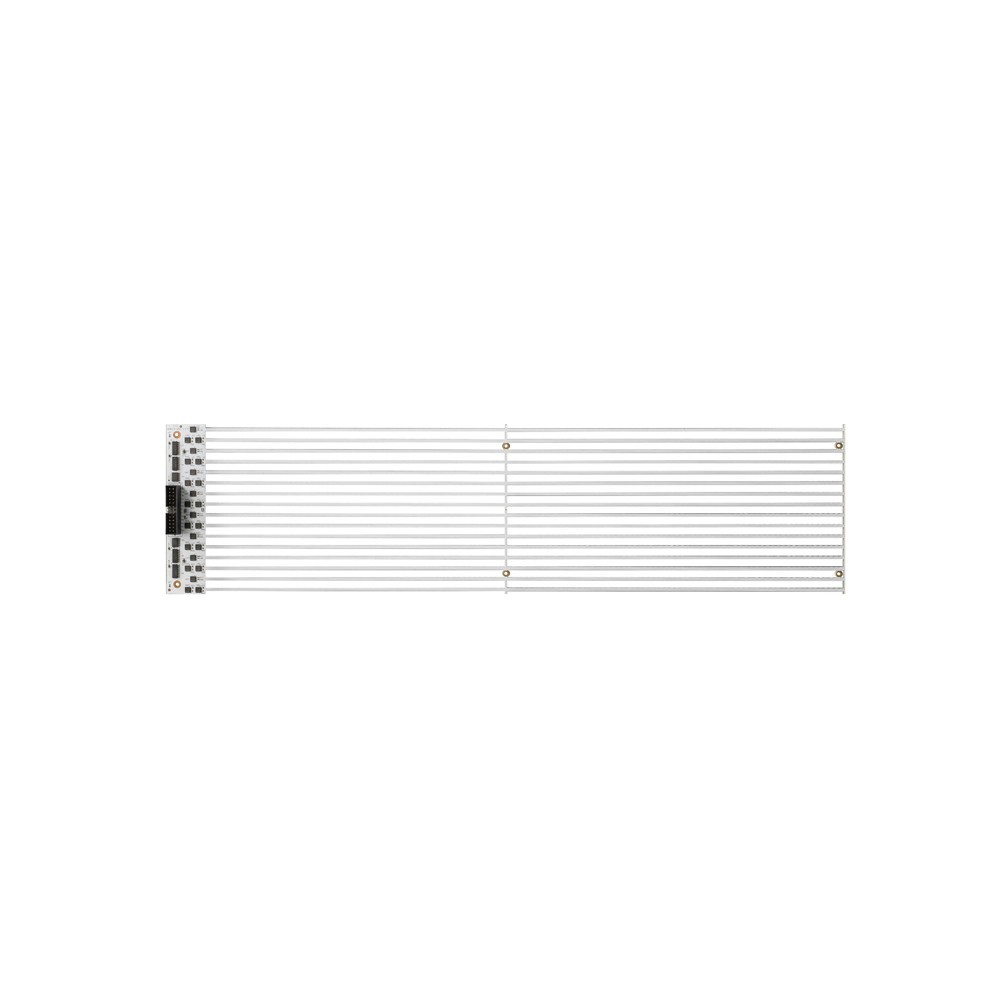

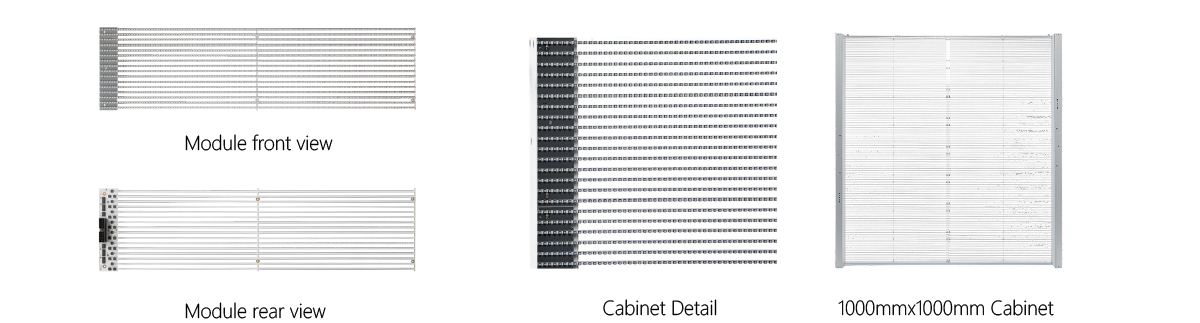

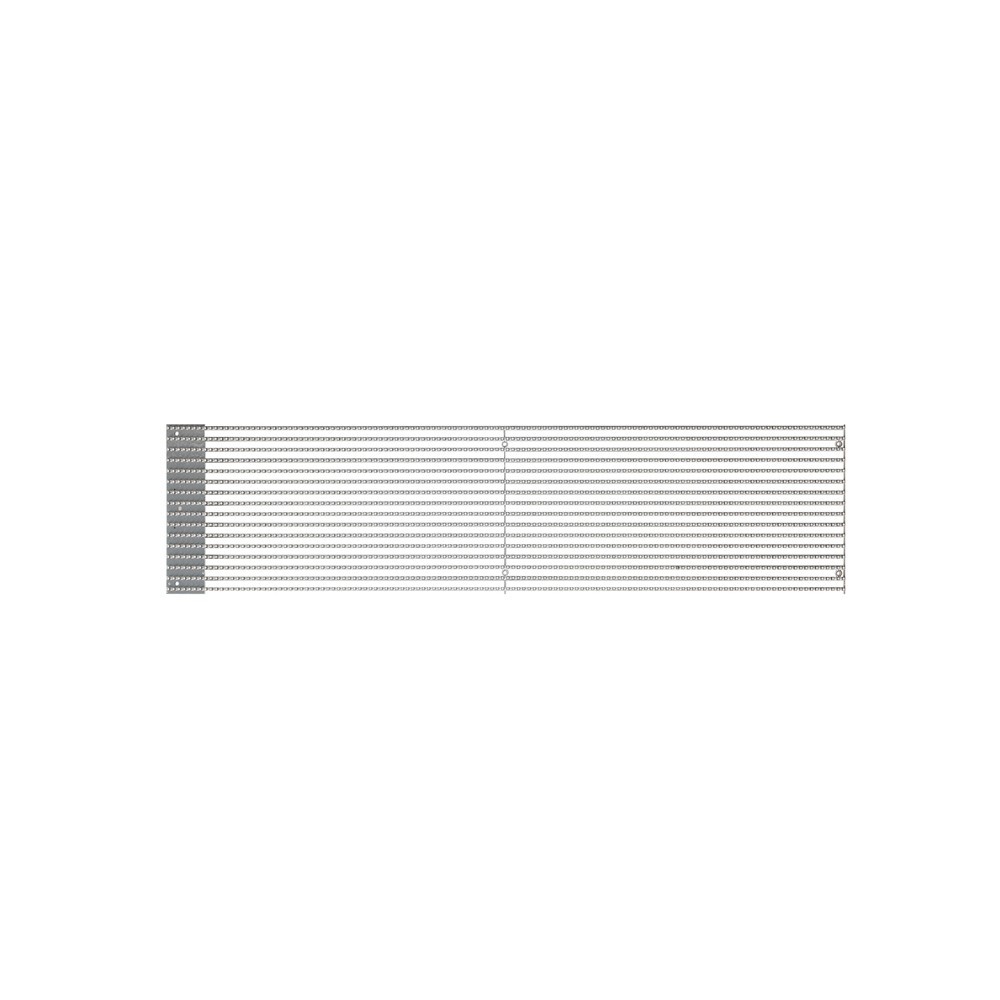

Module Size:500x125(mm)

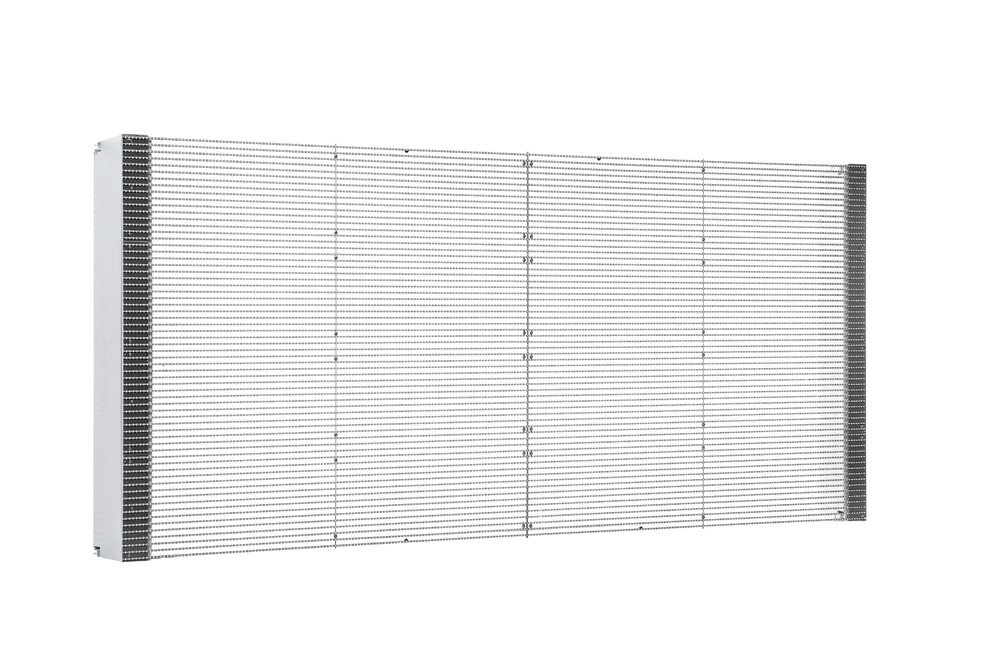

Caninet Size:1000x500(mm)
Material :Aluminium

Indoor High Transparent LED Screen


Indoor High Transparency Screen

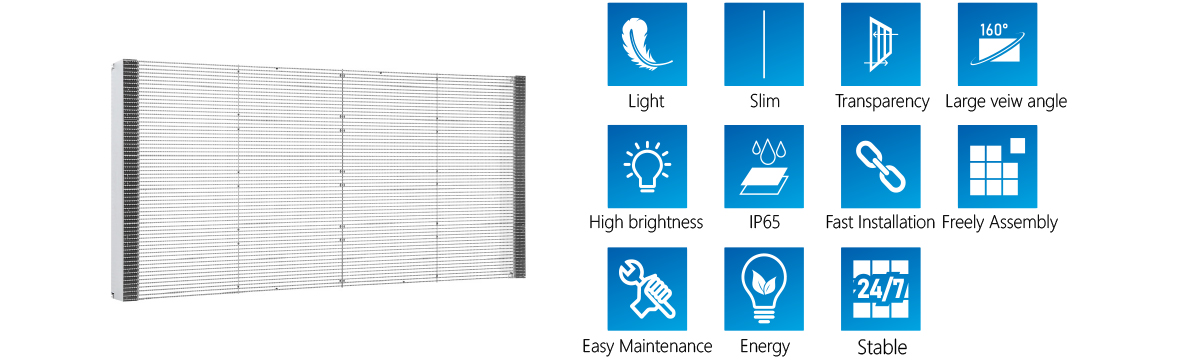

Product Feature:

   Transparent:80% transparency rate,30mm width power box

   Light: min. 5.5kg/sqm.

   Slim: 6mm thickness, space saving

   Environmental Projection: no need air-con

● Easy maintenance: fast replaced module, support front and rear service

● Stacking, hanging and fixed installation are supported.


The Indoor High Transparent Screen is a new gazing luminary in led display expanse with extensive benefits. This screen is remarkably slim and minor weight without any steel configuration frame. One can inaugurate it like a window-shade.

It is an excellent commodity which well beautifies modern glass construction and also broadens the building purpose for adverts. It will stay in trend for the following five years. Here is a brief introduction for a better understanding.



1. Outstanding transparency

Outstanding product layout Indoor LED Display Screen is 70%-90% translucent. It peeks like window-shades when you arrive close.

2. Prompt Maintenance

Indoor High Transparent displays are reliable and rich in color. Just bring out a single module; you can effortlessly shift the inadequate parts  within 10mins


3. Humanized establishment

This transparent led signage indoor display is light as 10kg/sqm, you can easily hanging or stacking or mount it on wall.



4. A broad range of applications

Broad Application for massive construction glass wall, shopping malls, theater background, LED display, casino, festivity, performance, ceremony, chain stores, clothing mart, even in Bank window, etc. It is inducted inside but significantly increase illumination for the exterior.




Indoor High Transparency Screen.jpg


Parameter:

Model

WLH-3.7

Pixel Pitch(mm)

H:3.9 V:7.8

Transparency Rate

75%

Resolution(dot/ m²)

32768

Cabinet Resolution

256x64

Weight(Kg/ m²)

5.5/12

Refresh(Hz)

3840

Driving IC

ICN2153

Scan Mode

1/16

LED Type

SMD1921

Brightness(cd/ m²)

≥ 2500

Lamp Life Span

≥ 100 000 hours

Pixel Compose

RGB all in one

Grey Scale

14bit

Max Power Consumption(W/ m²)

400

Ave. Power Consumption(W/ m²)

130

LED Control System

NOVA

Connection & Control

WiFi / DVI / HDMI / DP / USB/RJ45 / Remote Internet control

IP Level

IP30

Clean Ghosting

Yes

Input Power

AC100~240V 50/60Hz

Module Input Power

DC4.7~5V ±0.2V

Cabinet Size(mm)

1000x500x80

Cabinet Material

Aluminum Profile

Maintenance

Front Maintenance

Working Tempareture and

humidity

Temperature : -10~40℃ ; Humidity: 10%-90%, non-condensing

Installation

Hanging (vertical 20pcs cabinet) 10 )/ Stacking / Fixed installation )

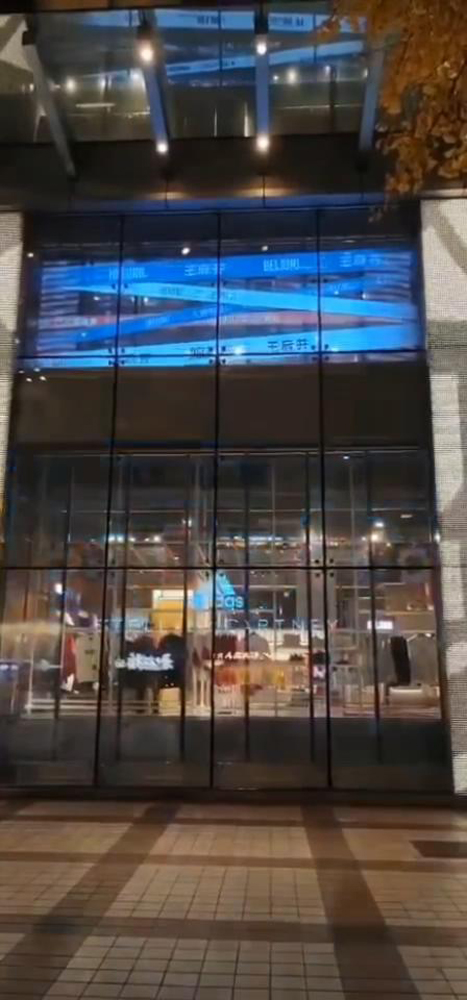

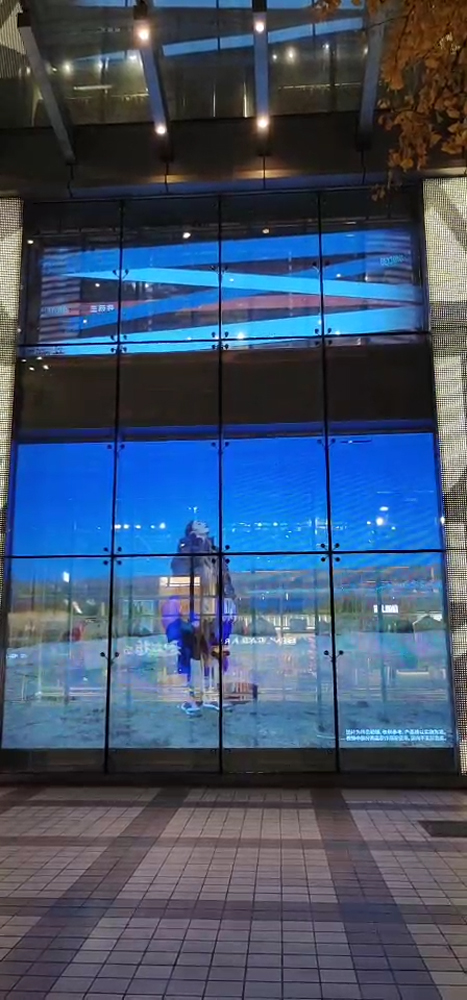

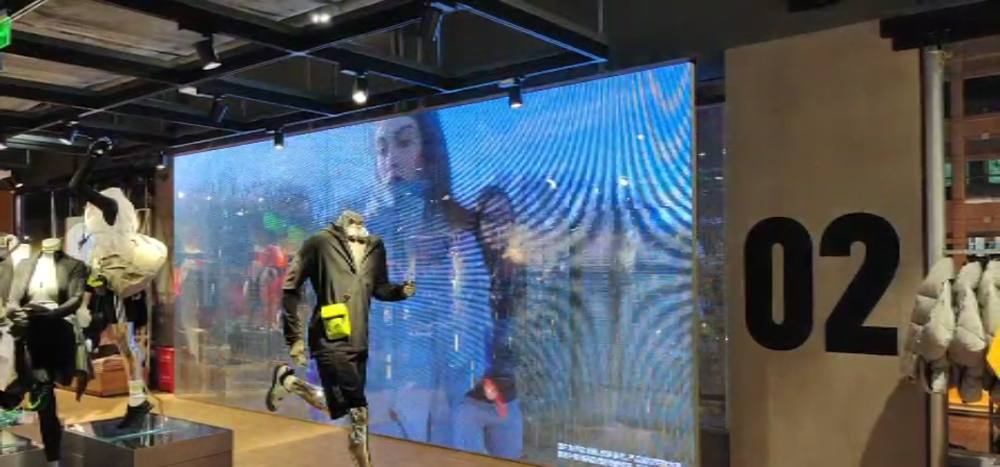

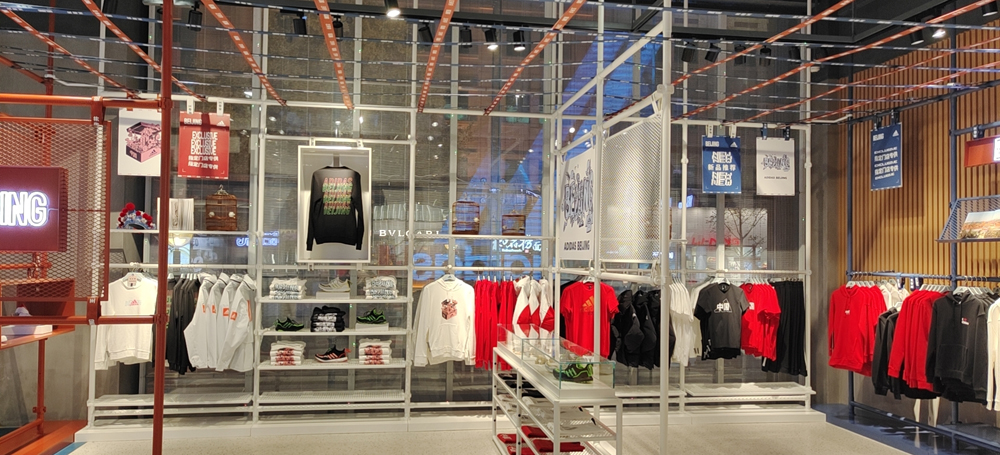

Project cases:

Indoor High Transparency Screen.jpg


Indoor High Transparency Screen


Indoor High Transparency Screen.jpg


Indoor High Transparency Screen.jpg
