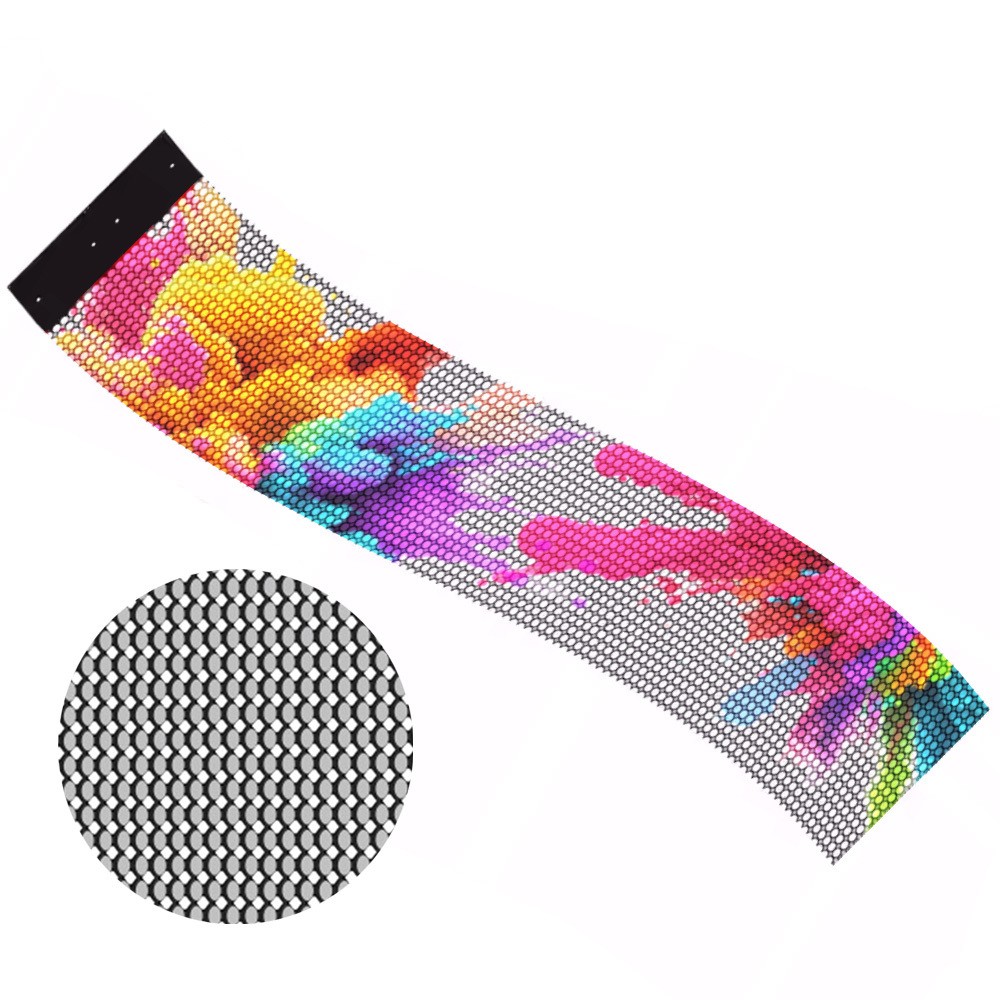

Transparent Mesh LED Display
Maximize your building's advertising potential with Wanliang Transparent Mesh LED Display.
Featuring over 50%-80% transparency, ultra-lightweight design for easy installation, and IP67 weather resistance. Perfect for glass curtains and architectural facades. Inquire for customized pixel pitch and sizes!
High Transparency
The high transparency of the film screen will not affect the indoor and outdoor lighting and will not affect the original design.

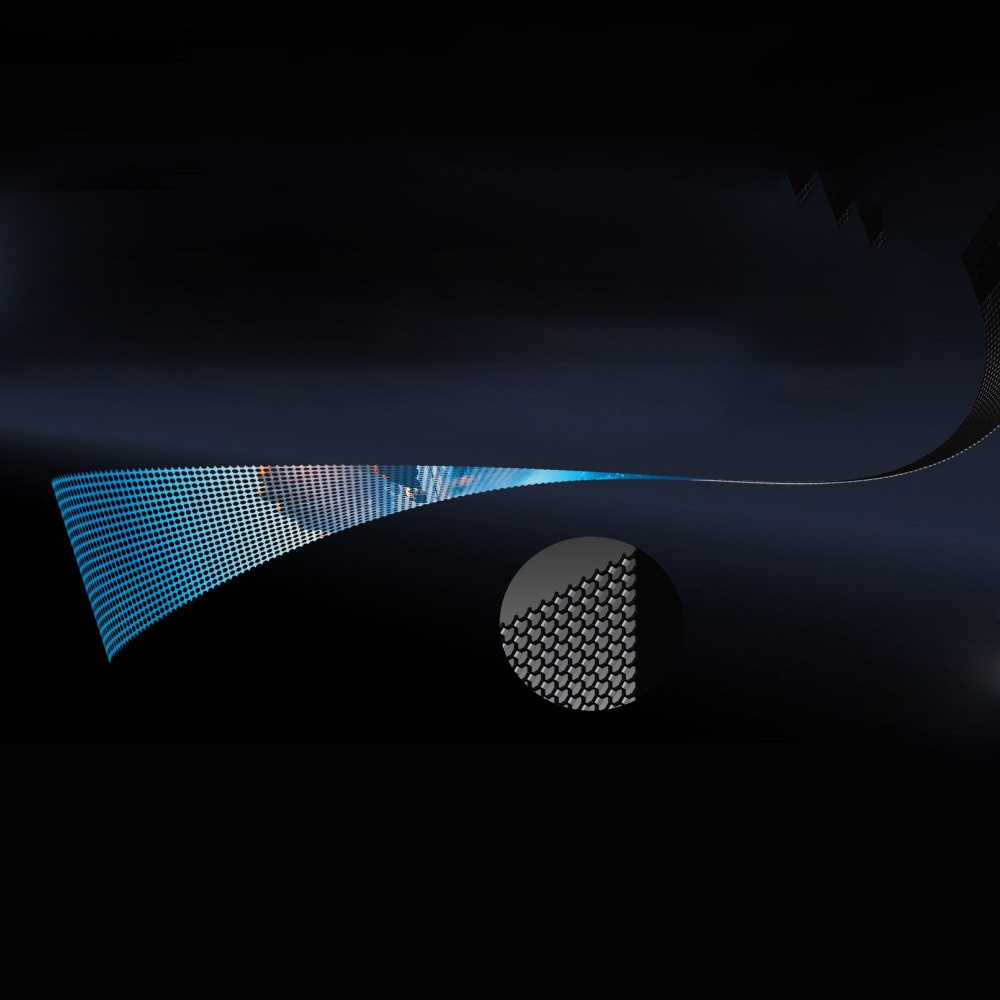

Super Thin & Light
As thin as a wallpaper with a thickness of only 3mm and a weight of up to 3kg/㎡.

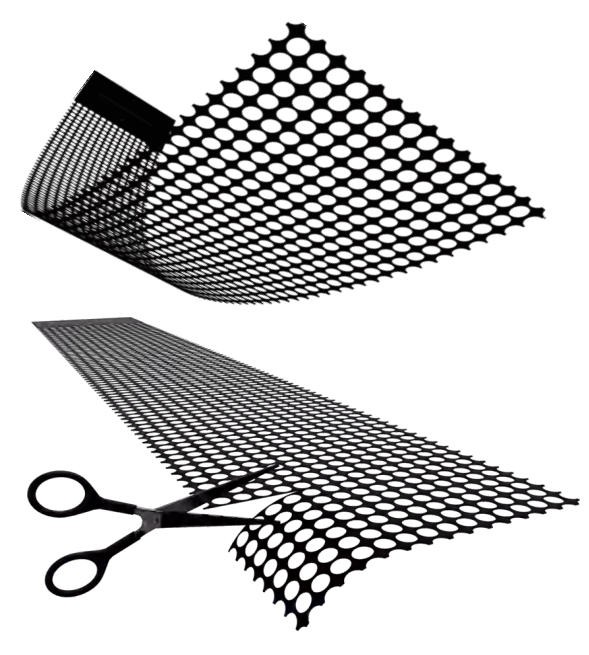

Cuttable
Support arbitrary cutting, not limited by size and shape, to meet different requirements to meet the size of more creative display.

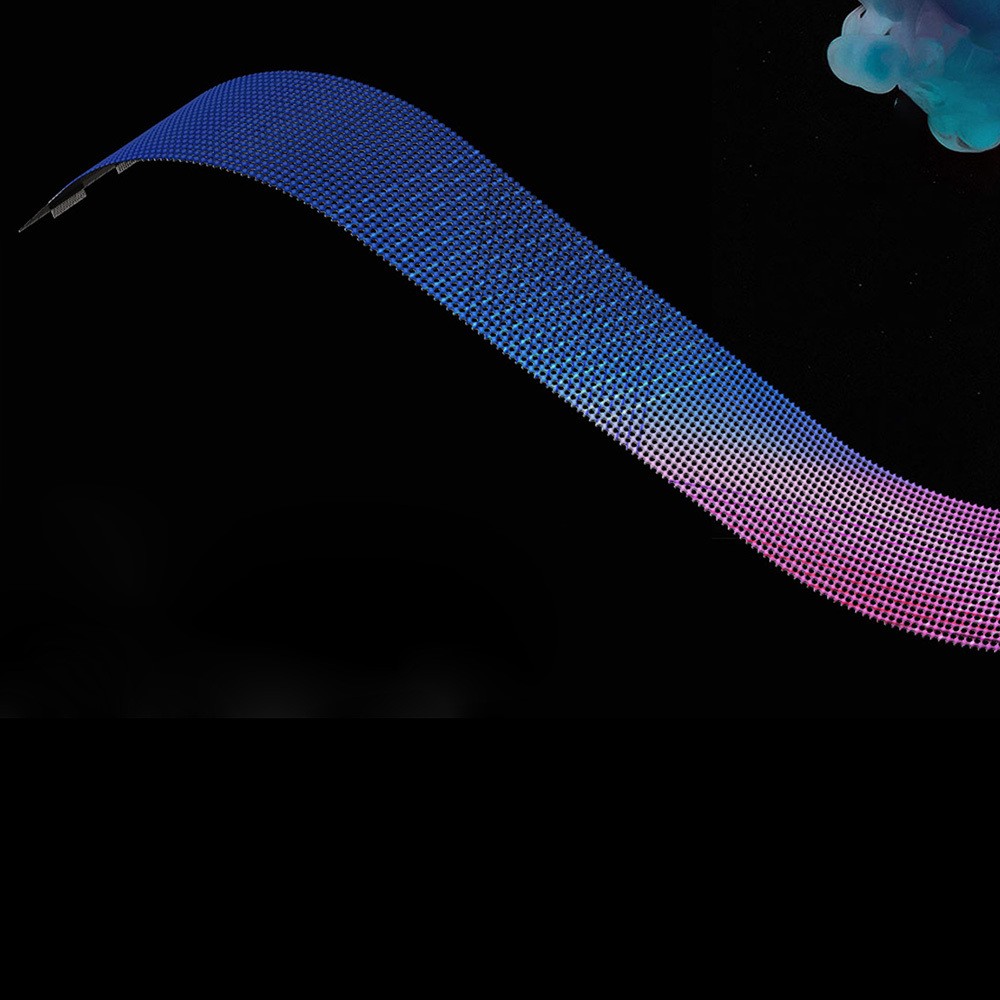

Bendable
Film screen can bend freely, can meet the design needs of different venues.
Easy Installation
Simple and fast. Simply stick the transparent mesh led on the glass to complete the installation.
Wide Viewing Angle
160° for each angle, covering people in a larger area and attracts people and traffic in a wider area.
Specification
| Item | M3 Glass mount | M6 Glass mount |
|
| Pixel Pitch(mm) | 3.91*3.91mm | 3.91*7.82mm |
|
| Perceptual Transparency | 90% | 95% |
| Pixel Density(dot/m²) | 65536 | 32768 |
|
| Cabinet Size(mm | 1000x2501500x250 | 1000x250、1500x250 |
| Cabinet Resolution(dot) | 256x6484x64 | 256x32\384x32 |
|
| Weight(Kg/m²) | 6 | 6 |
| brightness(cd/m²) | ≥5000 | ≥5000 |
| Package Form | Light Driver Integrated Package |
| Scanning Method | Single Point Single Control,Static Drive |
|
| Lamp Working Life | ≥10million Hours | ≥10million Hours |
|
| Gray Scale | 65536 | 65536 |
| Maximum Power Consumption(W/m²) | 800 | 800 |
| Average Power Consumption(W/m²) | 200 | 200 |
| LED Control System | Same/Asynchronous | Same/Asynchronous |
| Input Voltage | AC100~240V50/60Hz | AC100~240V50/60Hz |
| Module Working Voltage | DC4.2V±0.2V | DC4.2V±0.2V |
